Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back bolster from the vehicle if equipped with split/folding rear seat back. Refer to SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING .
  2. Remove the rear seat back from the vehicle if equipped with a stationary rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  3. Remove the lock pillar lower trim panel retainer (2).
  4. Remove the lock pillar lower trim panel (1) by disengaging the tabs from the clips.

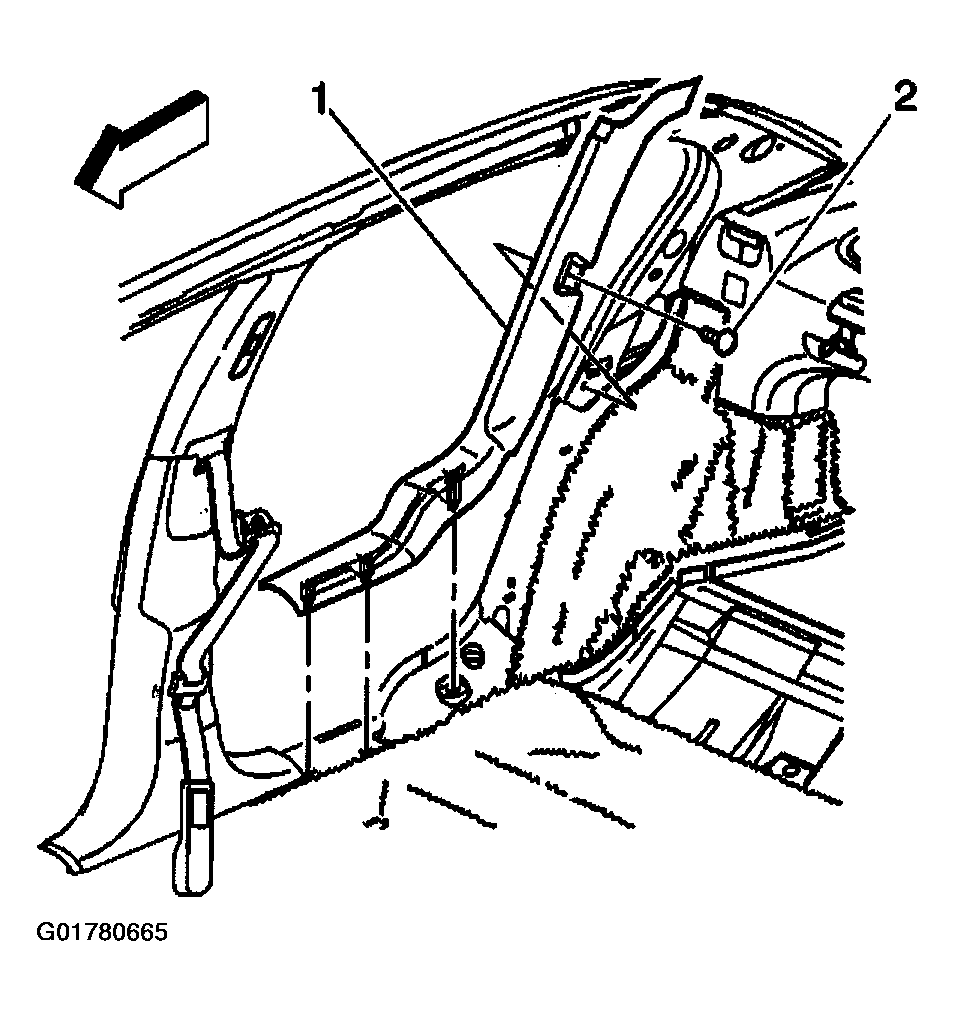

    Fig 1: Removing Body Lock Pillar Trim
    G01780665Courtesy of GENERAL MOTORS CORP.
