Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pillar lower trim panel (1).
    1. 1.1. Align and engage the pillar lower trim panel tabs to the clips.
    2. 1.2. Apply pressure to the pillar lower trim panel (1) in order to fully engage the tabs.
  2. Install the lock pillar lower trim panel retainer (2).
  3. Install the rear seat back bolster to the vehicle if equipped with split/folding rear seat back. Refer to SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING .
  4. Install the rear seat back to the vehicle if equipped with a stationary rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

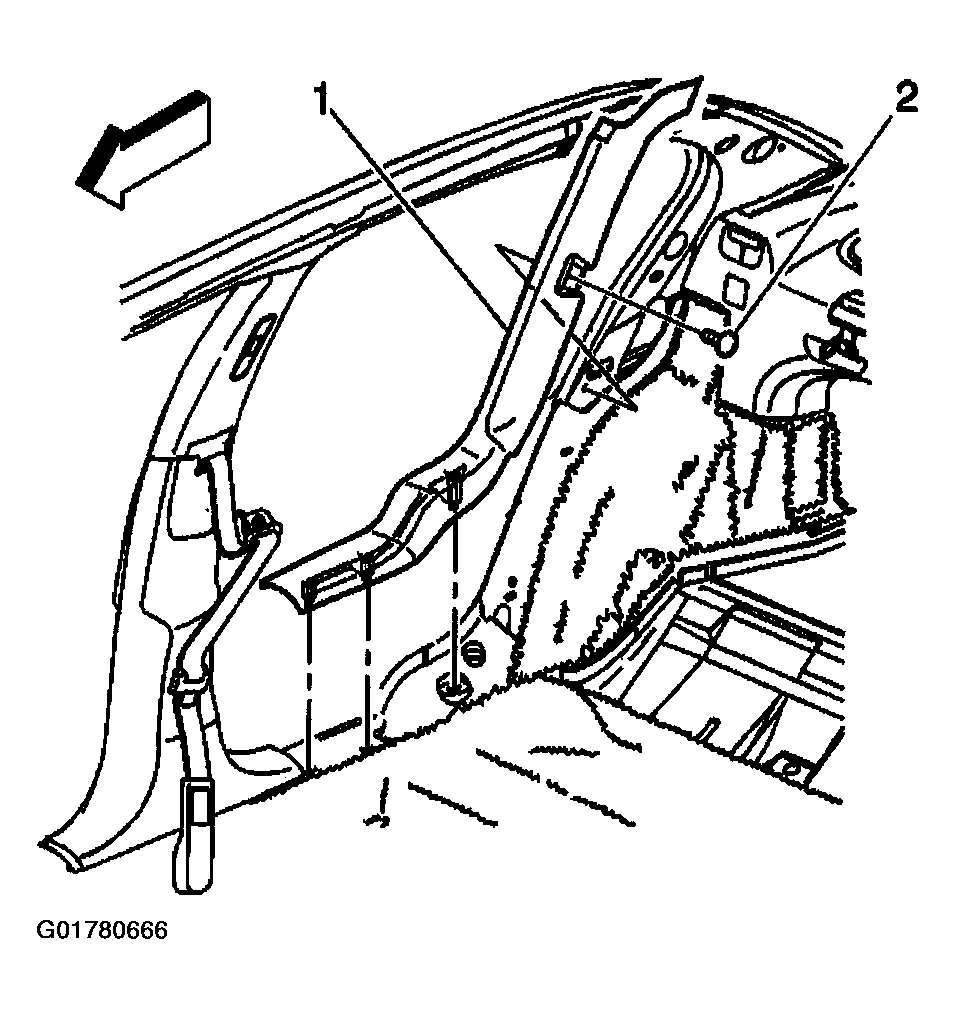

    Fig 1: Installing Body Lock Pillar Trim
    G01780666Courtesy of GENERAL MOTORS CORP.
