Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center pillar lower trim panel. Refer to Trim Panel Replacement - Lower Center Pillar  .
  2. Remove the front seat shoulder belt guide cover.
  3. Remove the front seat shoulder belt guide bolt.

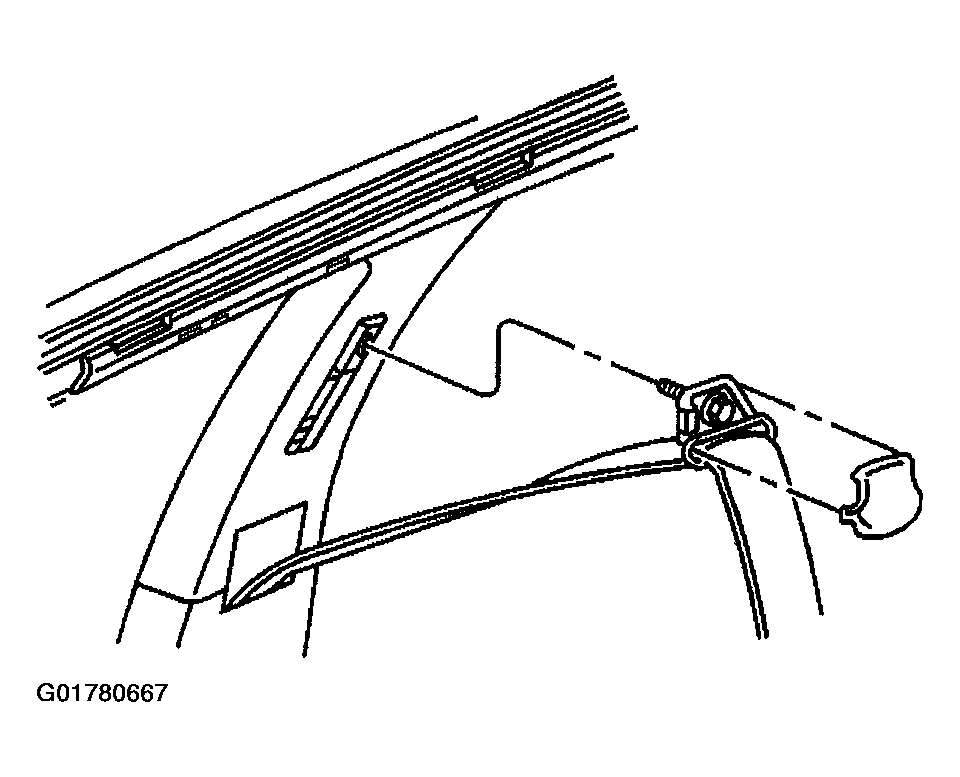

    Fig 1: Removing Front Seat Shoulder Belt Guide
    G01780667Courtesy of GENERAL MOTORS CORP.
  4. Use a flat-bladed tool to remove the center pillar upper trim panel (1) from its clips.

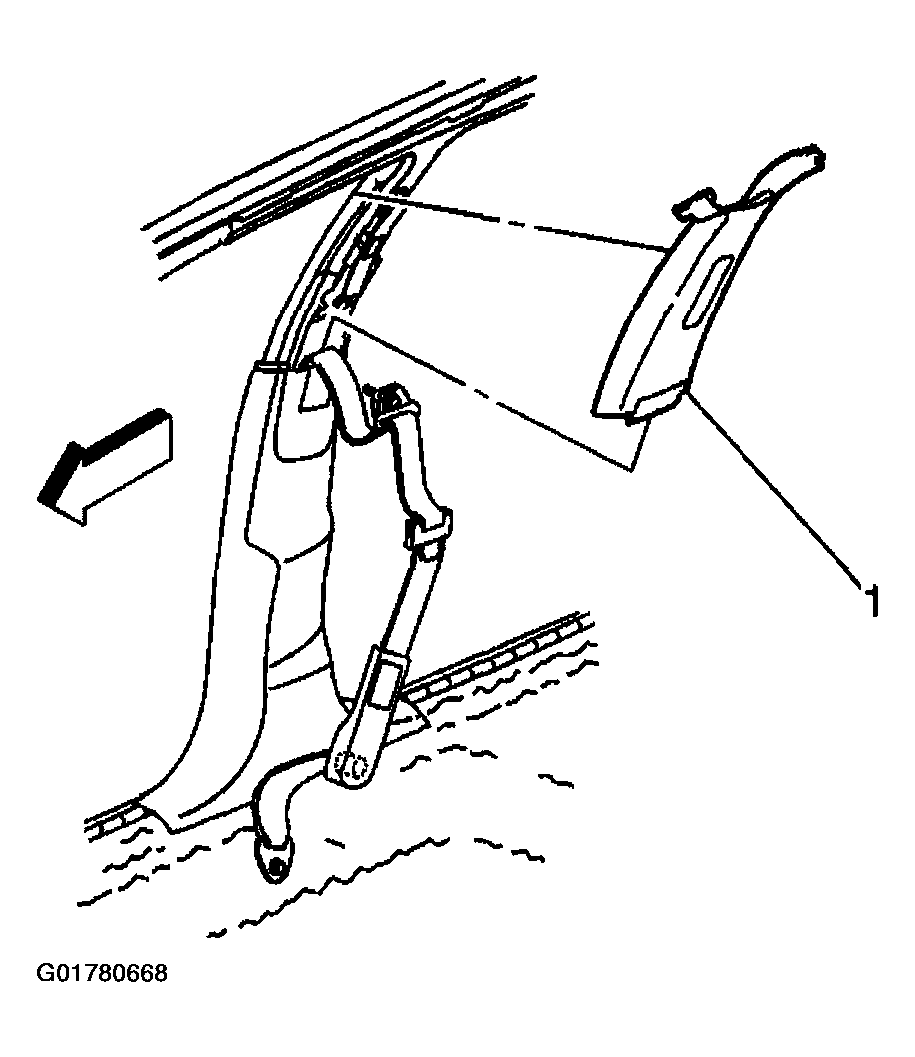

    Fig 2: Removing Center Pillar Upper Trim Panel
    G01780668Courtesy of GENERAL MOTORS CORP.
