Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the center pillar upper trim panel (1) to align the retaining clips.
  2. Press in the center pillar upper trim panel to secure to the retaining clips.

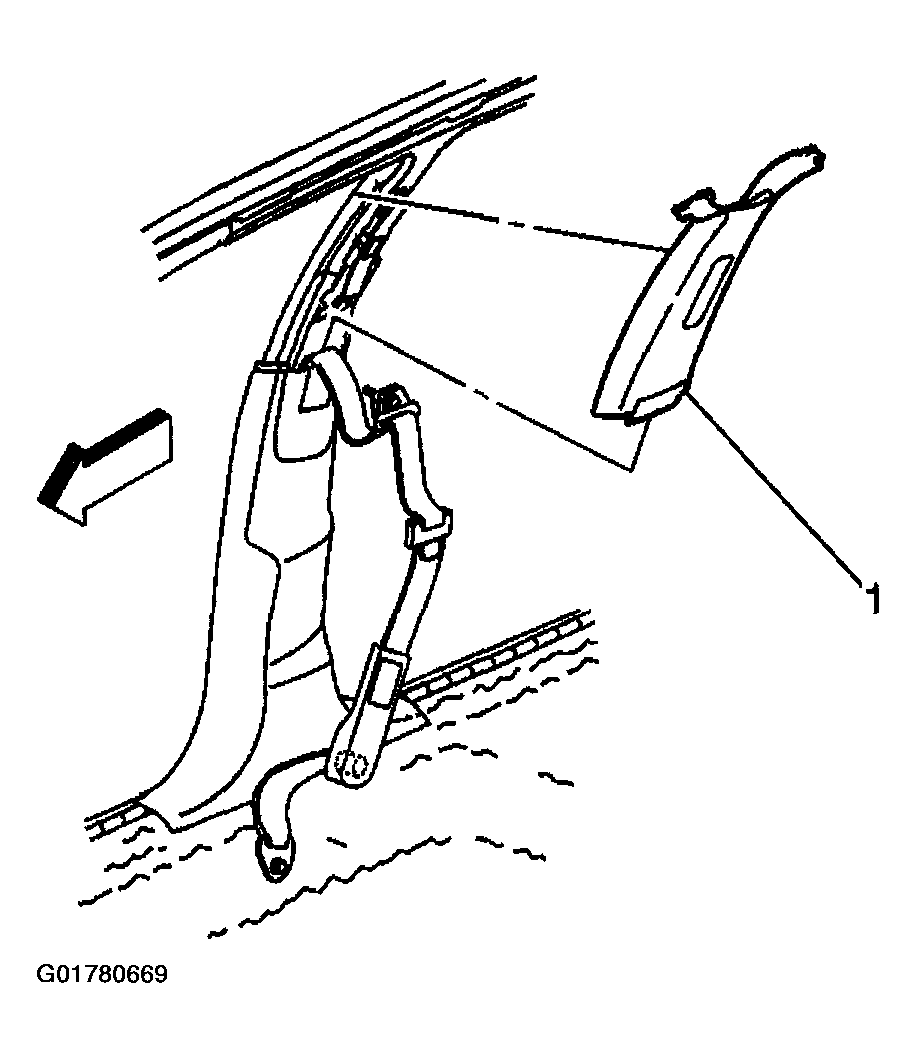

    Fig 1: Installing Center Pillar Upper Trim Panel
    G01780669Courtesy of GENERAL MOTORS CORP.
  3. Align the front seat shoulder belt guide to the guide adjuster track.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the front seat shoulder belt guide bolt.

    Tighten

    Tighten the bolt to 42 N.m (31 lb ft).

  5. Install the front seat belt guide bolt cover.
  6. Install the center pillar lower trim panel. Refer to Trim Panel Replacement - Lower Center Pillar  .

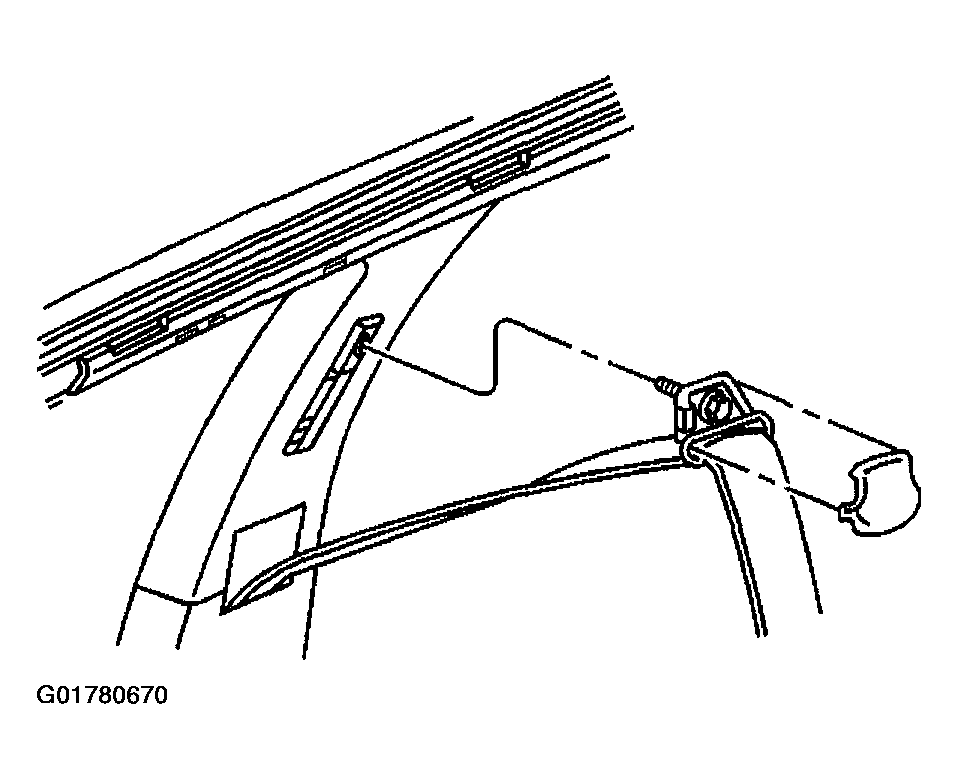

    Fig 2: Installing Front Seat Shoulder Belt Guide
    G01780670Courtesy of GENERAL MOTORS CORP.
