Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back if equipped with stationary rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  2. Remove the rear seat back bolsters if equipped with split/folding rear seat back. Refer to SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING .
  3. Remove the rear quarter upper trim panels. Refer to Trim Panel Replacement - Rear Quarter Upper  .
  4. Remove the retainers (3) from the rear window self.
  5. Remove the rear shoulder belts through the T slots in the rear self trim panel.
  6. Remove the rear self trim panel (1) from the vehicle.

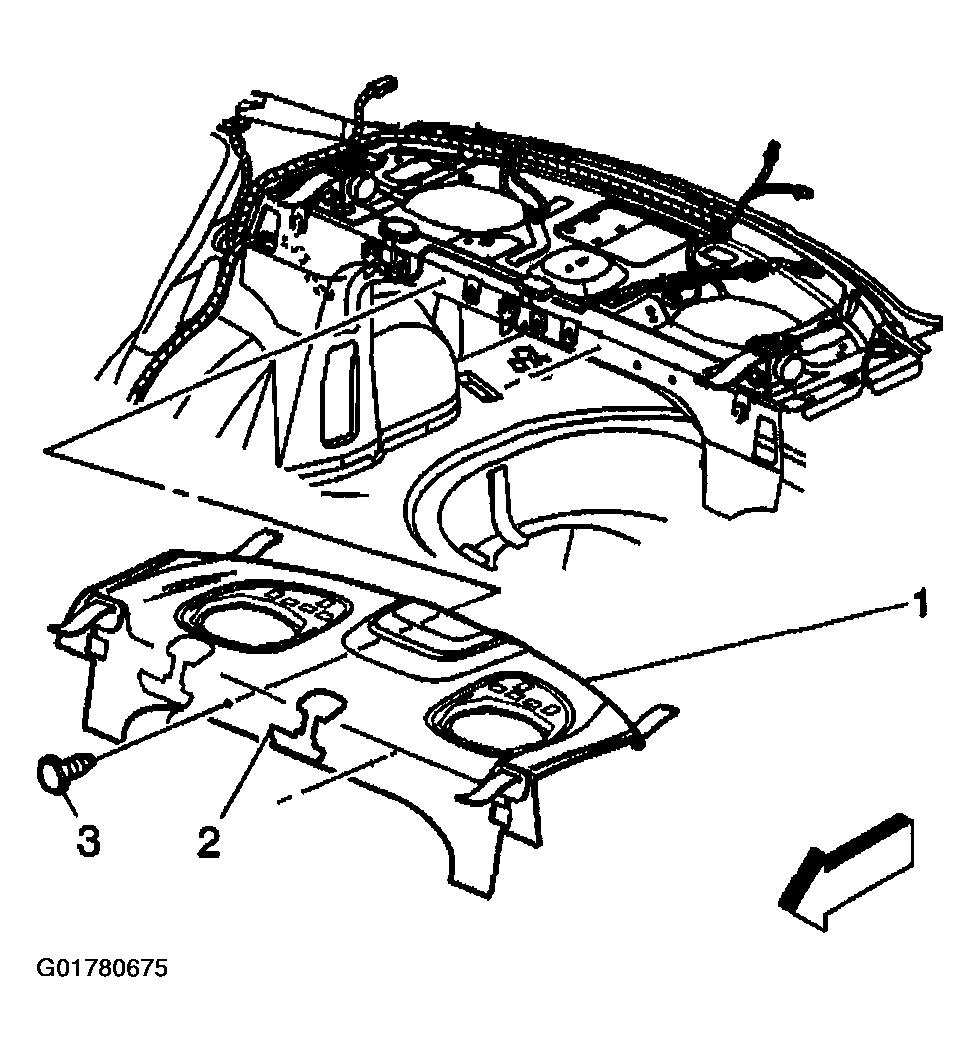

    Fig 1: Removing Rear Window Shelf Trim Panel
    G01780675Courtesy of GENERAL MOTORS CORP.
