Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear window panel trim (1) into the vehicle.
  2. Insert the rear shoulder seat belts through the T slots in the rear self trim panel.
  3. Install the retainers (3) to the rear self trim panel.
  4. Install the quarter upper trim panels. Refer to Trim Panel Replacement - Rear Quarter Upper  .
  5. Install the rear seat back bolsters if equipped with split/folding rear seat back. Refer to SEAT BACK BOLSTER REPLACEMENT - REAR SPLIT FOLDING .
  6. Install the rear seat back if equipped with stationary rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

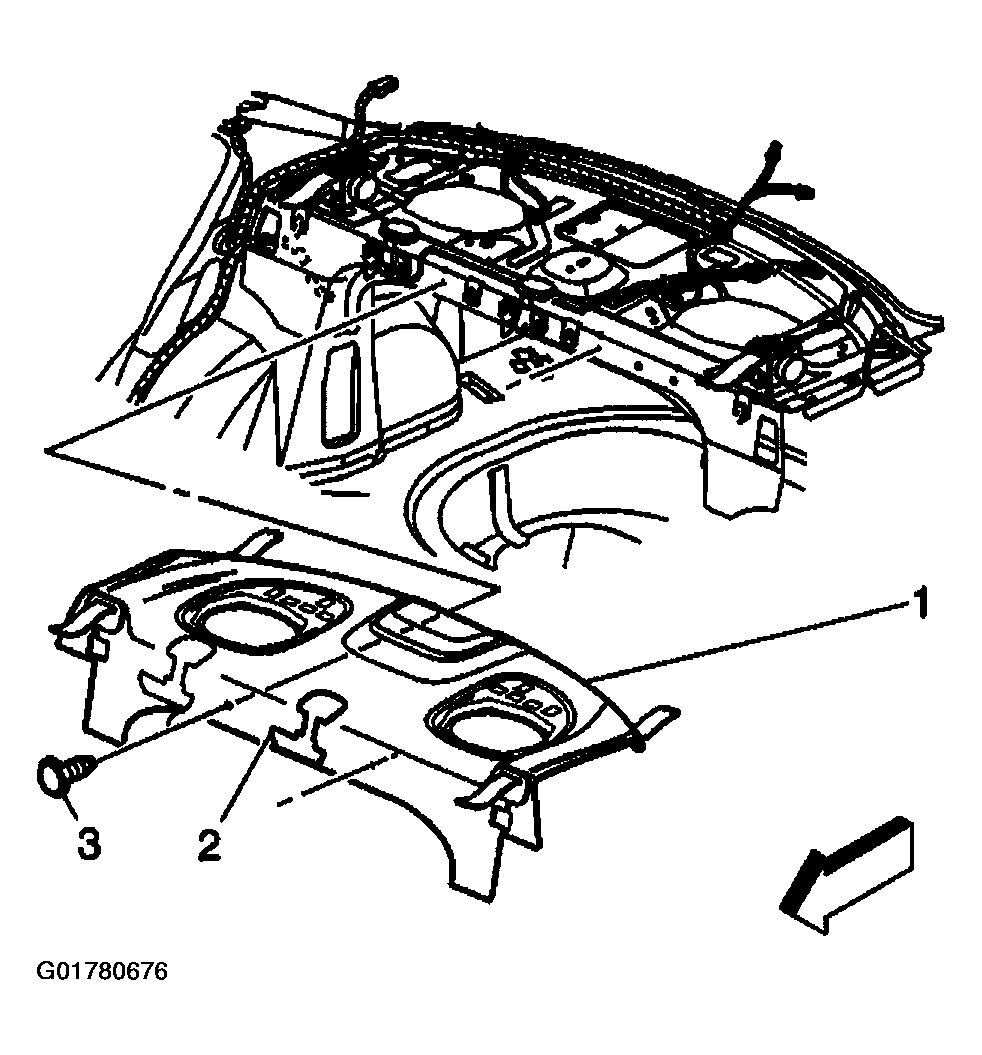

    Fig 1: Installing Rear Window Shelf Trim Panel
    G01780676Courtesy of GENERAL MOTORS CORP.
