Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper quarter trim fastener.
  2. Firmly pull the panel away from the vehicle body in order to disengage the retainers.
  3. Remove the panel from the vehicle.

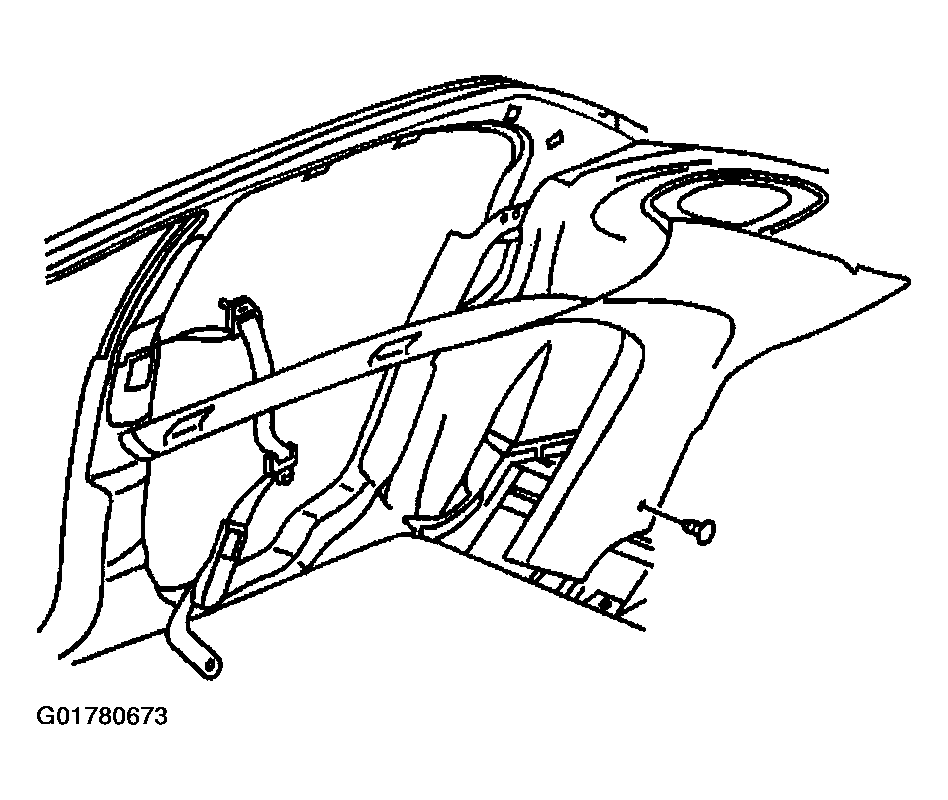

    Fig 1: Removing Rear Quarter Upper Trim Panel
    G01780673Courtesy of GENERAL MOTORS CORP.
