Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lock pillar lower trim panel. Refer to Trim Replacement - Body Lock Pillar  .
  2. Remove the carpet retainer. Refer to Carpet Retainer Replacement .
  3. Remove the center pillar lower trim panel (1).

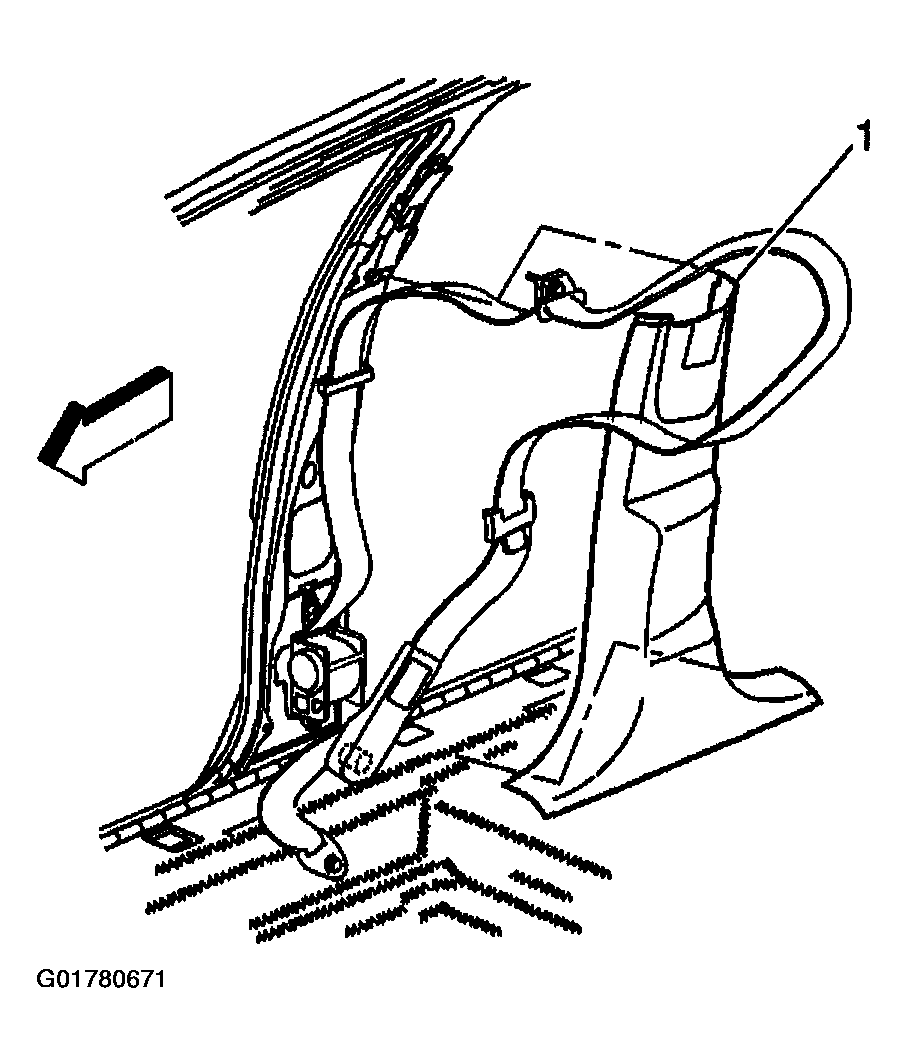

    Fig 1: Removing Lower Center Pillar Trim Panel
    G01780671Courtesy of GENERAL MOTORS CORP.
