Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center pillar lower trim panel (1).
  2. Install the carpet retainer. Refer to Carpet Retainer Replacement  .
  3. Install the lock pillar lower trim panel. Refer to Trim Replacement - Body Lock Pillar  .

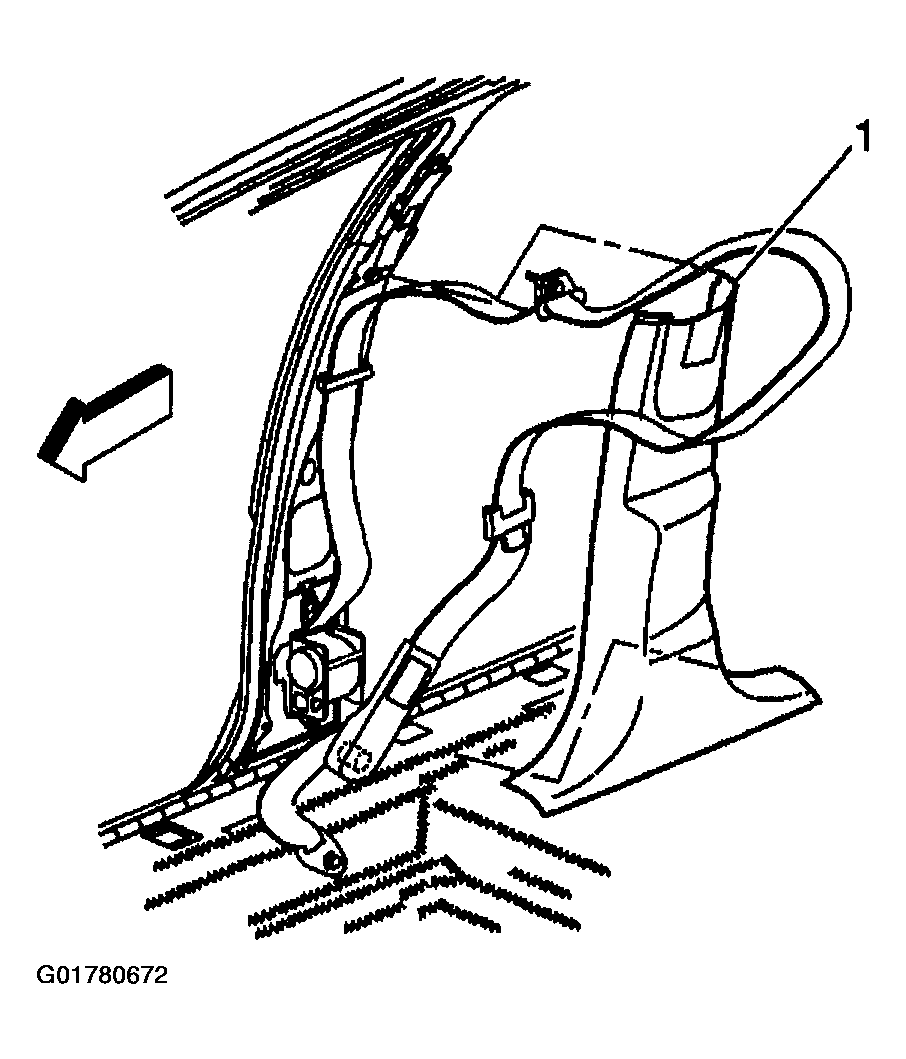

    Fig 1: Installing Lower Center Pillar Trim Panel
    G01780672Courtesy of GENERAL MOTORS CORP.
