Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunshade (3) from the sunshade anchor.
  2. Rotate the sunshade (3) parallel to the door and pull in a downward motion in order to disconnect the sunshade retention clip.
  3. Remove the sunshade (3) from the sunshade bezel (2).
  4. Disconnect the electrical connector if required.
  5. Remove the sunshade bezel (2) from the headliner (1) if required.

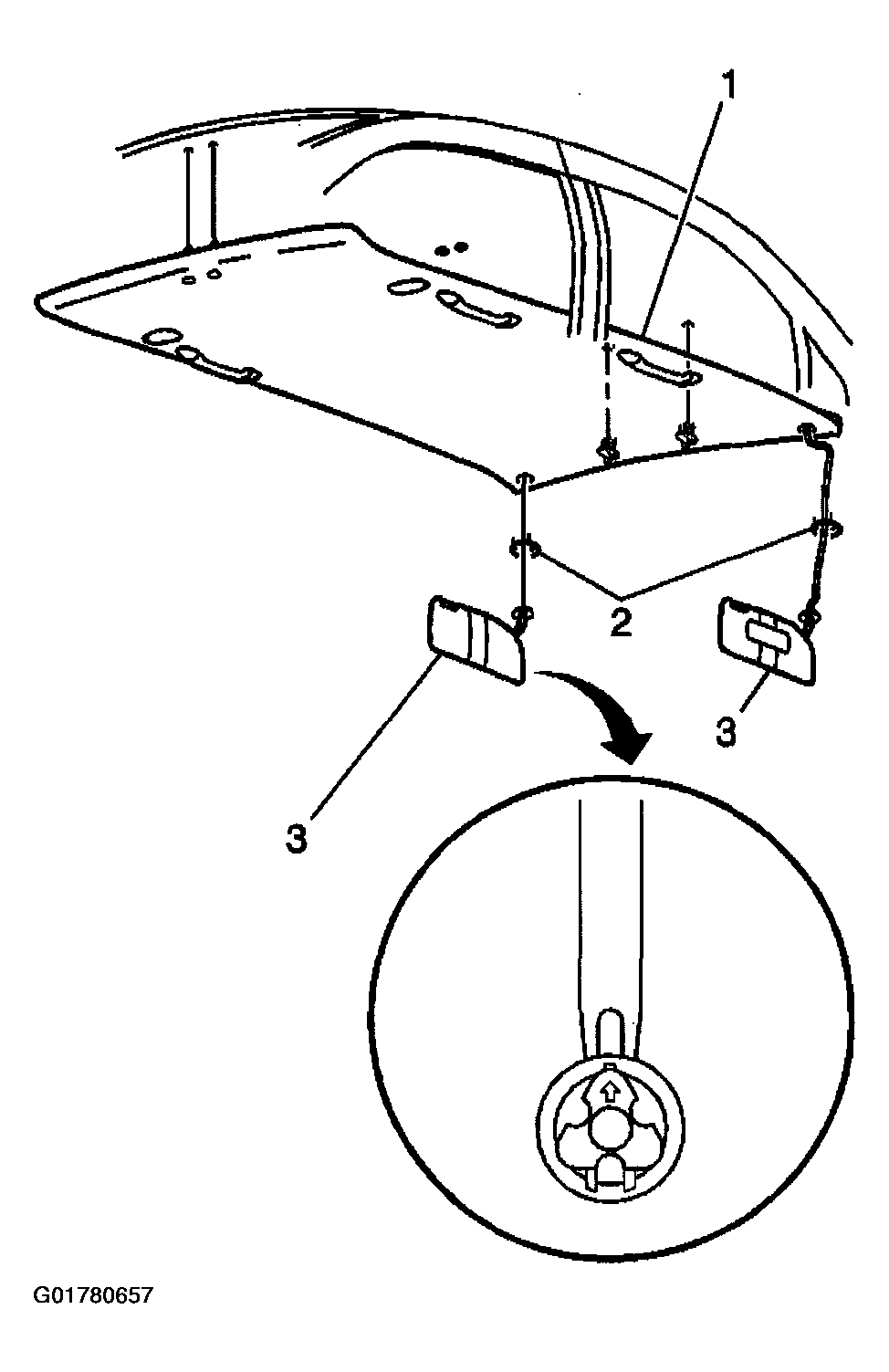

    Fig 1: Removing Sunshade
    G01780657Courtesy of GENERAL MOTORS CORP.
