Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the rectangular tab back through the sunshade anchor (1) with a small flat-bladed tool. This will allow you to reinstall the sunshade anchor without damaging the headliner.
  2. Install the sunshade anchor (1) to the headliner (2).
  3. Seat the rectangular tab flush with the base of the sunshade anchor (1). This will retain the sunshade anchor to the headliner.

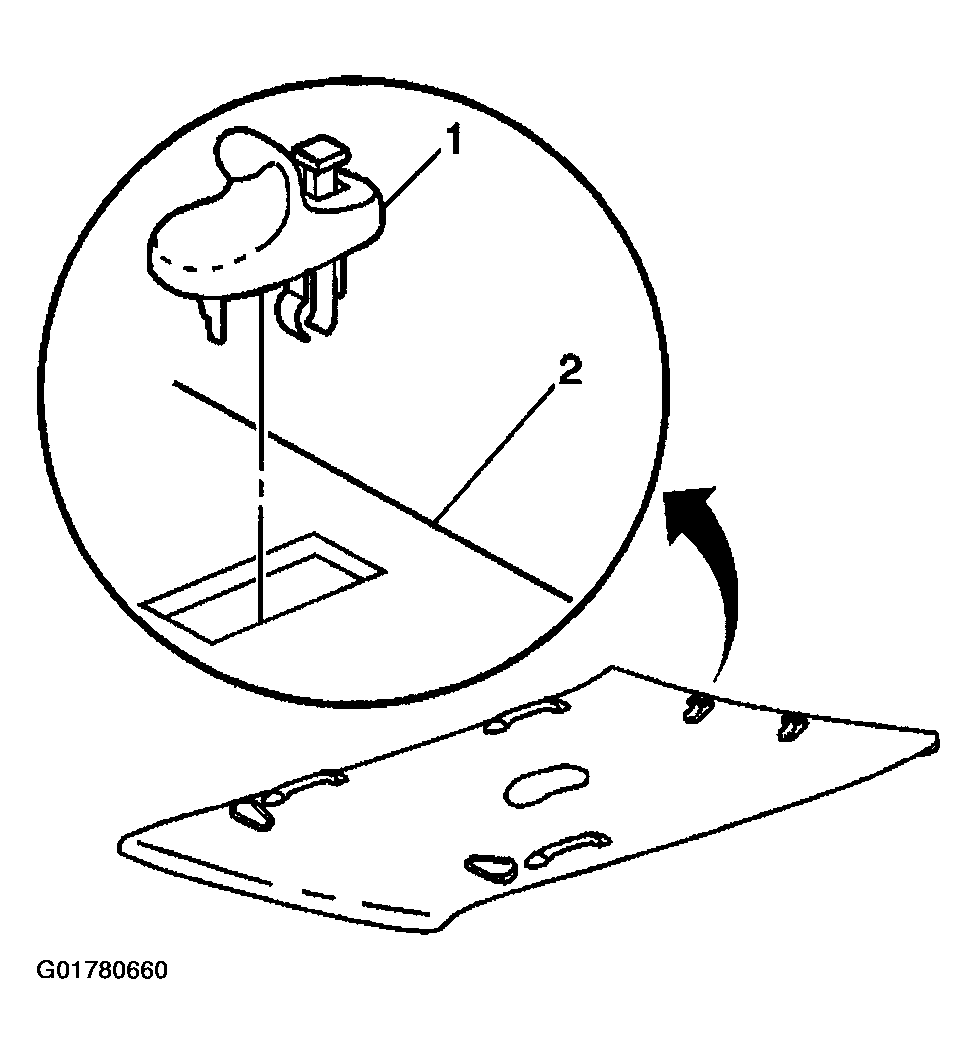

    Fig 1: Installing Sunshade Anchor
    G01780660Courtesy of GENERAL MOTORS CORP.
