Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP end cap cover from the IP carrier.
  2. Remove the screw for the upper garnish molding in the bussed electrical center.
  3. Pull outward on the windshield side upper garnish molding (2) to disengage the clips (1).
  4. Remove the windshield side upper garnish molding (2).

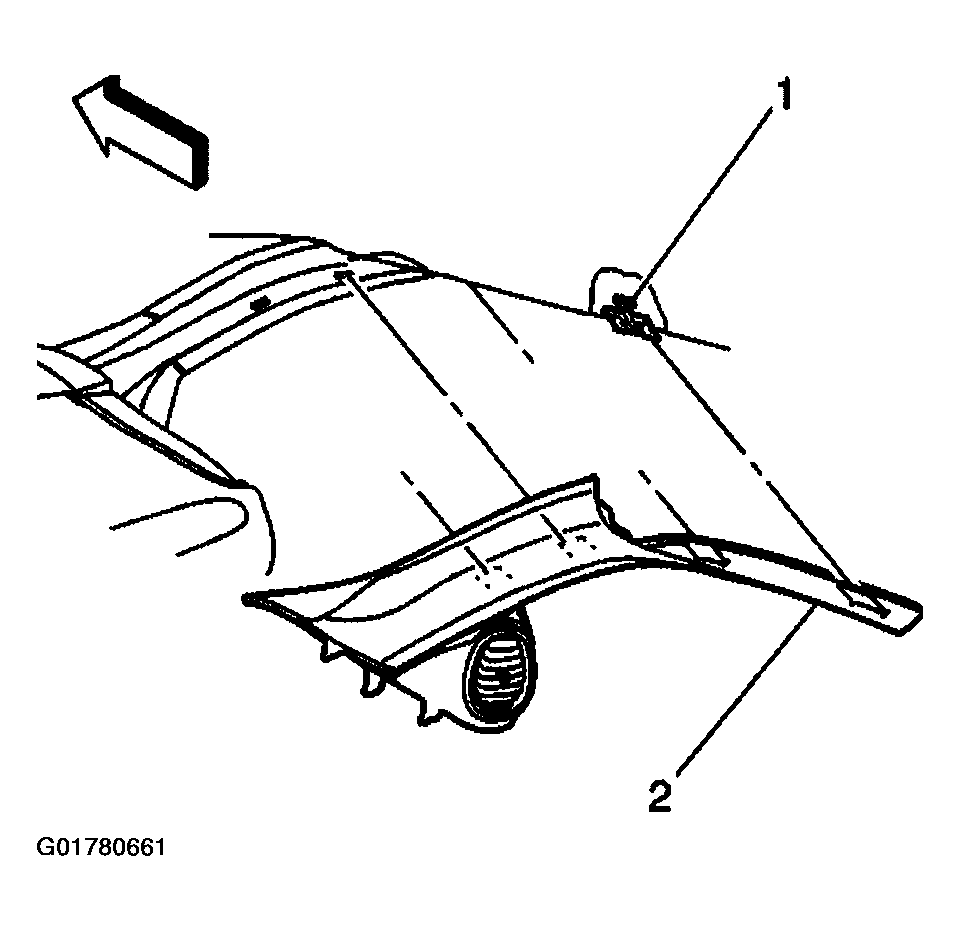

    Fig 1: Removing Upper Pillar Molding
    G01780661Courtesy of GENERAL MOTORS CORP.
