Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the windshield side upper garnish molding (2).
  2. Apply inward pressure to the windshield side of the upper garnish molding (2) to engage the clips (1).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the upper garnish molding screw.

    Tighten

    Tighten the screw to 1 N.m (9 lb in).

  4. Install the IP end cap cover to the IP carrier.

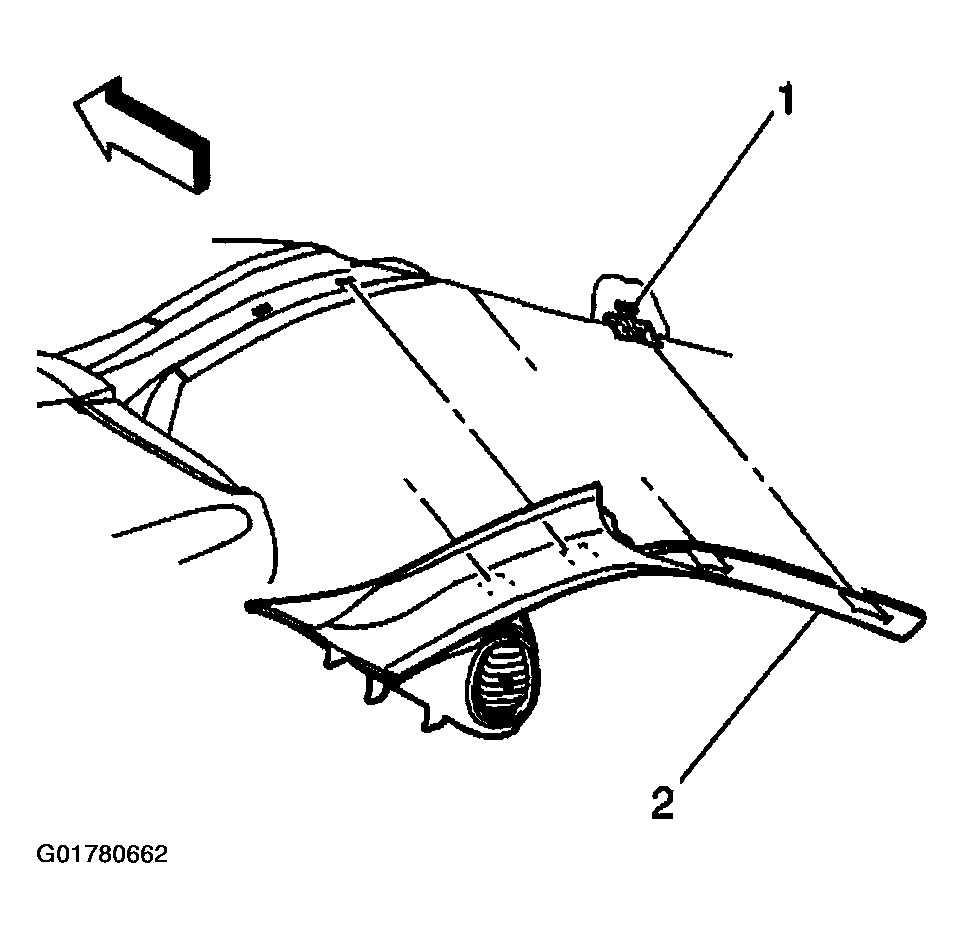

    Fig 1: Installing Upper Pillar Molding
    G01780662Courtesy of GENERAL MOTORS CORP.
