Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push pin retainers (1) from the door sill trim plate (2).
  2. Pry the door sill trim plate (2) upward using a flat blade tool and remove from the vehicle.

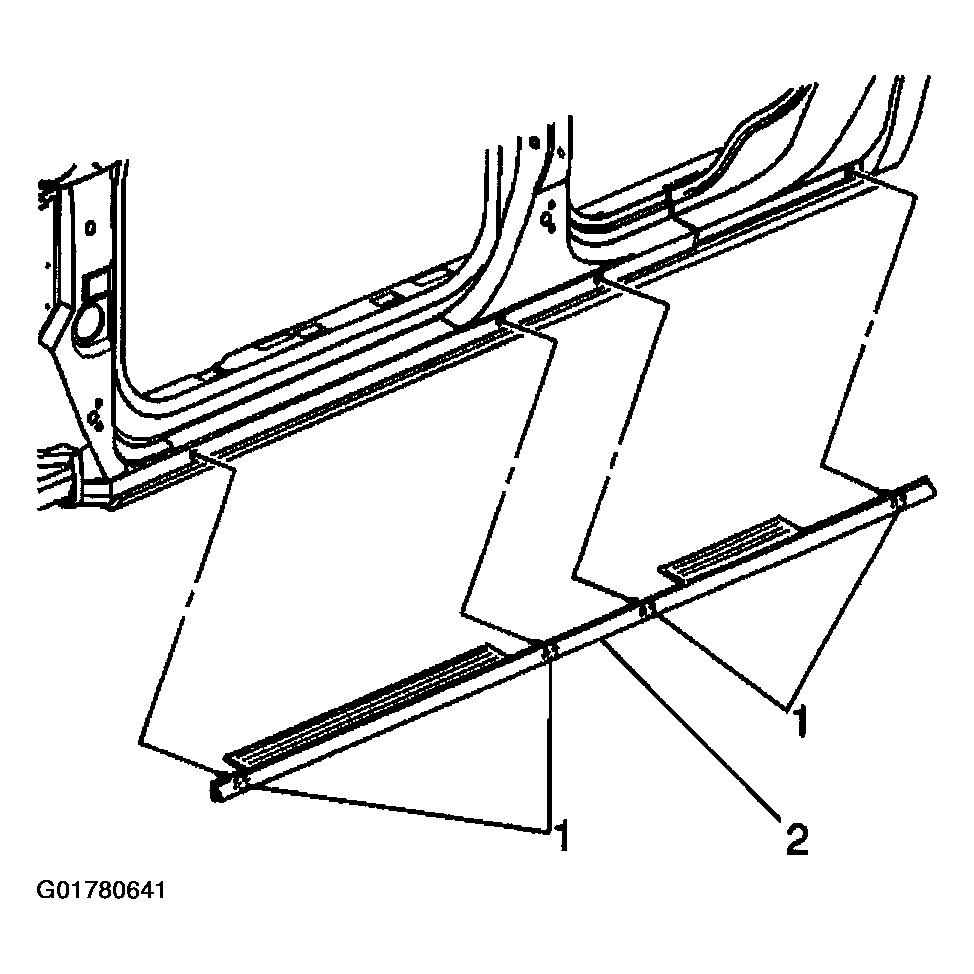

    Fig 1: Removing Door Sill Trim Plate
    G01780641Courtesy of GENERAL MOTORS CORP.
  3. Clean the tape (4) from the door sill.
  4. If you are reusing the door sill trim plate, clean the door sill trim plate (2).
    Fig 2: Identifying Door Sill & Door Sill Trim Plate
    G01780642Courtesy of GENERAL MOTORS CORP.
