Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install two sided tape (4) to the door sill trim plate (2).
    Fig 1: Identifying Door Sill & Door Sill Trim Plate
    G01780643Courtesy of GENERAL MOTORS CORP.
  2. Install the door sill trim plate (2) to the door sill.
  3. Install the push pin retainers (1) to the door sill trim plate.

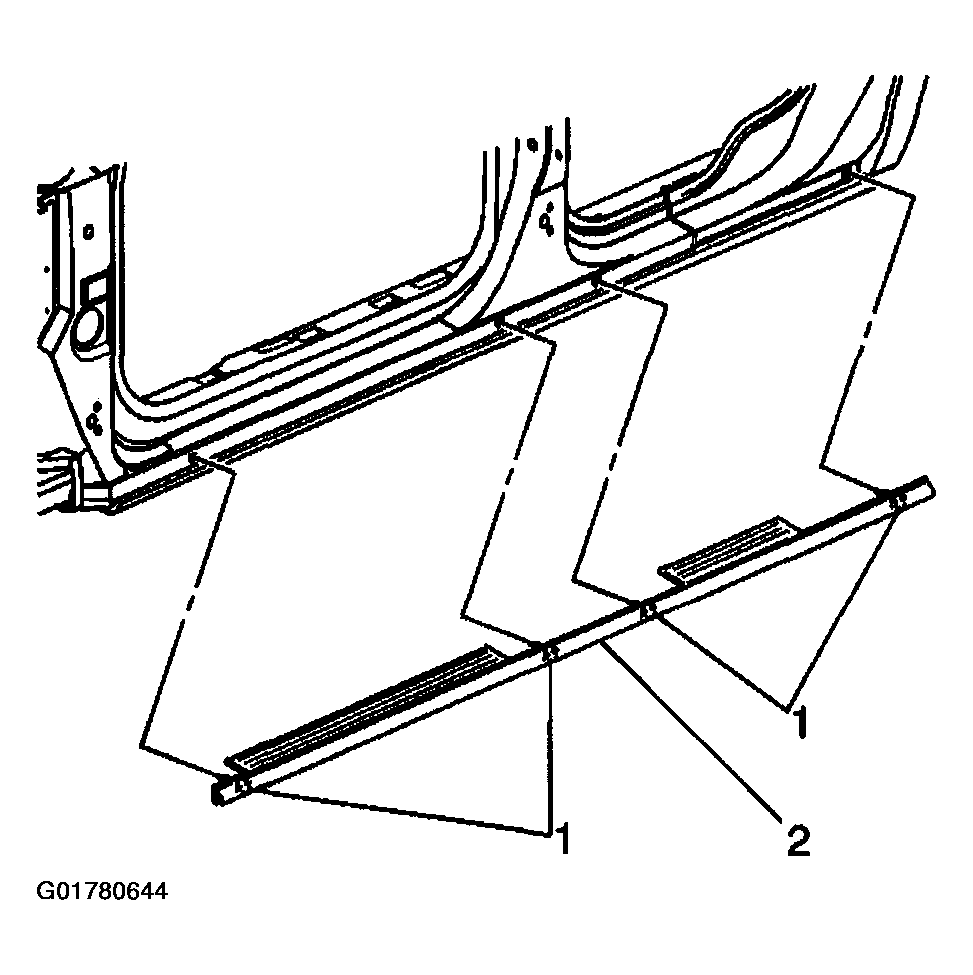

    Fig 2: Installing Door Sill Trim Plate
    G01780644Courtesy of GENERAL MOTORS CORP.
