Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the access cover (2) from the coat hook (4).
  2. Remove the coat hook screw (3) from the coat hook (4).
  3. Remove the coat hook (4) from the headliner (1).

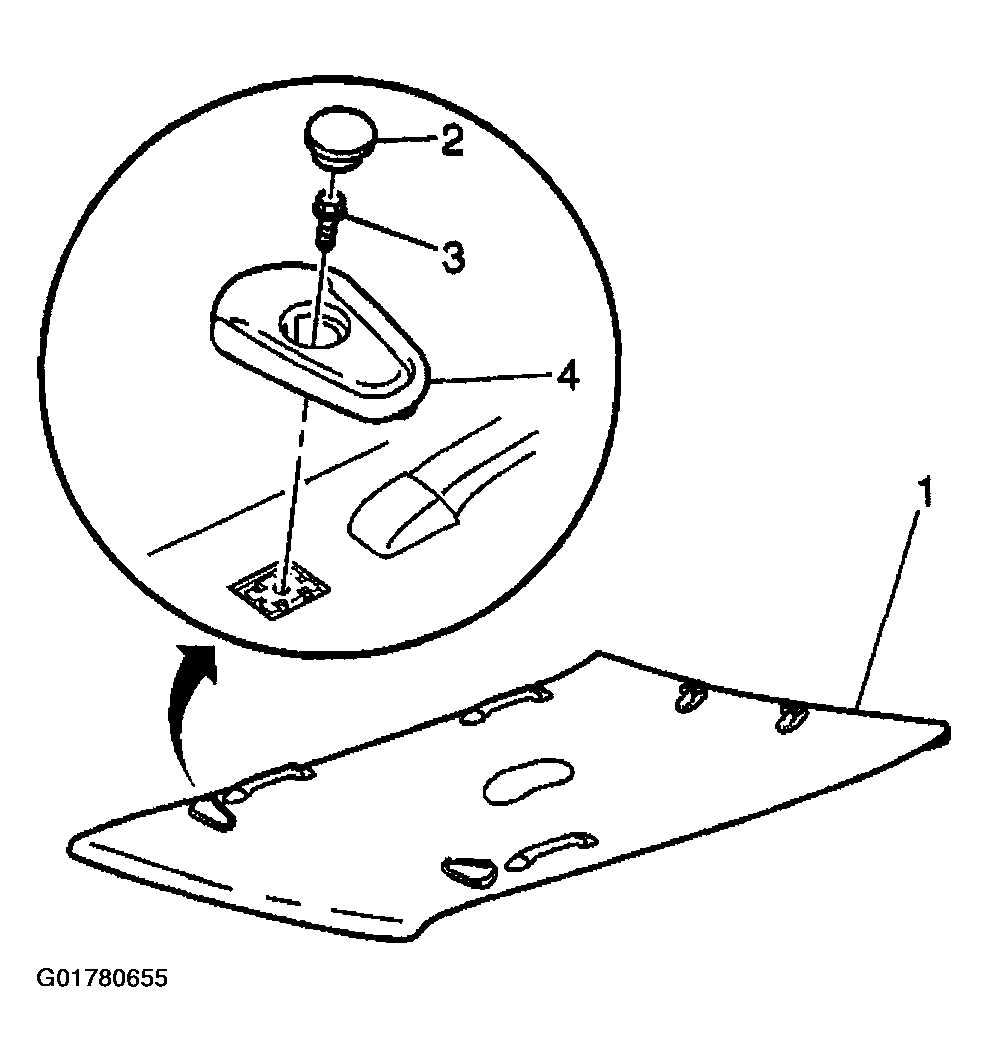

    Fig 1: Removing Coat Hook
    G01780655Courtesy of GENERAL MOTORS CORP.
