Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the coat hook (4) with the backing plate.
  2. Install the coat hook (4) to the headliner (1).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the coat hook screw (3) to the coat hook (4).

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

  4. Install the access cover (2) to the coat hook (4).

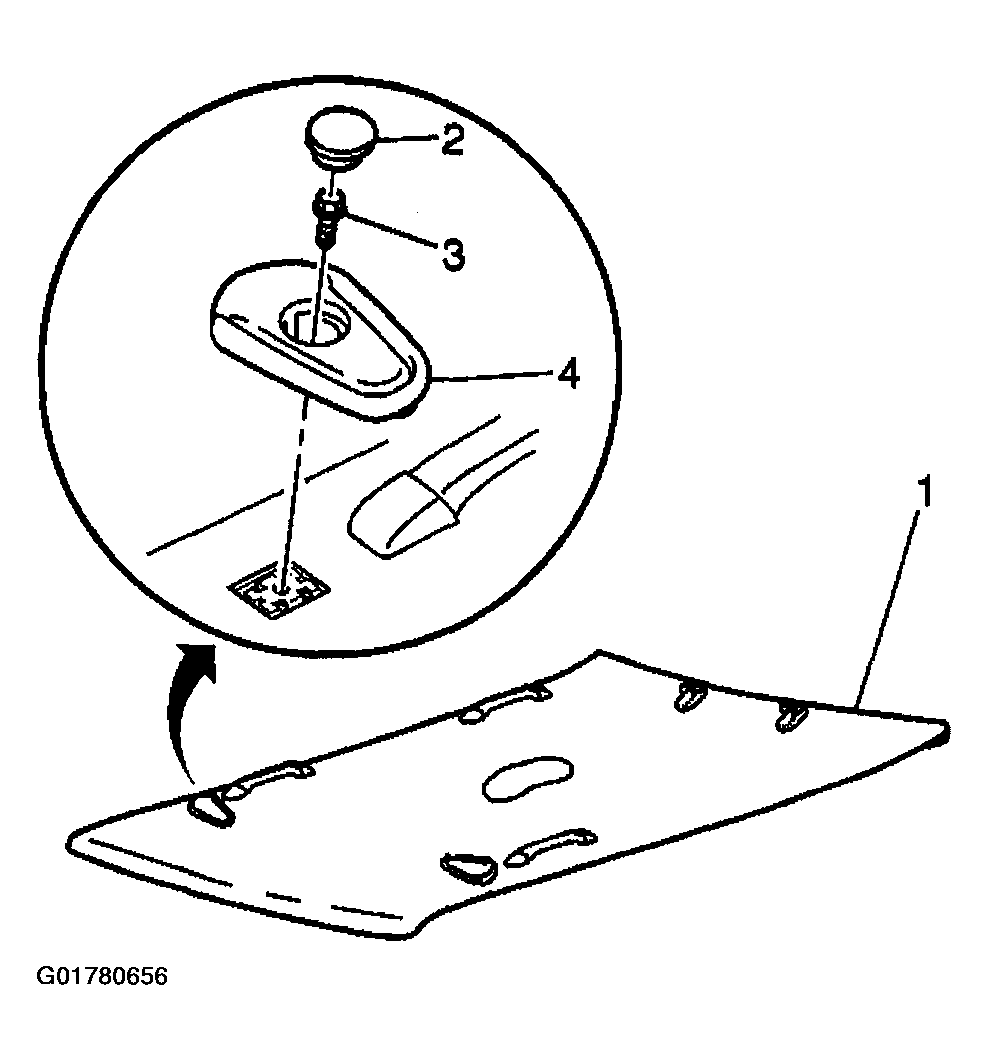

    Fig 1: Installing Coat Hook
    G01780656Courtesy of GENERAL MOTORS CORP.
