Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Starting at the rear edge, pull the floor carpet retainers upward in order to disengage the retaining clips.
  2. Remove the driver's side floor carpet retainer (1).

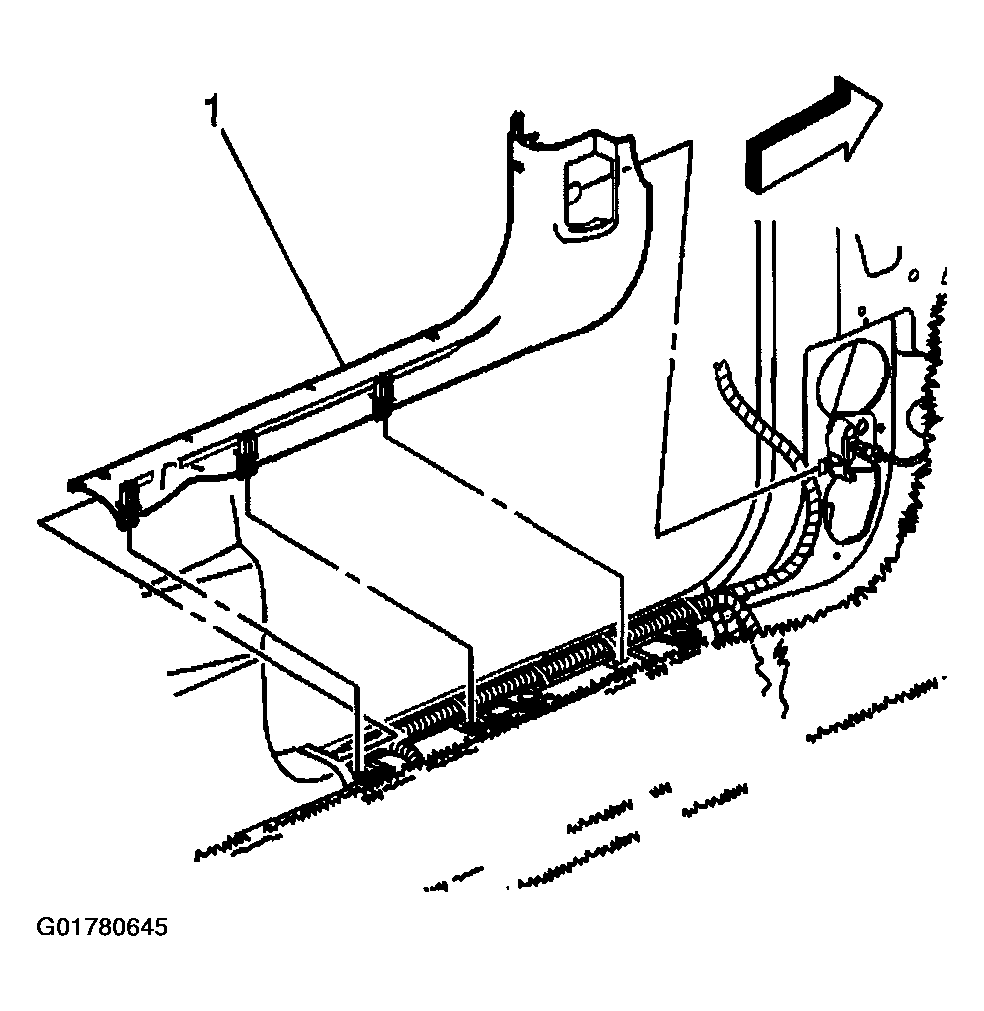

    Fig 1: Removing Driver's Side Floor Carpet Retainer
    G01780645Courtesy of GENERAL MOTORS CORP.
  3. Remove the passenger's side floor carpet retainer (1).

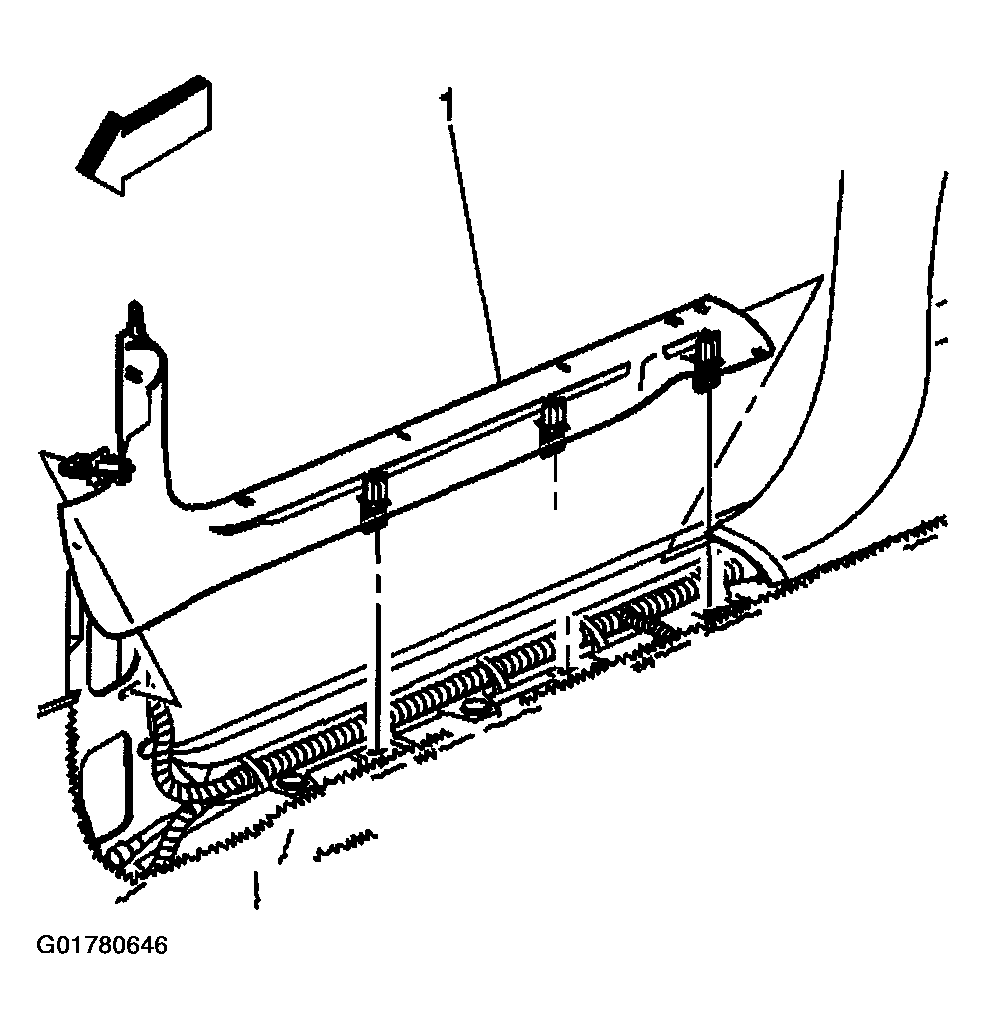

    Fig 2: Removing Passenger's Side Floor Carpet Retainer
    G01780646Courtesy of GENERAL MOTORS CORP.
