Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

The floor carpet is a molded, one-piece design.

  1. Remove the front seats. Refer to SEAT REPLACEMENT .
  2. Remove the console assembly. Refer to CONSOLE REPLACEMENT .
  3. Remove the floor carpet retainers. Refer to Carpet Retainer Replacement  .
  4. Remove the center pillar lower trim panel. Refer to Trim Panel Replacement - Lower Center Pillar  .
  5. Remove the front shoulder belt anchor bolts from the floor pan.
  6. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  7. Remove the floor carpet.

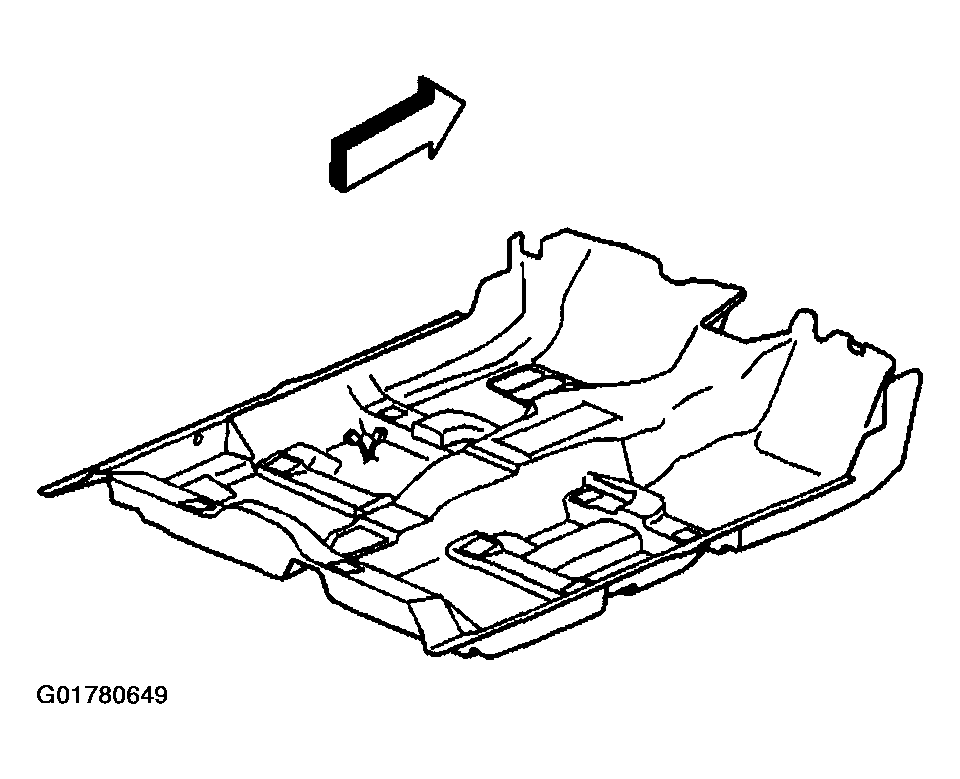

    Fig 1: Floor Molding
    G01780649Courtesy of GENERAL MOTORS CORP.
