Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install fuses and relays to the fuse block if required.
    CAUTION: Refer to FASTENER NOTICE .
  2. For passenger side only:
    1. 2.1. Place the fuse block through the IP carrier.
    2. 2.2. Through the opening in the IP storage compartment connect the inboard junction block electrical connectors to the IP fuse block.
    3. 2.3. Engage the inboard junction block electrical connectors to the IP fuse block until the connector tabs are fully seated.

      Tighten

      Tighten the inboard junction block electrical connector bolts to 3 N.m (27 lb in).

    4. 2.4. Install the IP storage compartment to the IP carrier. Refer to COMPARTMENT REPLACEMENT -- IP .

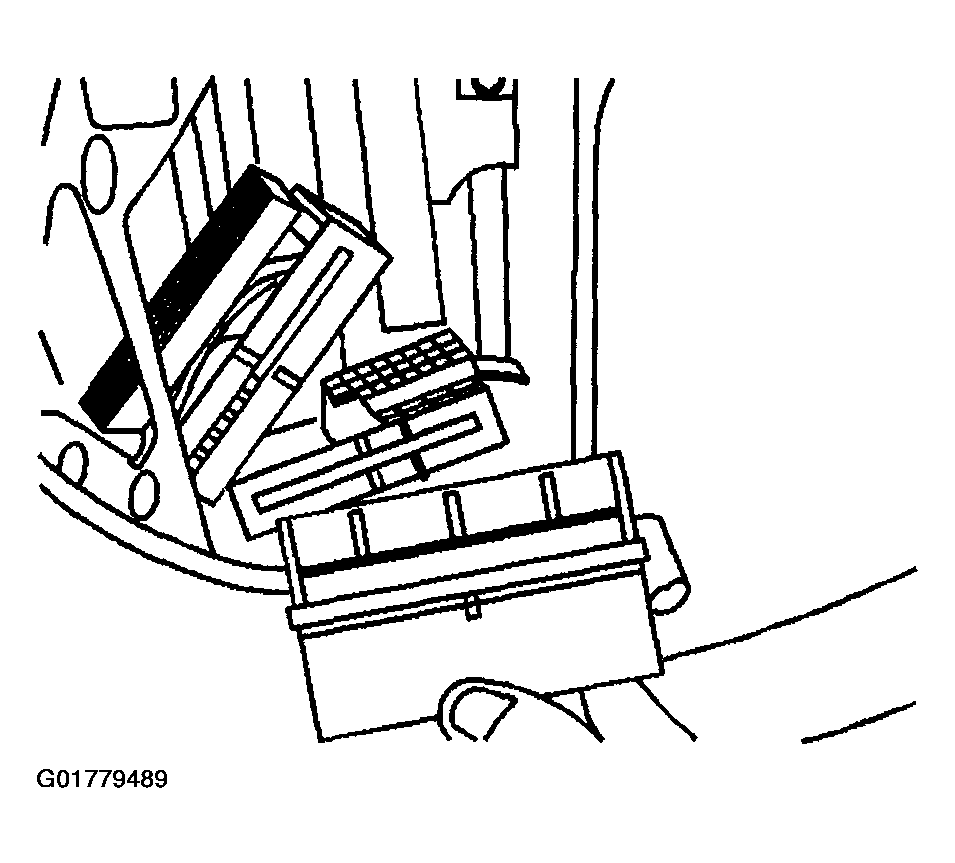

      Fig 1: Installing Passenger Side Fuse Block
      G01779489Courtesy of GENERAL MOTORS CORP.
  3. On the drivers side only:
    1. 3.1. Connect the inboard junction block electrical connectors to the IP fuse block.
    2. 3.2. Engage the inboard junction block electrical connectors to the IP fuse block until the connector tabs are fully seated.

      Tighten

      Tighten the inboard junction block electrical connector bolts to 3 N.m (27 lb in).

    3. 3.3. Engage the IP fuse block to the cross vehicle beam.
    4. 3.4. Engage the wire harness to the cross vehicle beam and install the left halve of the sound insulator to the IP carrier.

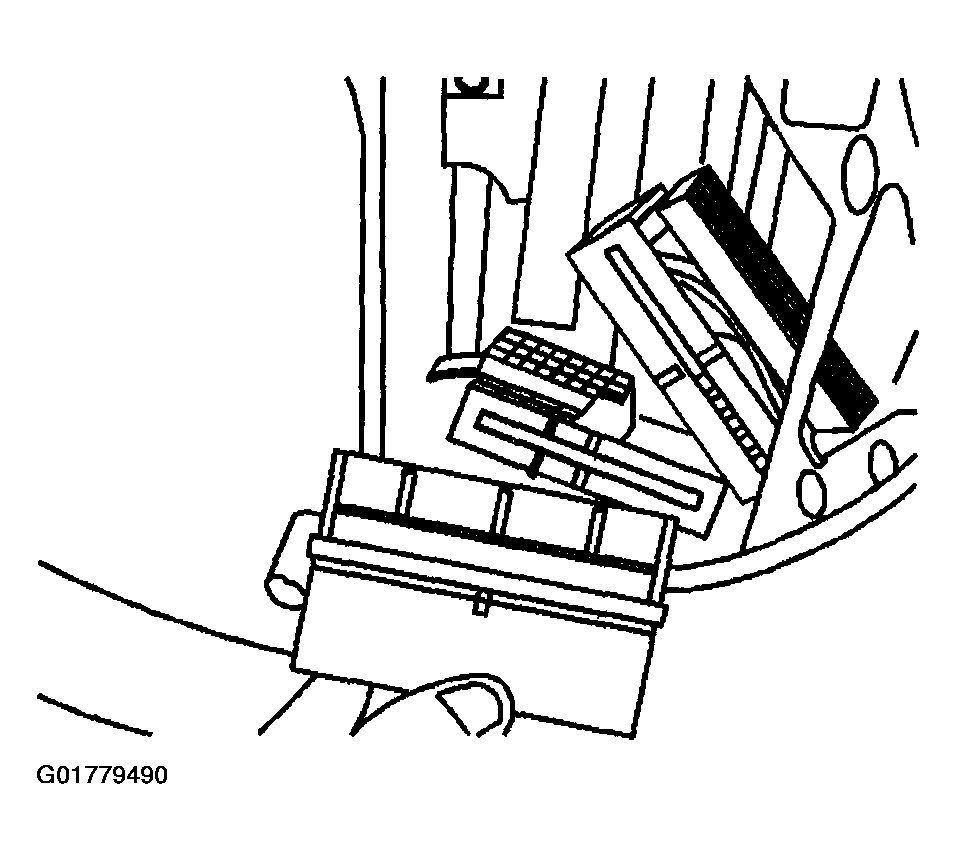

    Fig 2: Installing IP Fuse Block
    G01779490Courtesy of GENERAL MOTORS CORP.
  4. Install the outboard junction block electrical connector to the IP fuse block. Left side shown, right side similar.
  5. Engage the outboard junction block electrical connector to the IP fuse block until connector tabs are fully seated.

    Tighten

    Tighten the outboard junction block electrical connector bolt to 3 N.m (27 lb in).

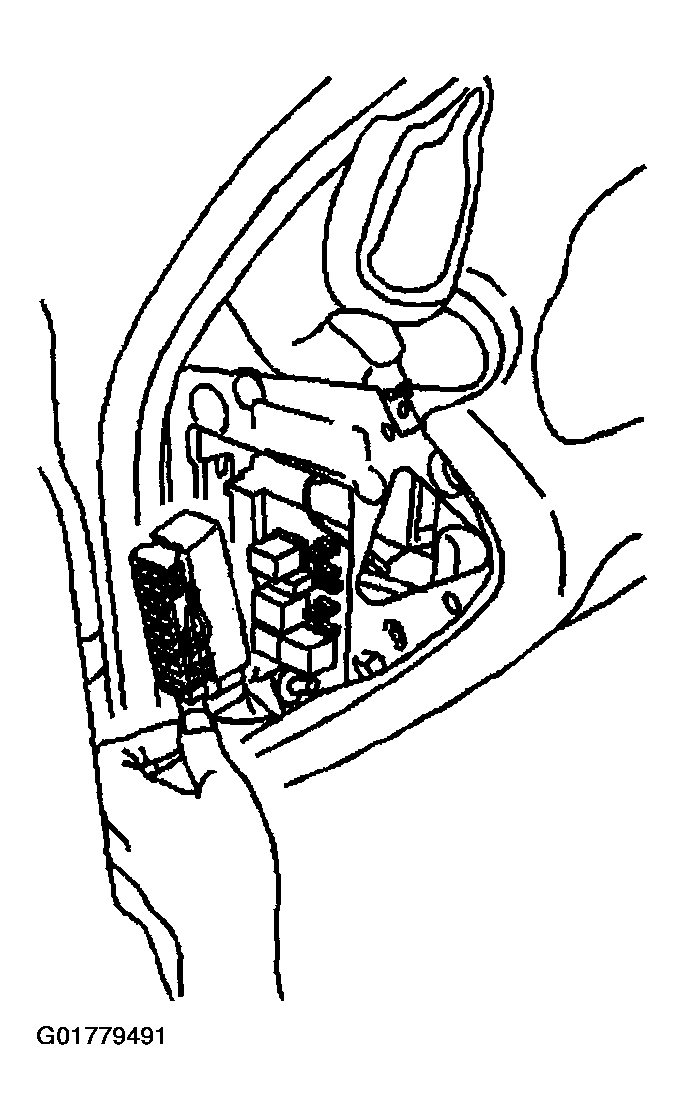

    Fig 3: Engaging Outboard Junction Block Electrical Connector
    G01779491Courtesy of GENERAL MOTORS CORP.
  6. Install the outer trim covers (1, 3) to the Instrument Panel (IP) carrier (2).
  7. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO in Engine Electrical.

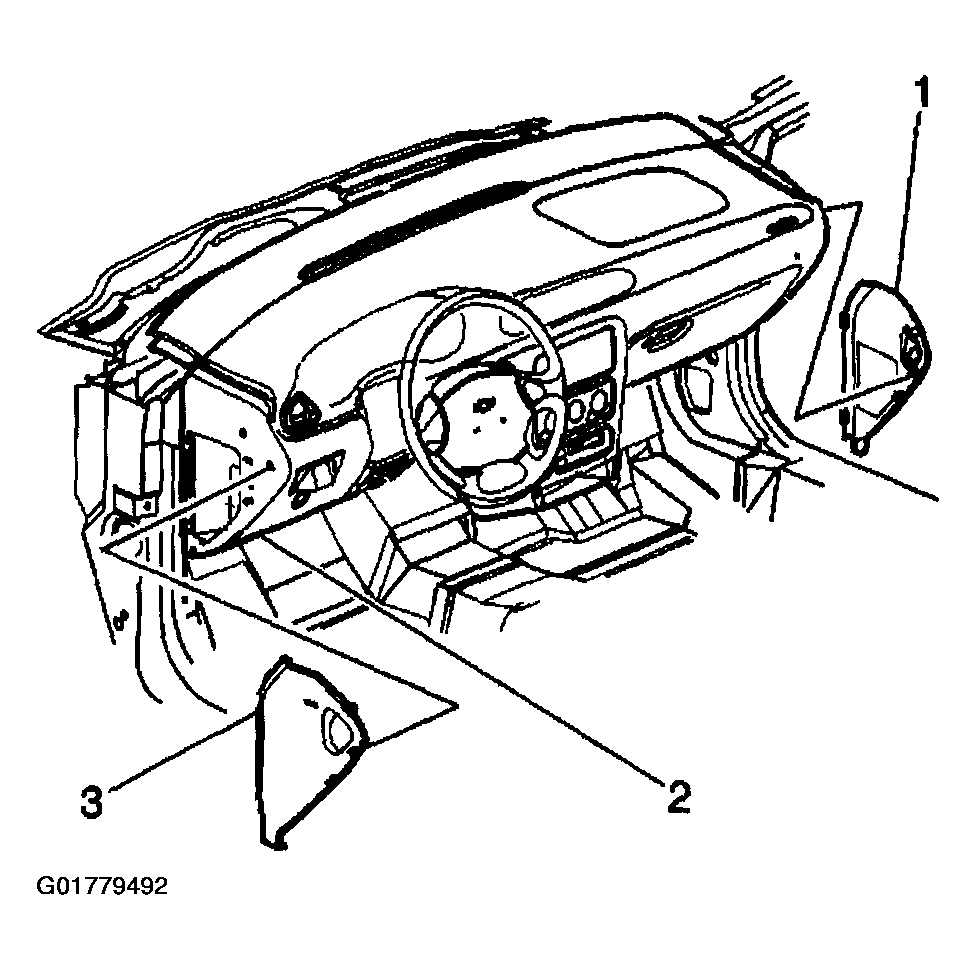

    Fig 4: Installing Outer Trim Covers
    G01779492Courtesy of GENERAL MOTORS CORP.
