Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the front bucket seat to the full up position in order to gain access to the power seat switch.
  2. Pull the bezel from the power seat switch.

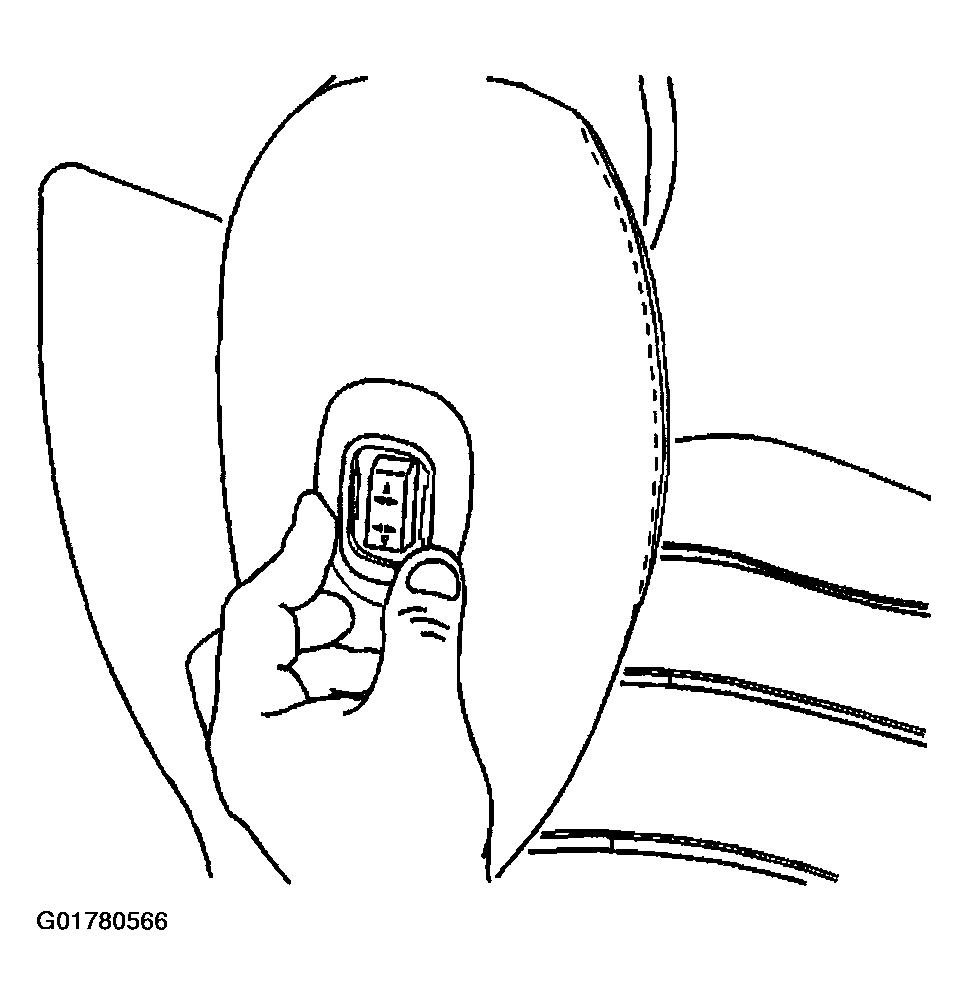

    Fig 1: Removing Power Seat Switch Bezel
    G01780566Courtesy of GENERAL MOTORS CORP.
  3. Adjust the front seat cushion cover in order to gain access to the power seat switch. Seat Cushion Cover Replacement - Front  .
  4. Remove the power seat switch screws.

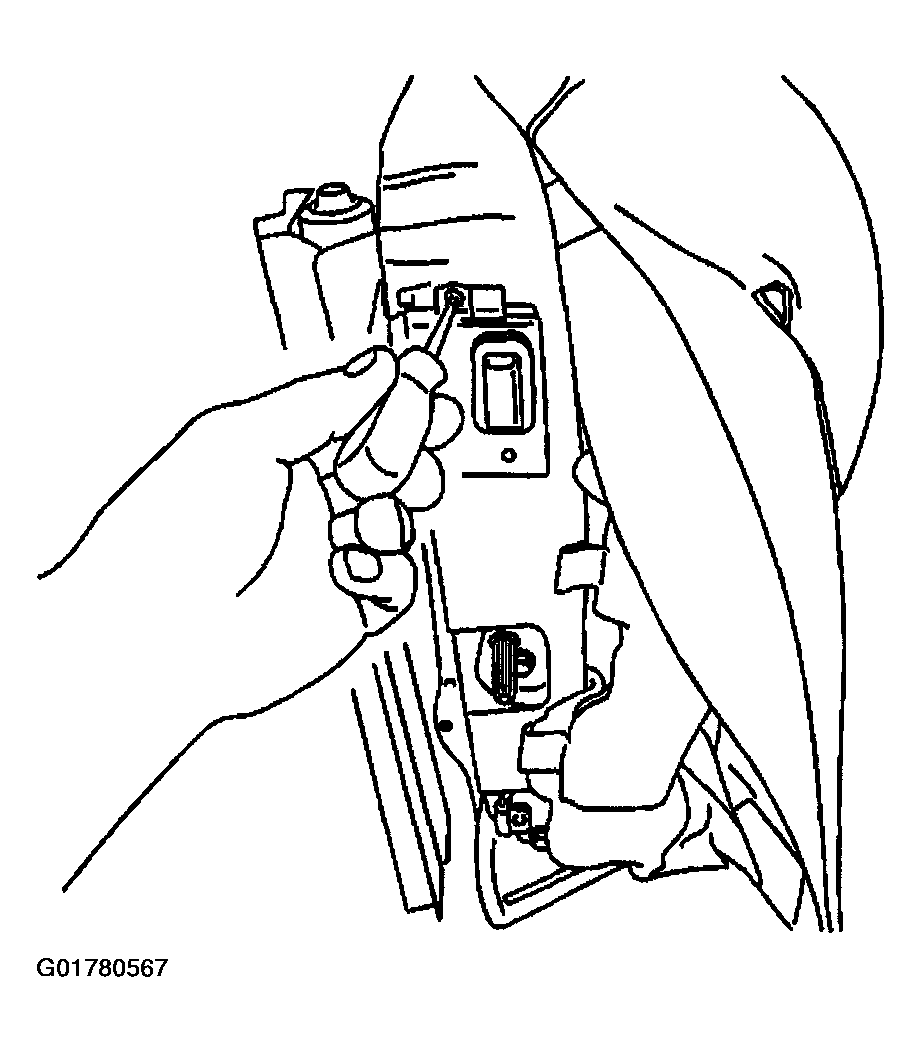

    Fig 2: Removing Power Seat Switch Screws
    G01780567Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the power seat switch.
  6. Remove the power seat switch from the seat cushion frame.

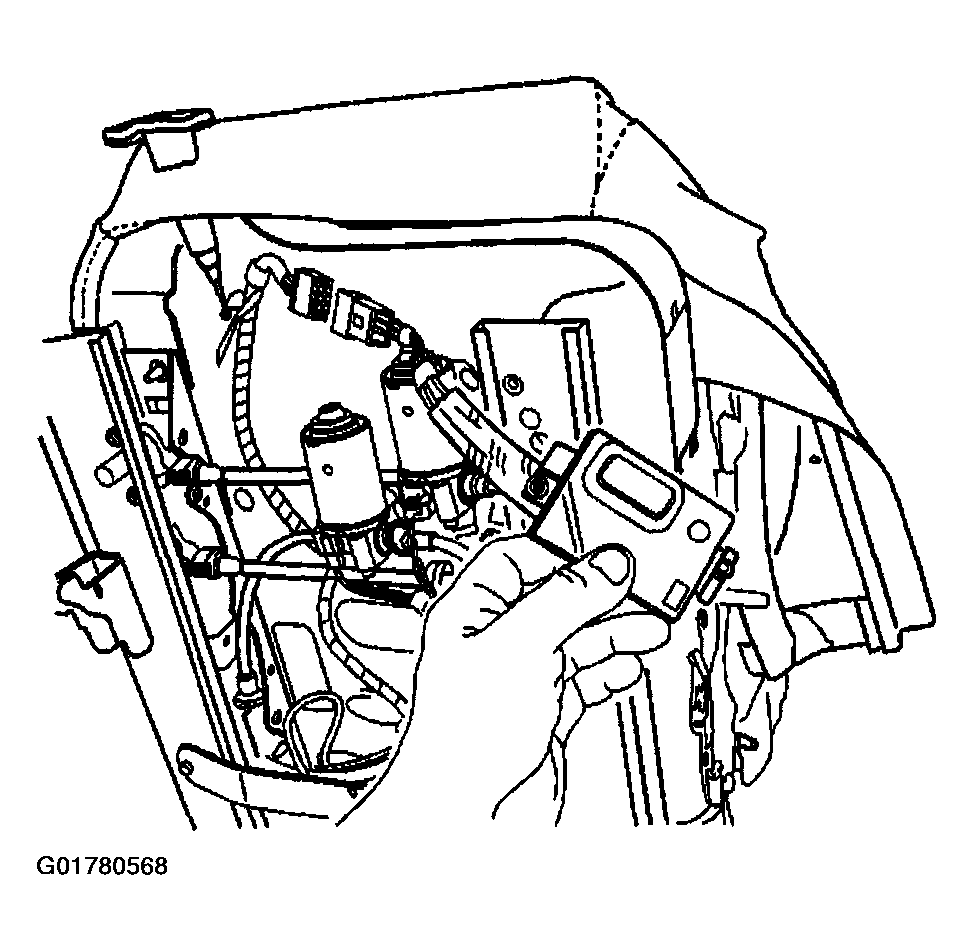

    Fig 3: Removing Power Seat Switch
    G01780568Courtesy of GENERAL MOTORS CORP.
