Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front seat forward in order to gain access to the seat adjuster attaching bolts (1).
  2. Remove the front seat adjuster attaching bolts (1).
  3. Disconnect the seat belt wiring harness (driver's side only).
  4. Disconnect the power seat electrical connector, if equipped, (driver's side only).
  5. Remove the front seat. Manually tilt the seat forward in order to disengage the hooks from the floor pan.

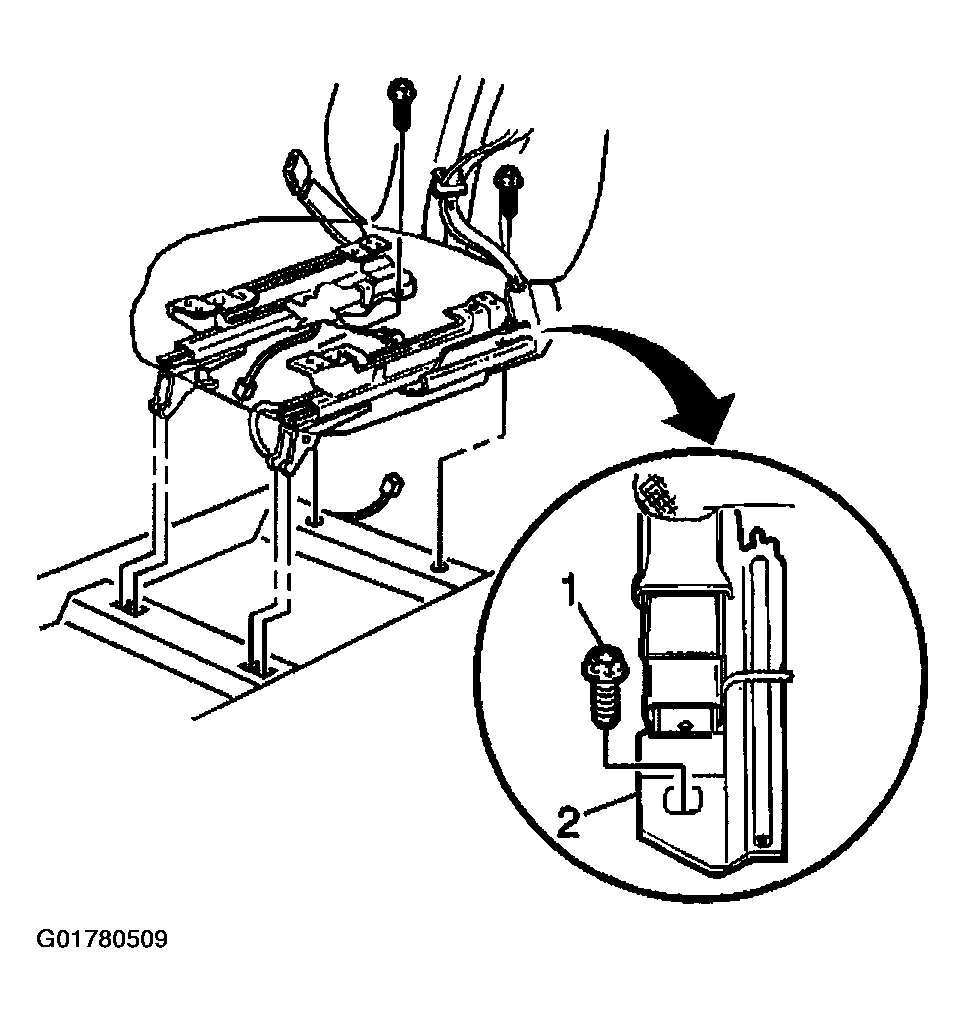

    Fig 1: Removing Seat
    G01780509Courtesy of GENERAL MOTORS CORP.
