Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the rear seat cushion retainer (1) pressing rearward using a flat-bladed tool (3).

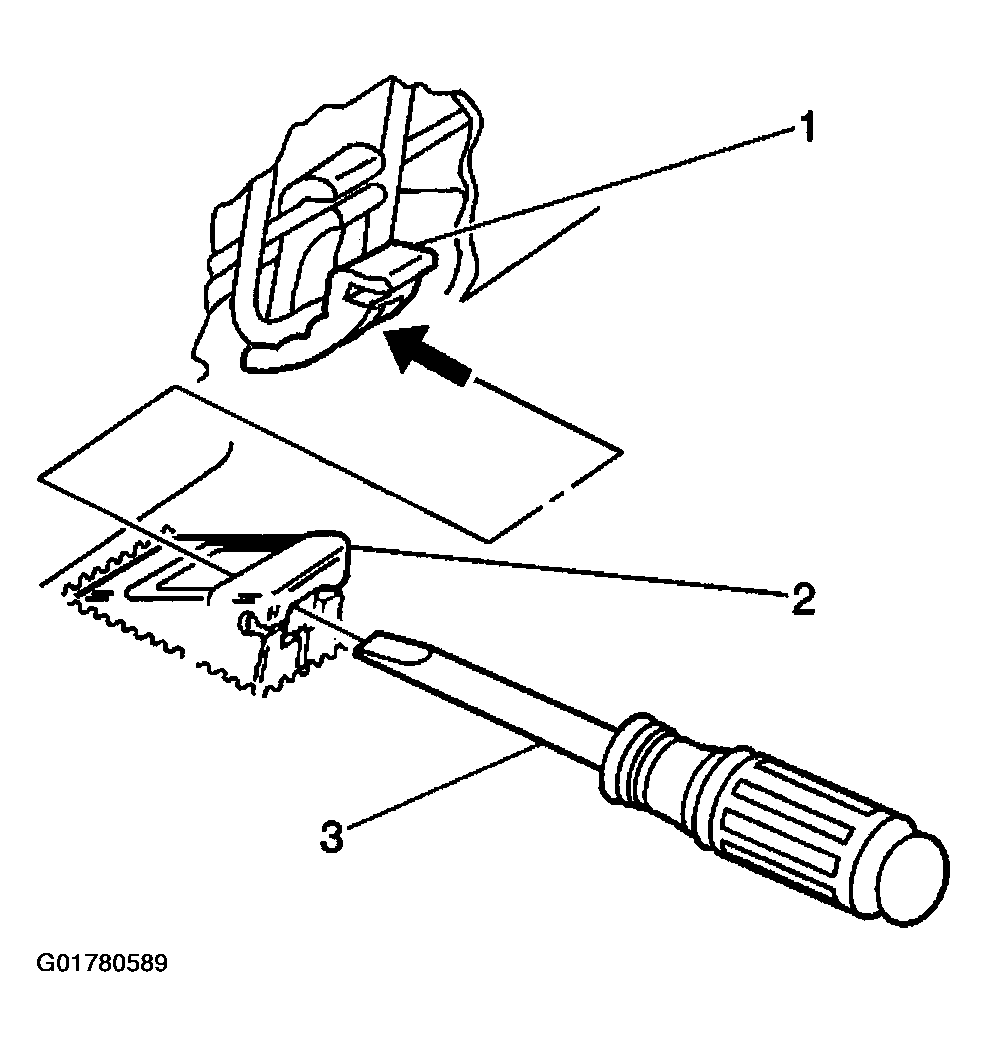

    Fig 1: Disengage Rear Seat Cushion Retainer
    G01780589Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear seat cushion by lifting upward and out.

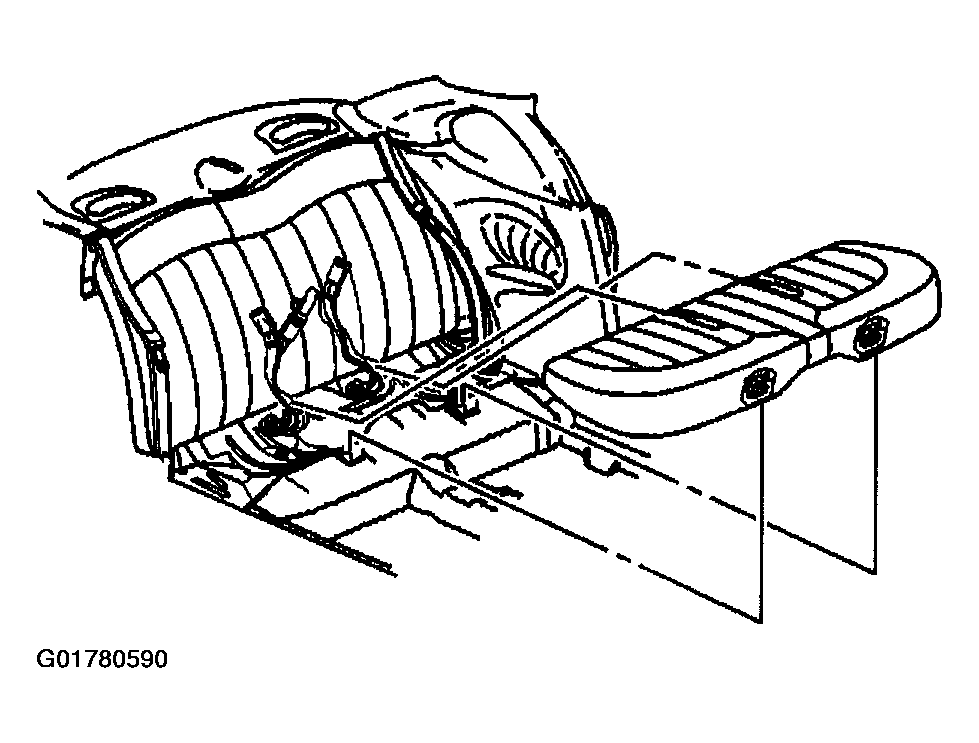

    Fig 2: Removing Rear Seat Cushion
    G01780590Courtesy of GENERAL MOTORS CORP.
