Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat cushion under the seat back and over the retainers.

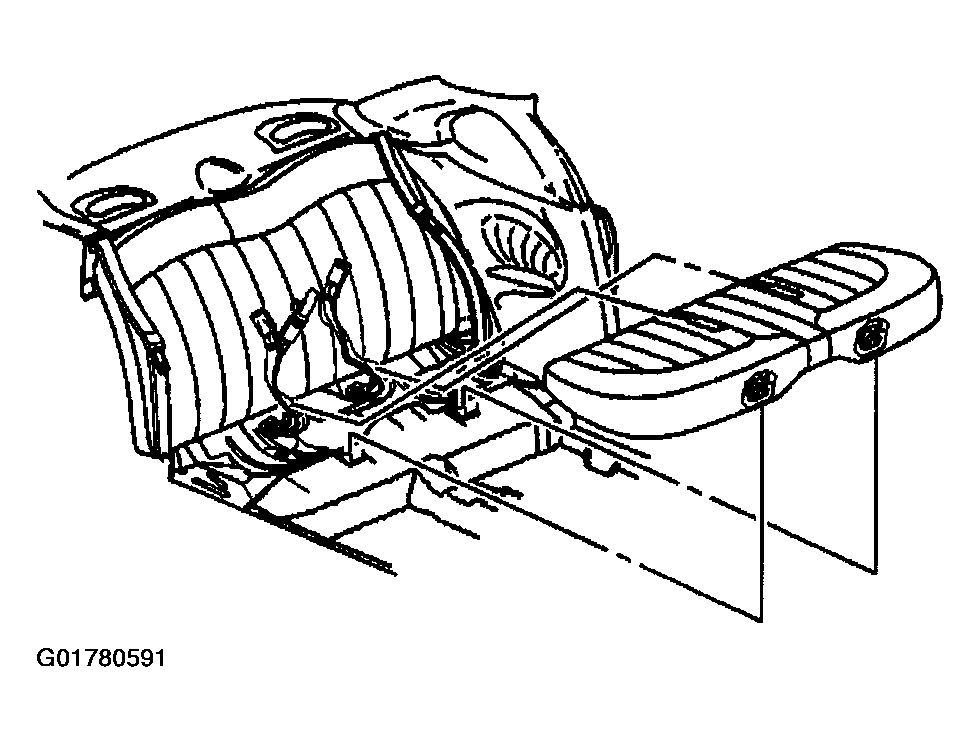

    Fig 1: Installing Rear Seat Cushion
    G01780591Courtesy of GENERAL MOTORS CORP.
  2. Press downward on the rear seat cushion in order to latch the retainer (1).

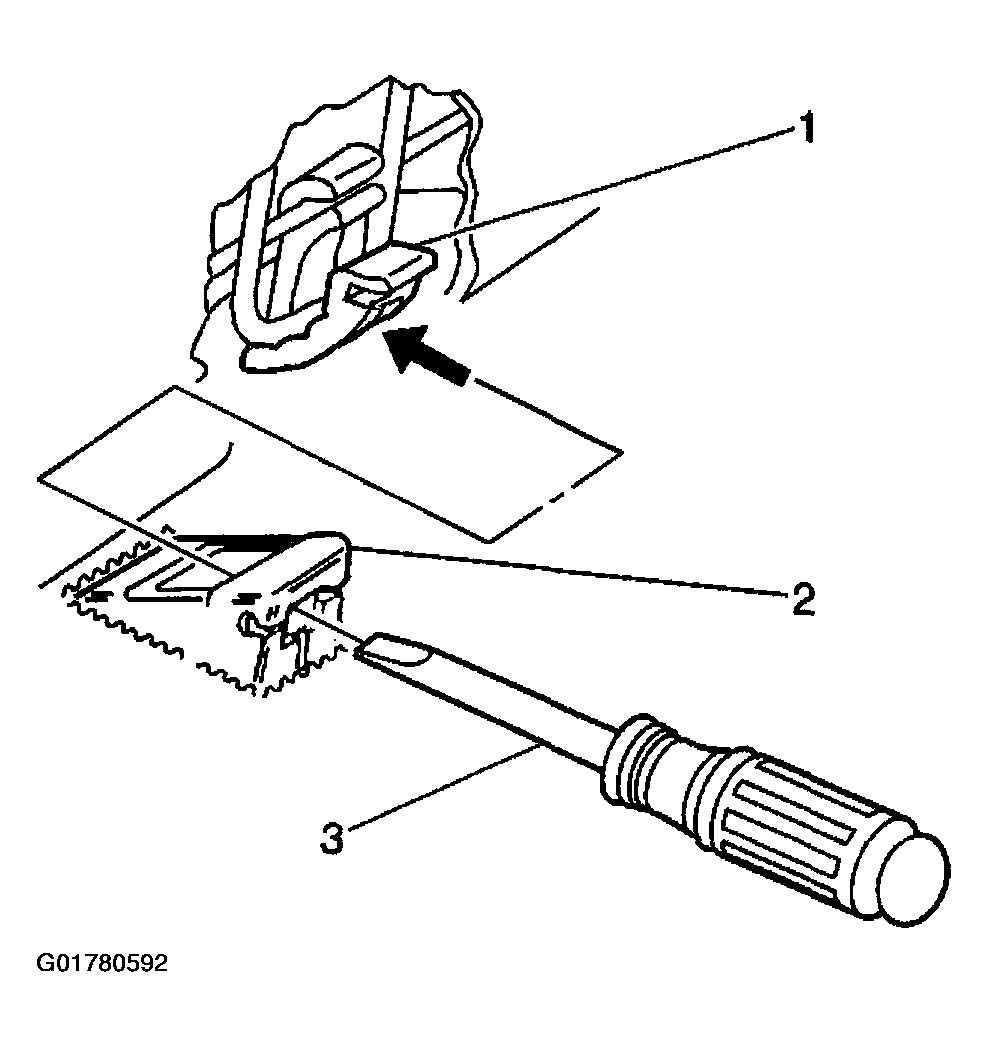

    Fig 2: Installing Rear Seat Cushion Retainer
    G01780592Courtesy of GENERAL MOTORS CORP.
