Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement .
  2. Remove the power seat switch bezel from the front seat cushion cover, if equipped.
  3. Remove the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front .
  4. Remove the front seat cushion pad from the seat frame.

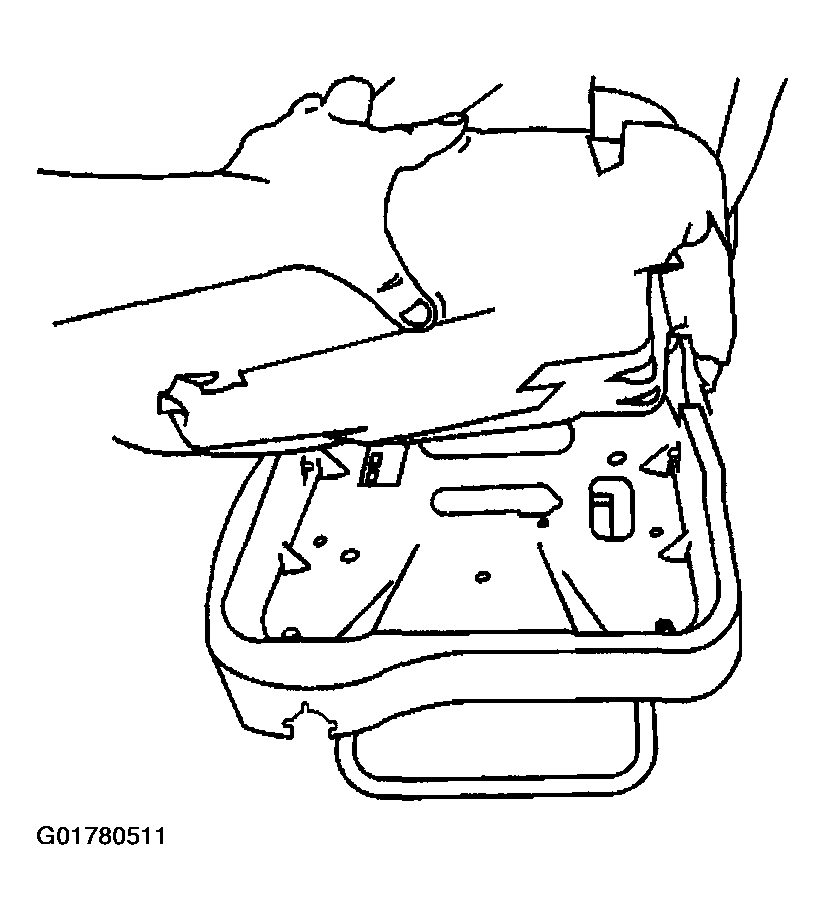

    Fig 1: Removing Front Seat Cushion
    G01780511Courtesy of GENERAL MOTORS CORP.
