Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat cushion pad to the seat frame.
  2. Install the front seat cushion cover. Refer to Seat Cushion Cover Replacement - Front .
  3. Install the power seat switch bezel to the front seat cushion cover, if equipped.
  4. Install the front seat. Refer to Seat Replacement .

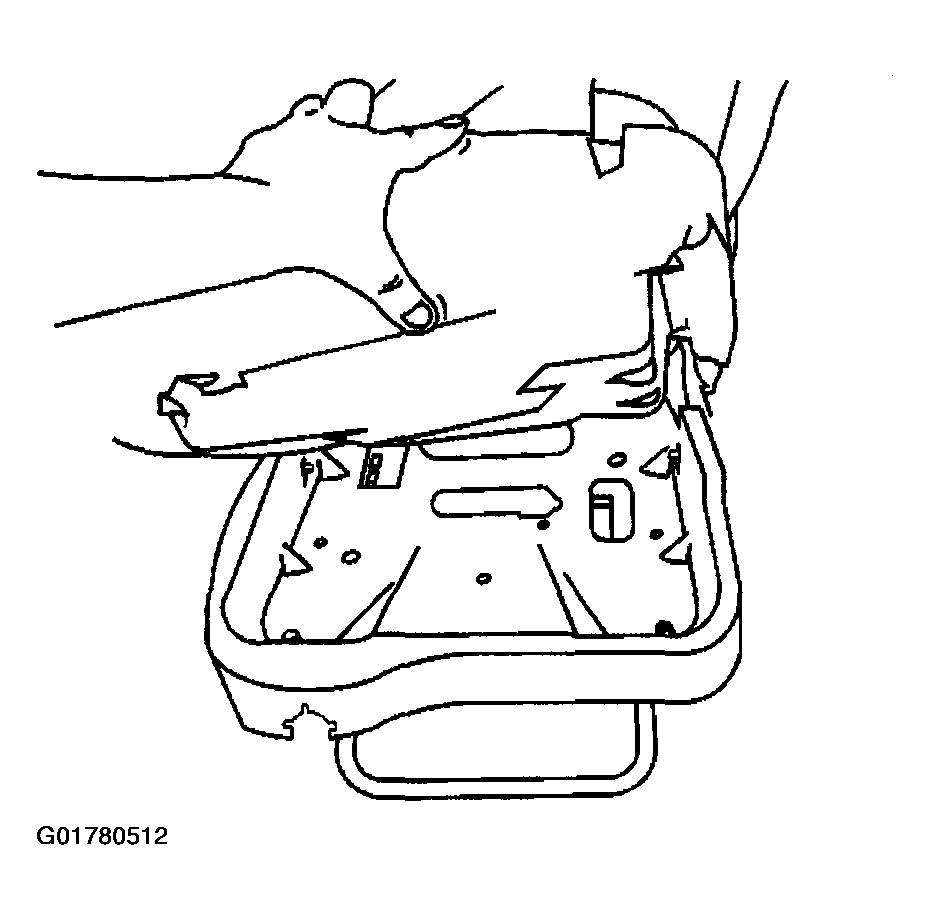

    Fig 1: Installing Front Seat Cushion
    G01780512Courtesy of GENERAL MOTORS CORP.
