Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion cover and pad from the seat cushion frame. Refer to Seat Cushion Cover Replacement - Front  .
  2. Disconnect the seat back recliner cable from the seat cushion frame.
  3. Remove the seat back recliner bolts from the seat cushion frame.
  4. Remove the seat back with recliners from the seat cushion frame.

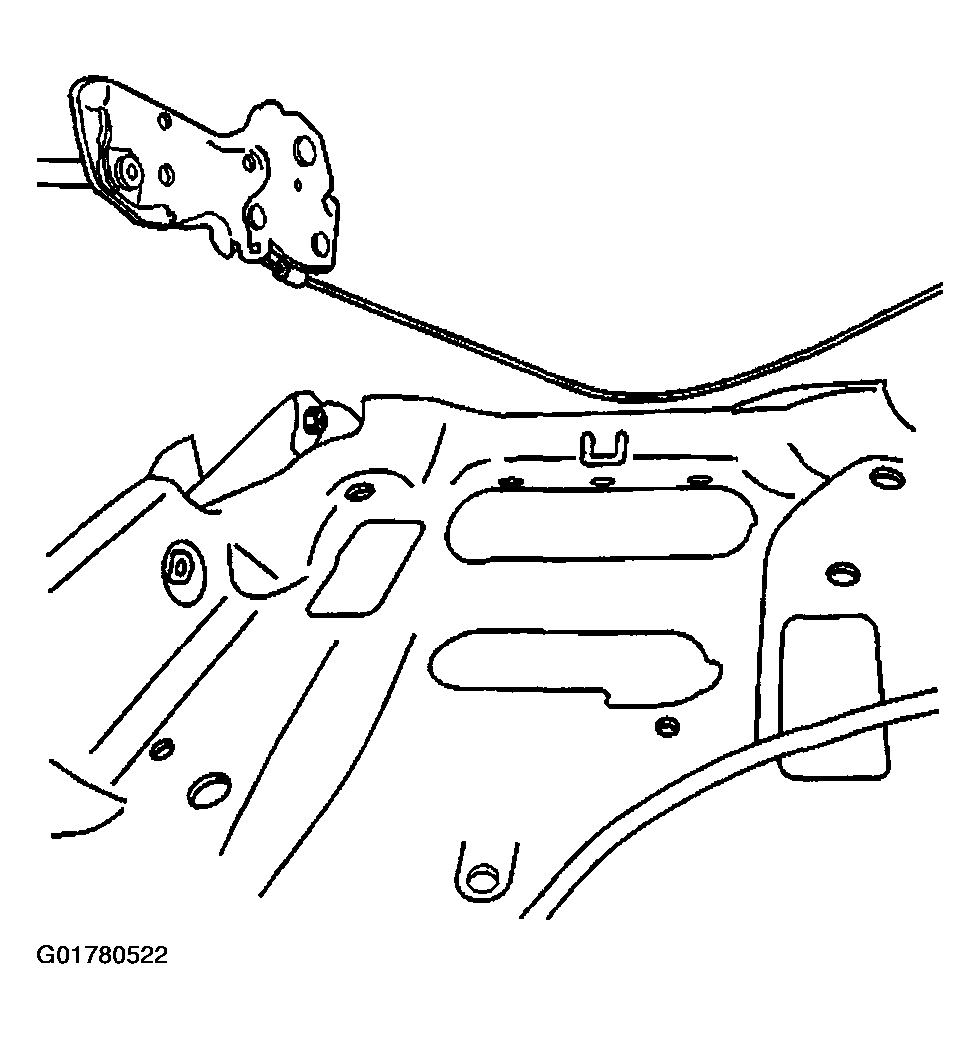

    Fig 1: Removing Seat Back Recliner Cable From Seat Cushion Frame
    G01780522Courtesy of GENERAL MOTORS CORP.
  5. Remove the power seat switch bracket screws. Remove the bracket from the seat cushion frame.
    Fig 2: Removing Power Seat Switch Bracket
    G01780523Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat adjuster bolts (1) from the seat cushion frame (2).
  7. Remove the seat adjusters (3) from the seat cushion frame (2).

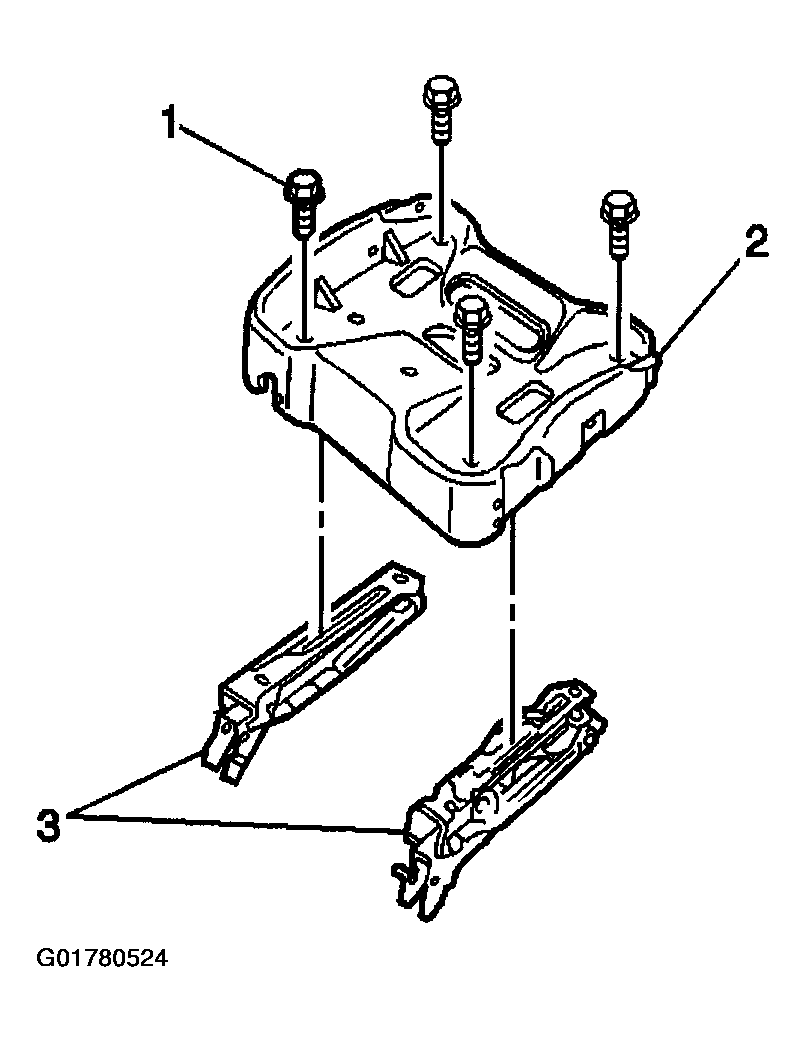

    Fig 3: Removing Seat Adjusters
    G01780524Courtesy of GENERAL MOTORS CORP.
