Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat adjuster (3) to the seat cushion frame (2).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat adjuster bolts (1) to the seat cushion frame (3).

    Tighten

    Tighten bolts to 24 N.m (18 lb ft).

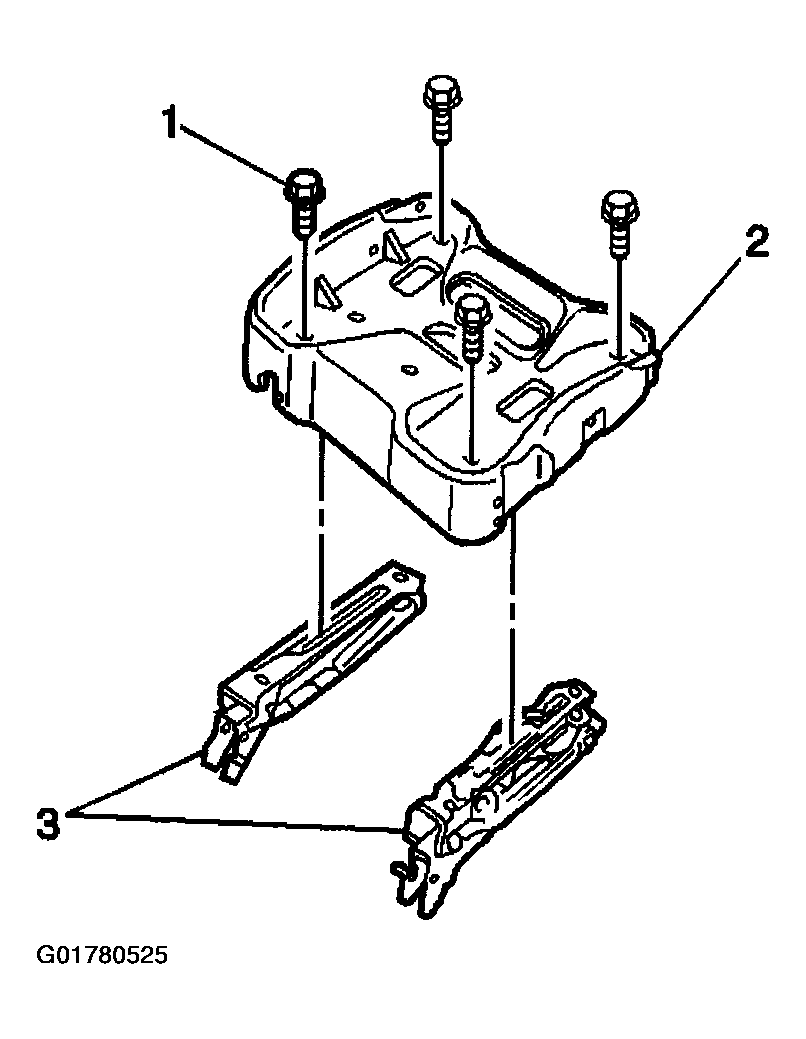

    Fig 1: Installing Seat Adjusters
    G01780525Courtesy of GENERAL MOTORS CORP.
  3. Install the power seat switch bracket to the seat cushion frame. Install the power seat switch bracket screws.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

    Fig 2: Installing Power Seat Switch Bracket
    G01780526Courtesy of GENERAL MOTORS CORP.
  4. Connect the seat back recliner cable to the seat cushion frame.
  5. Install the seat back with recliner to the seat cushion frame. Install the seat back recliner bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  6. Install the front seat cushion cover and pad to the seat cushion frame. Refer to Seat Cushion Cover Replacement - Front  .

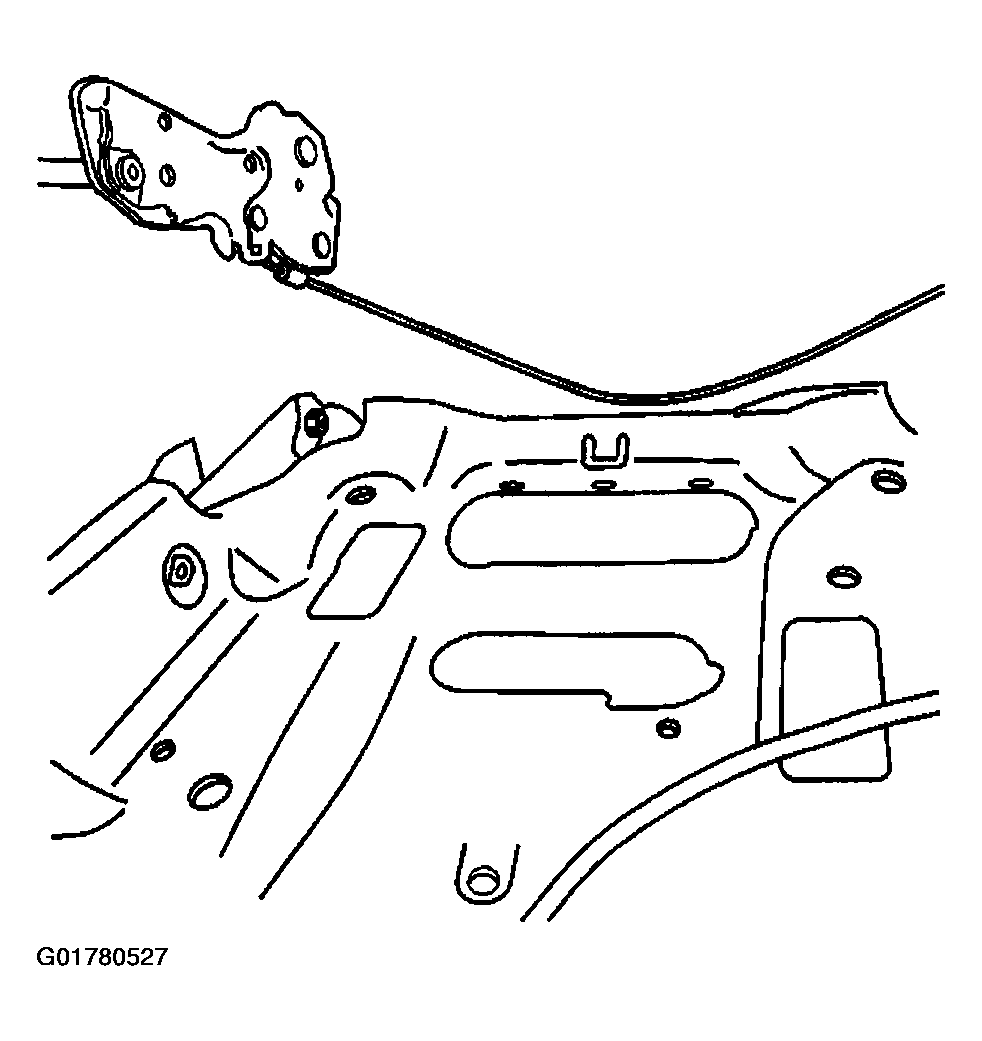

    Fig 3: Installing Seat Back Recliner Cable
    G01780527Courtesy of GENERAL MOTORS CORP.
