Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat cushion cover onto the pad.

Fig 1: Installing Seat Cushion Cover
Courtesy of GENERAL MOTORS CORP.
Hook the seat cover loops to the rear of the seat frame.

Fig 2: Hooking Seat Cover Loops To Seat Frame Rear
Courtesy of GENERAL MOTORS CORP.
Hook the seat cover loops to the front of the seat frame.

Fig 3: Hooking Seat Cover Loops To Seat Frame Front
Courtesy of GENERAL MOTORS CORP.
Adjust seat cushion cover to a desired appearance.

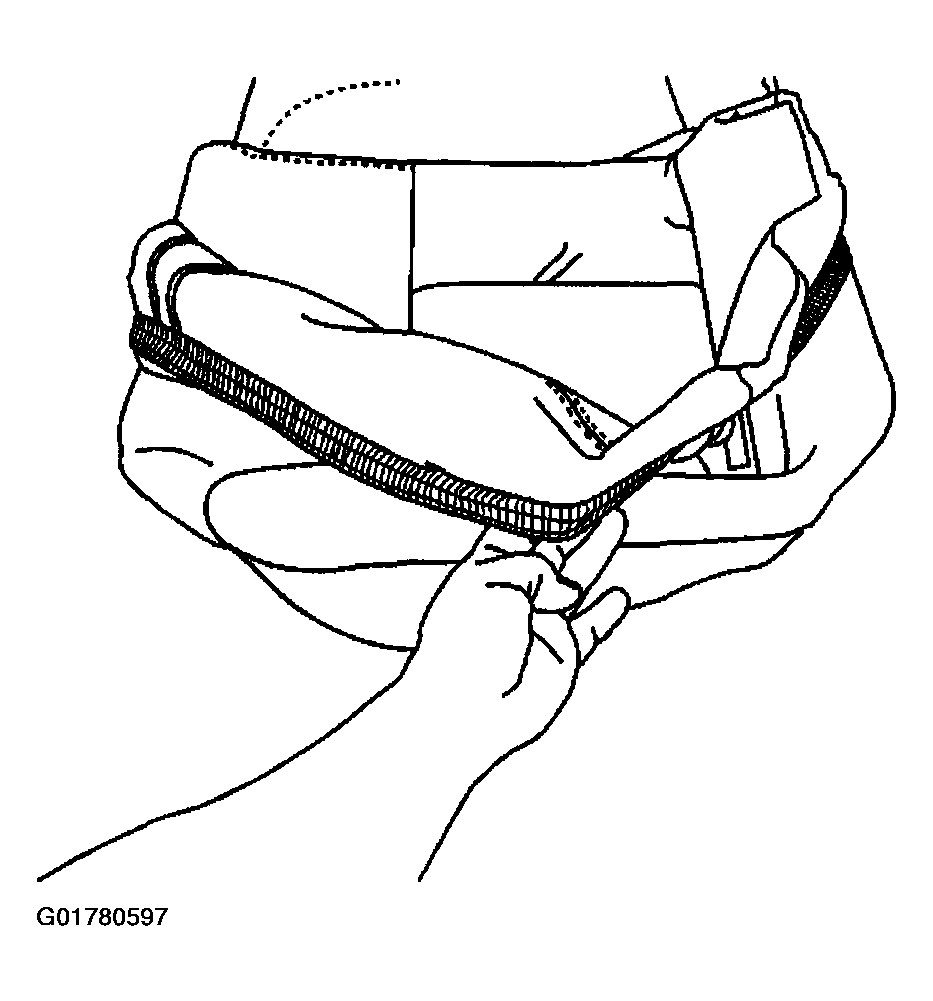

With firm hand pressure fasten the hook and the loop retainers.

Fig 4: Fastening Hook & Loop Retainers
Courtesy of GENERAL MOTORS CORP.

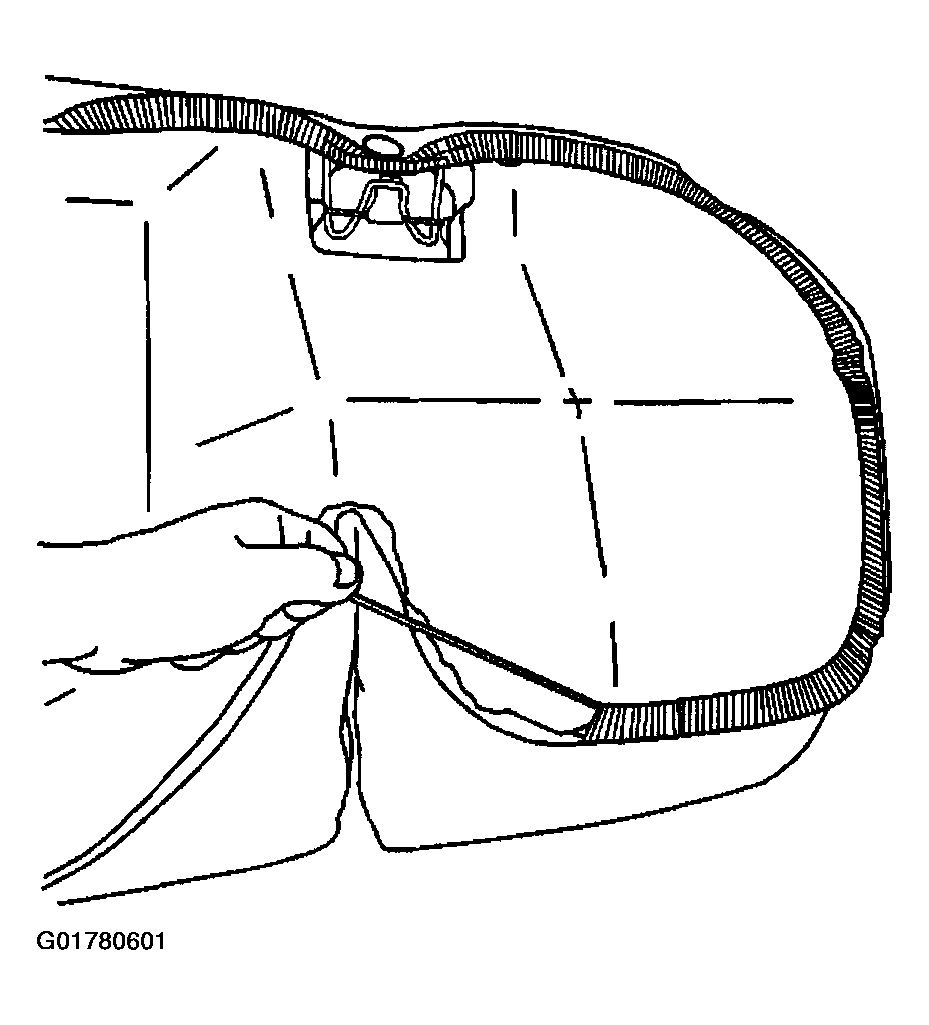

Pull the draw string tight.

Fig 5: Pulling Draw String
Courtesy of GENERAL MOTORS CORP.

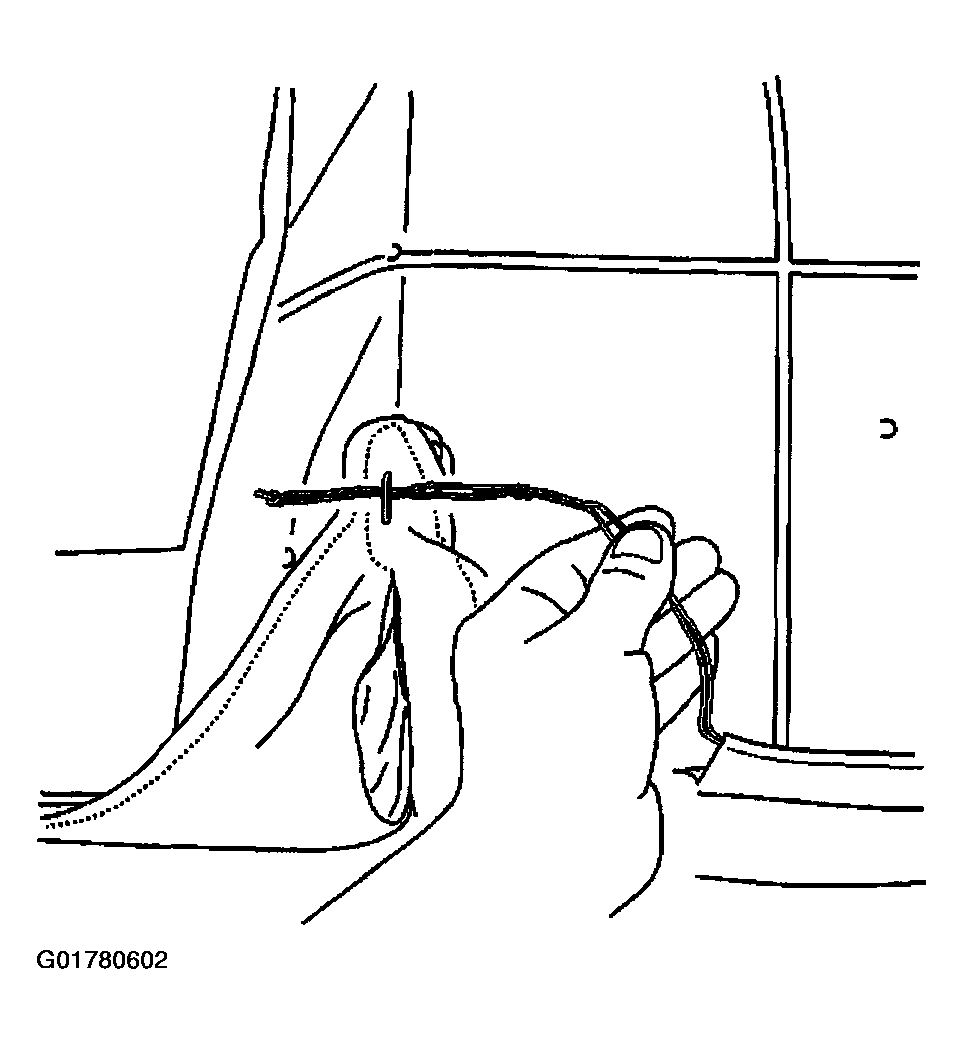

Pull the draw string through the tabs on the seat frame and tie off.
Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear .

Fig 6: Pulling Draw String Through Tabs On Seat Frame
Courtesy of GENERAL MOTORS CORP.
