Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to Seat Replacement .
  2. Remove the seat back recliner handle from the recliner mechanism. Refer to Seat Back Recliner Handle Replacement - Front .
  3. Remove the power seat switch bezel from the cushion cover, if equipped.
  4. Unfasten the J-hook retainers from the sides of the seat cushion cover.

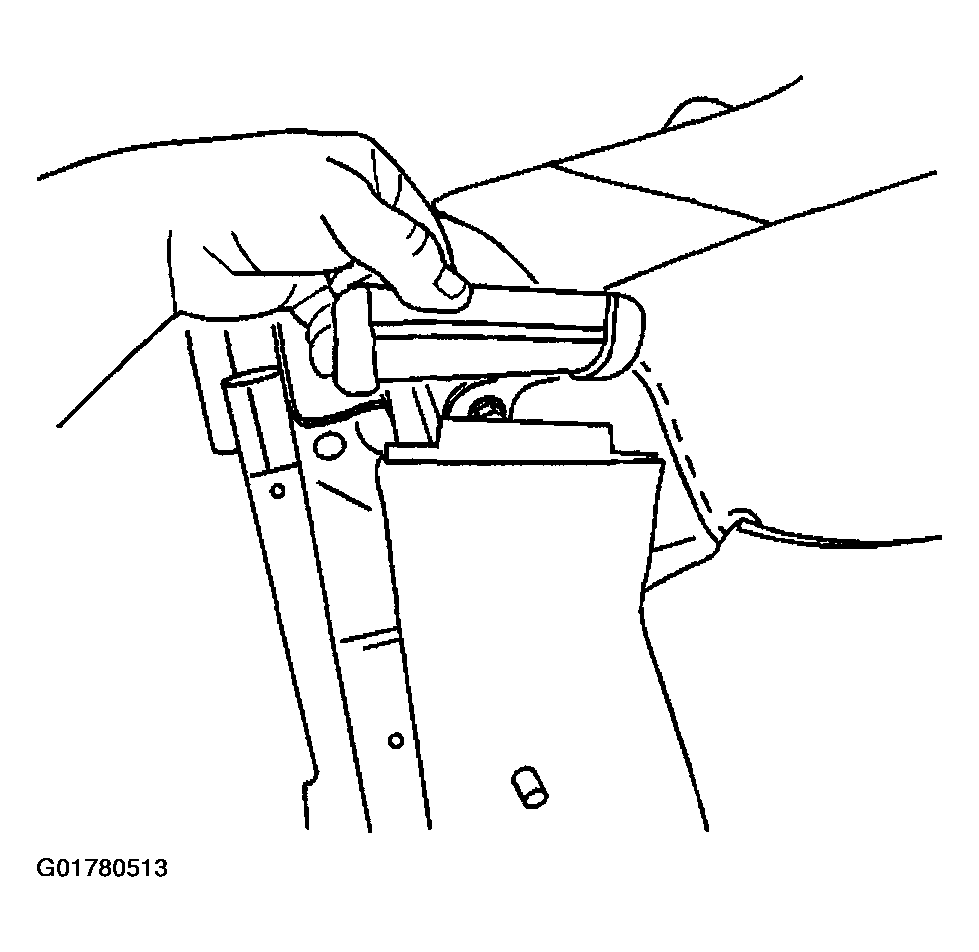

    Fig 1: Unfastening Side J-Hook Retainers
    G01780513Courtesy of GENERAL MOTORS CORP.
  5. Unfasten the J-hook retainers for the cushion cover from the seat frame.

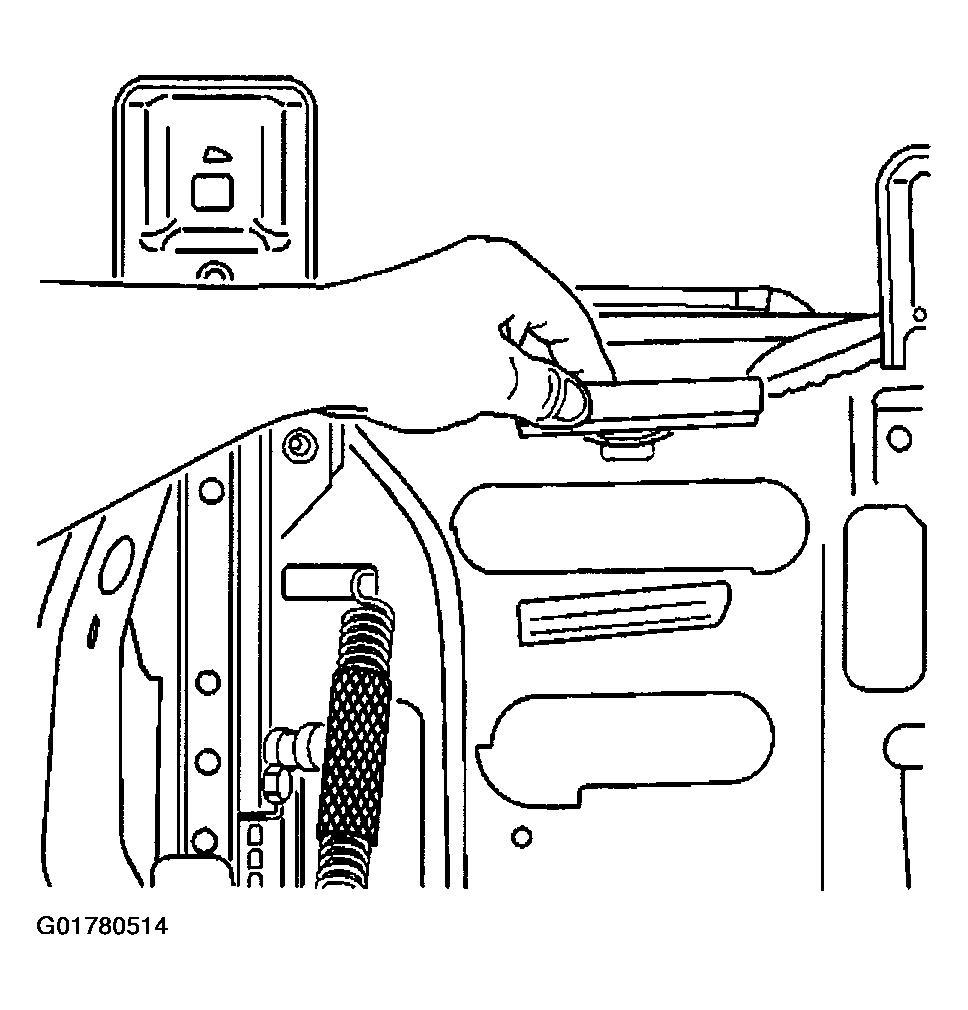

    Fig 2: Unfastening Cushion Cover J-Hook Retainers
    G01780514Courtesy of GENERAL MOTORS CORP.
  6. Route the rear seat cushion cover forward between the seat back and the cushion.

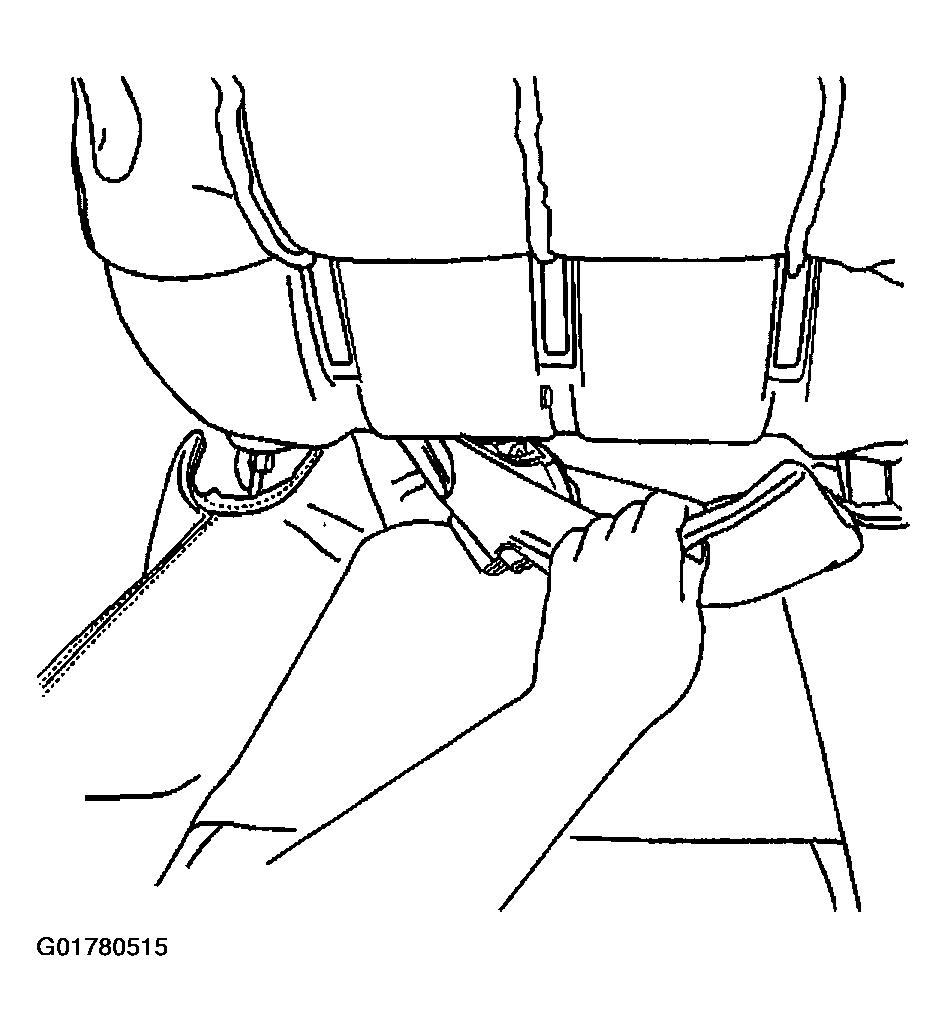

    Fig 3: Routing Rear Seat Cushion Cover Forward
    G01780515Courtesy of GENERAL MOTORS CORP.
  7. Unfasten the hook and loop strips which retain the cushion cover to the pad.
  8. Remove the cushion cover from the pad.

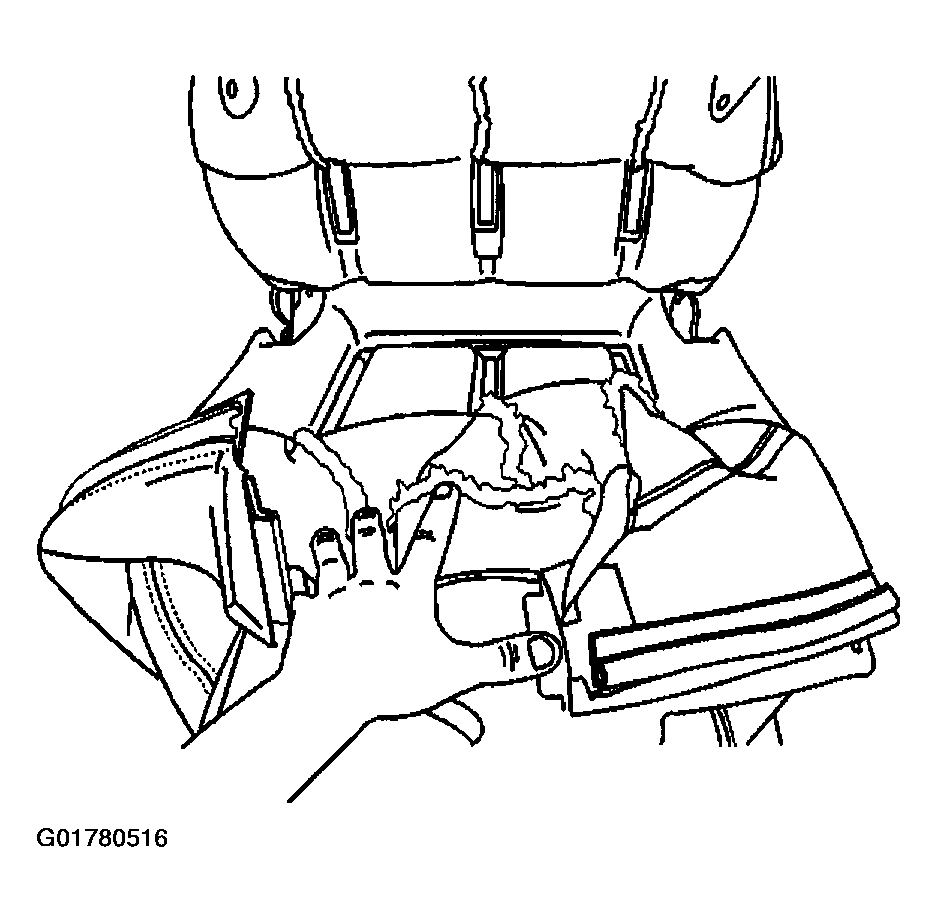

    Fig 4: Removing Cushion Cover
    G01780516Courtesy of GENERAL MOTORS CORP.
