Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cushion cover to the pad.

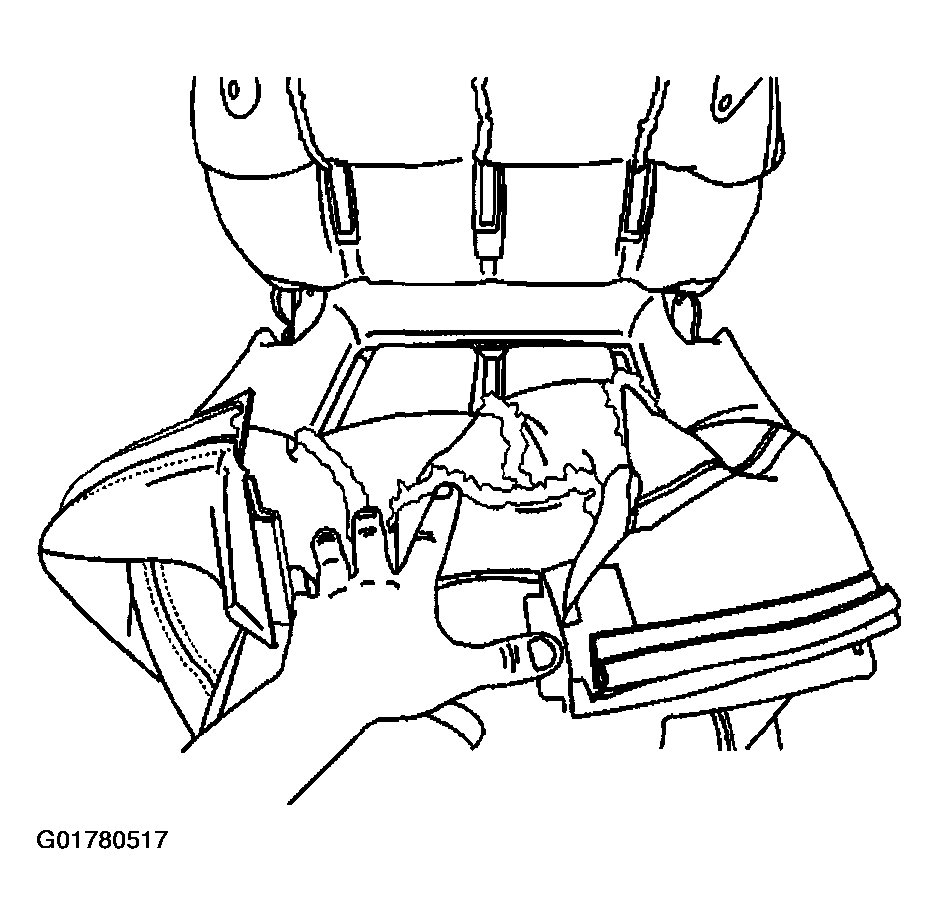

    Fig 1: Installing Cushion Cover
    G01780517Courtesy of GENERAL MOTORS CORP.
  2. Route the rear cushion cover rearward between the seat back and the pad.

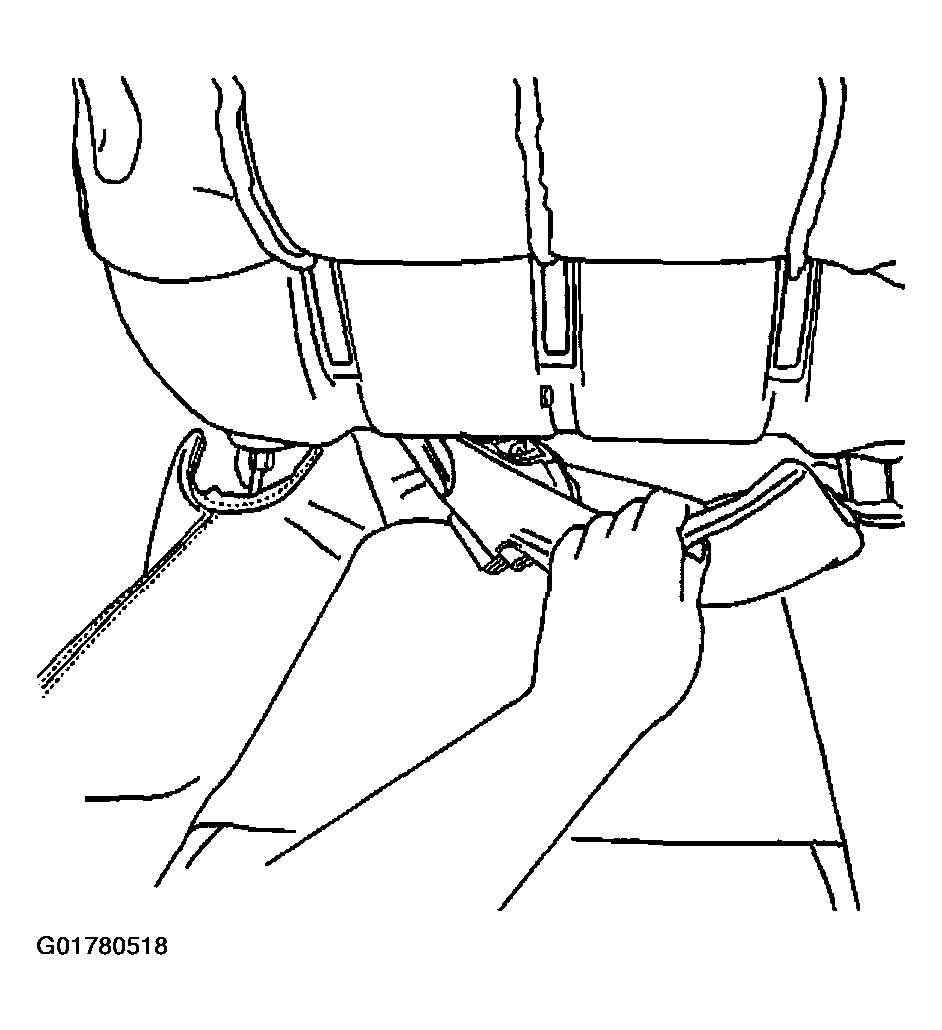

    Fig 2: Routing Rear Seat Cushion Cover Rearward
    G01780518Courtesy of GENERAL MOTORS CORP.
  3. Fasten the J-hook retainers for the cushion cover to the seat frame.

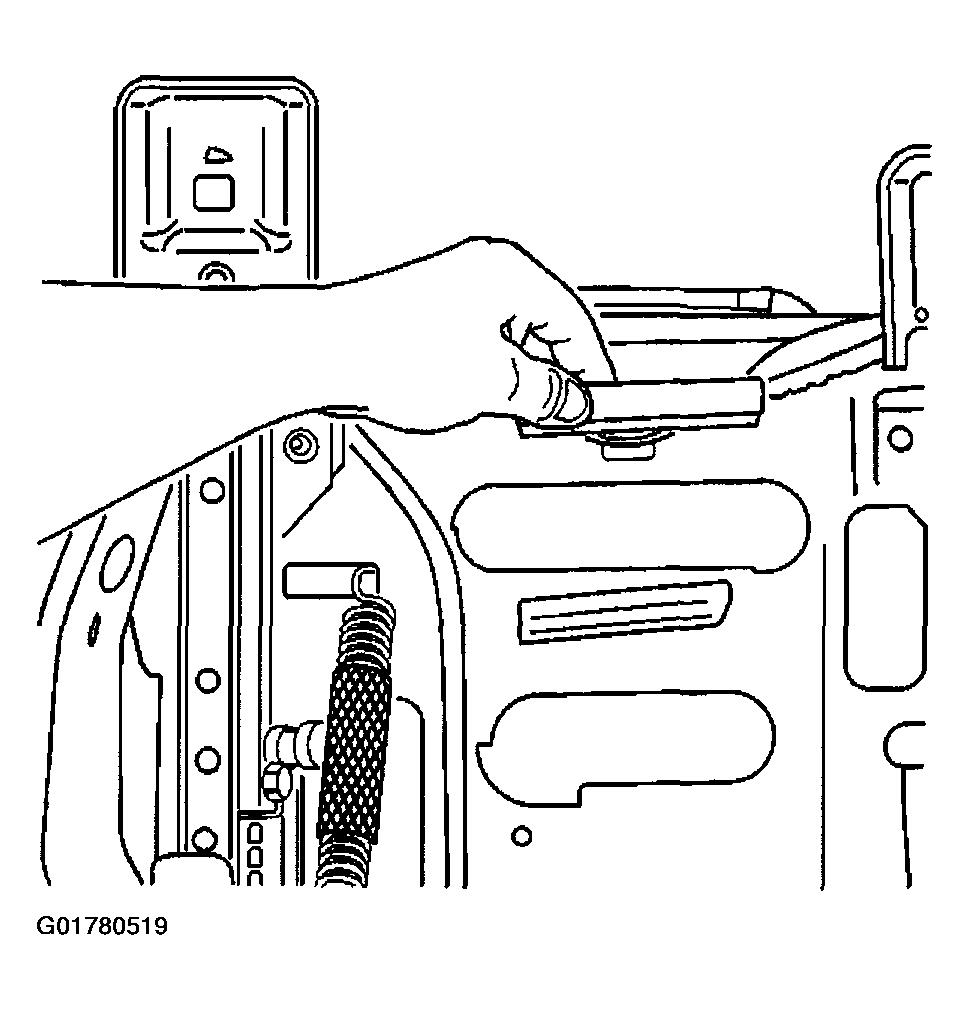

    Fig 3: Fastening Cushion Cover J-Hook Retainers
    G01780519Courtesy of GENERAL MOTORS CORP.
  4. Fasten the J-hook retainers to the sides of the cushion cover.

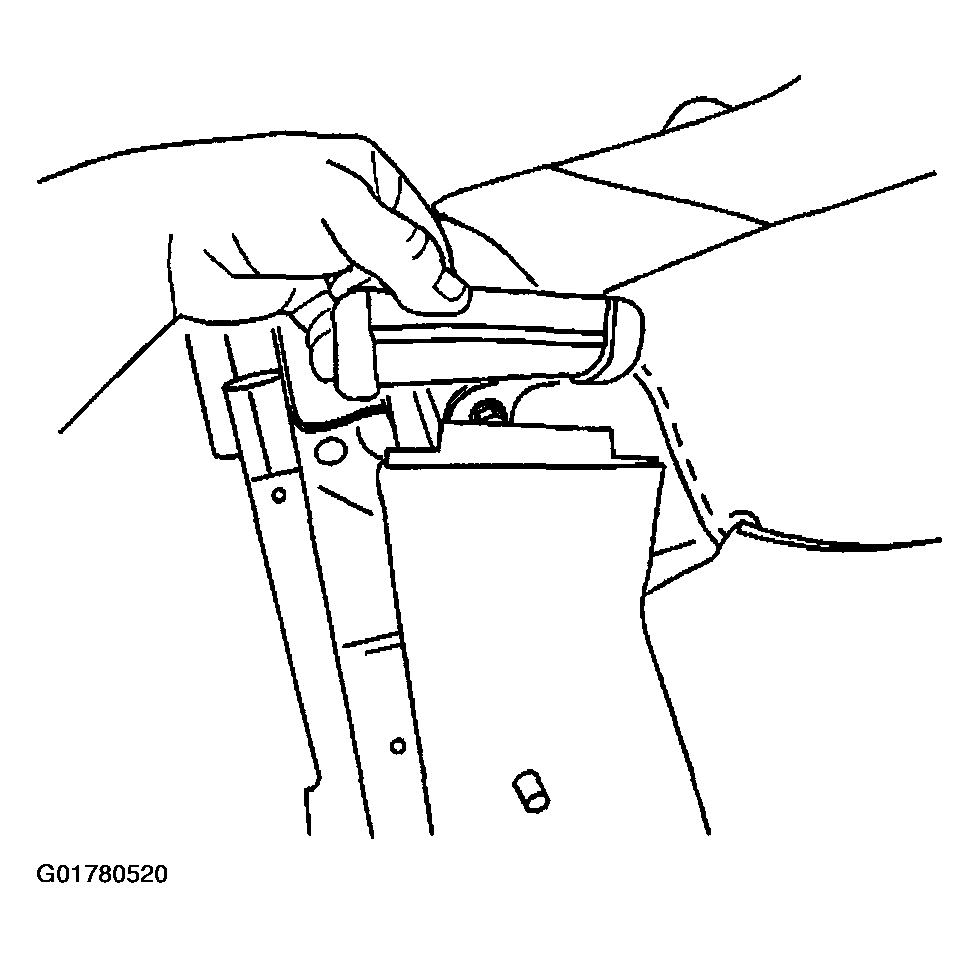

    Fig 4: Fastening Side J-Hook Retainers
    G01780520Courtesy of GENERAL MOTORS CORP.
  5. Fasten the hook and loop strips which retain the cushion cover to the pad. Press the strips into place until fully seated.
  6. Install the power seat switch bezel to the cushion cover, if equipped.
  7. Install the seat back recliner handle to the recliner mechanism. Refer to Seat Back Recliner Handle Replacement - Front  .
  8. Install the front bucket seat. Refer to Seat Replacement  .
    Fig 5: Installing Front Bucket Seat
    G01780521Courtesy of GENERAL MOTORS CORP.
