Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion from the vehicle. Refer to Seat Cushion Replacement - Rear  .
  2. Remove the stationary rear seat back bolts (1) from the lower U-brackets.

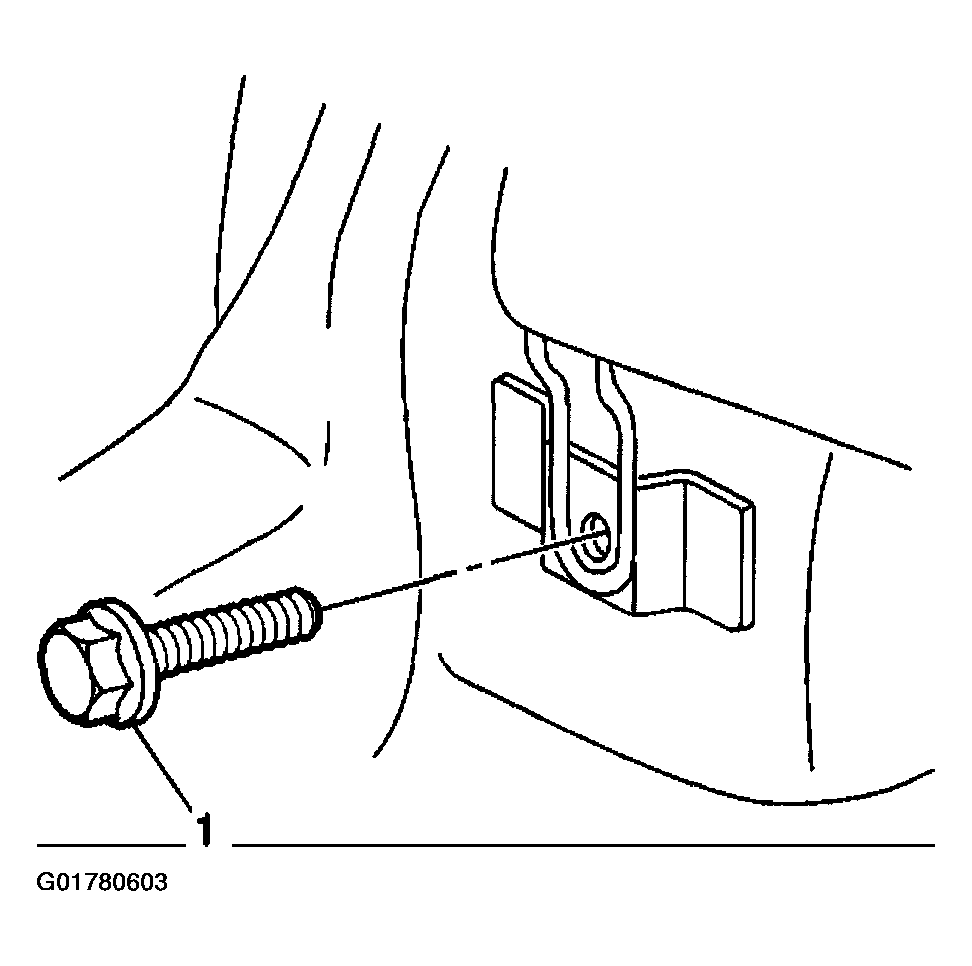

    Fig 1: Removing Stationary Rear Seat Back Bolts
    G01780603Courtesy of GENERAL MOTORS CORP.
  3. Remove the stationary rear seat back by lifting up and disengaging the T-hooks from the access holes in the rear shelf panel.
  4. Remove the stationary rear seat back from the vehicle.

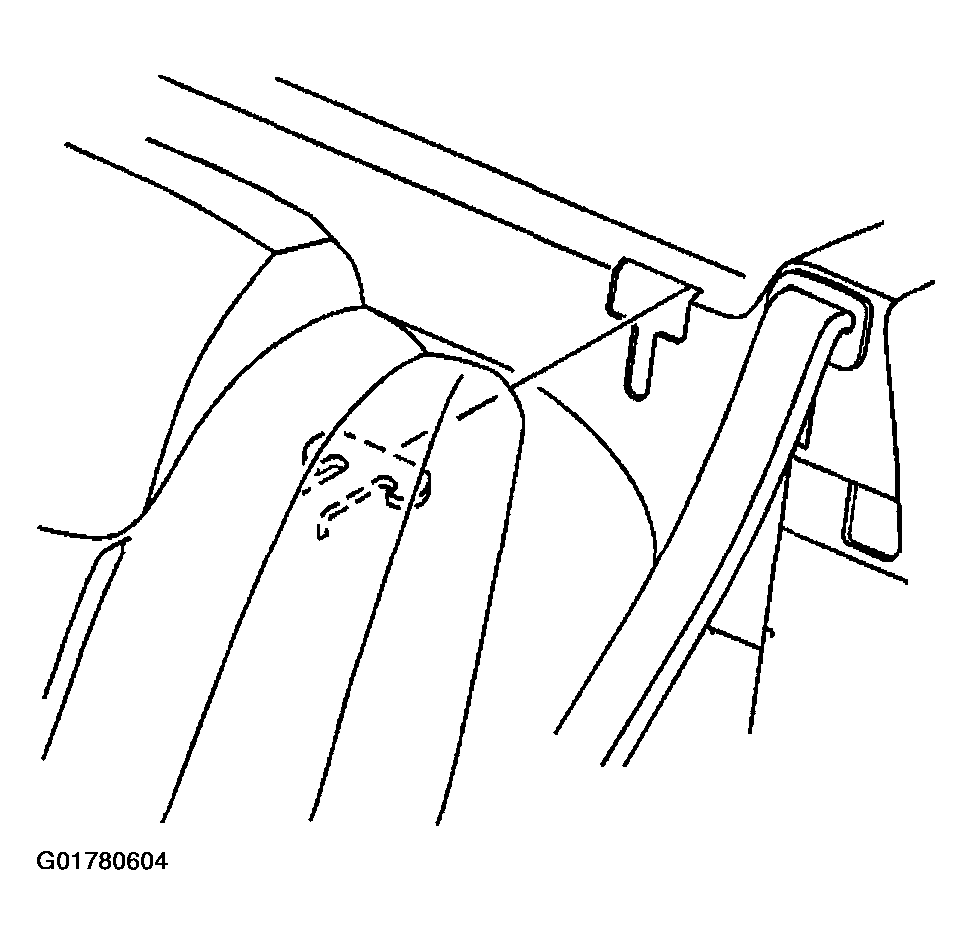

    Fig 2: Removing Stationary Rear Seat Back
    G01780604Courtesy of GENERAL MOTORS CORP.
