Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the shoulder belts away from the seat back area.
  2. Install the stationary rear seat back (1) into vehicle.

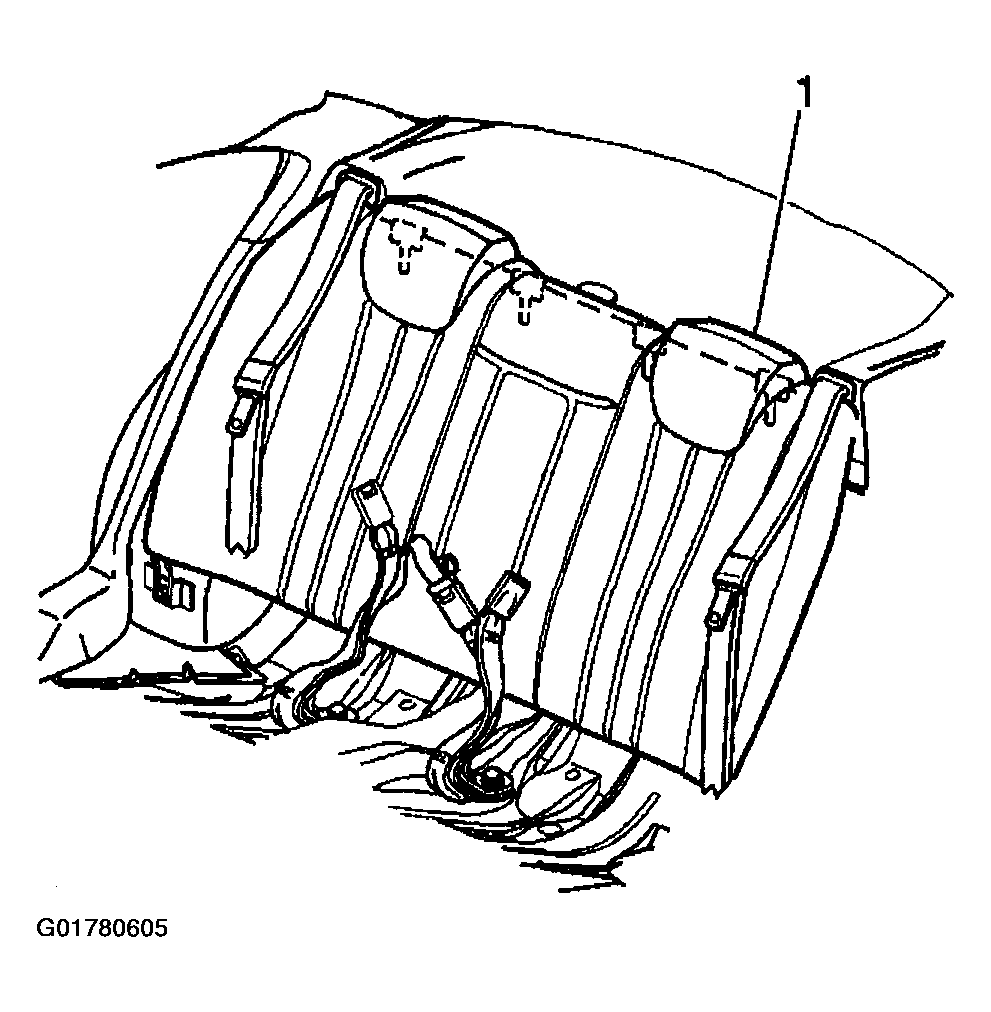

    Fig 1: Installing Stationary Rear Seat Back
    G01780605Courtesy of GENERAL MOTORS CORP.
  3. Position and engage the stationary rear seat back T-hooks into the access holes in the rear shelf panel.
  4. Pull forward on the top edge of the stationary rear seat back along the rear shelf panel in order to ensure that all four attaching hooks are properly aligned.

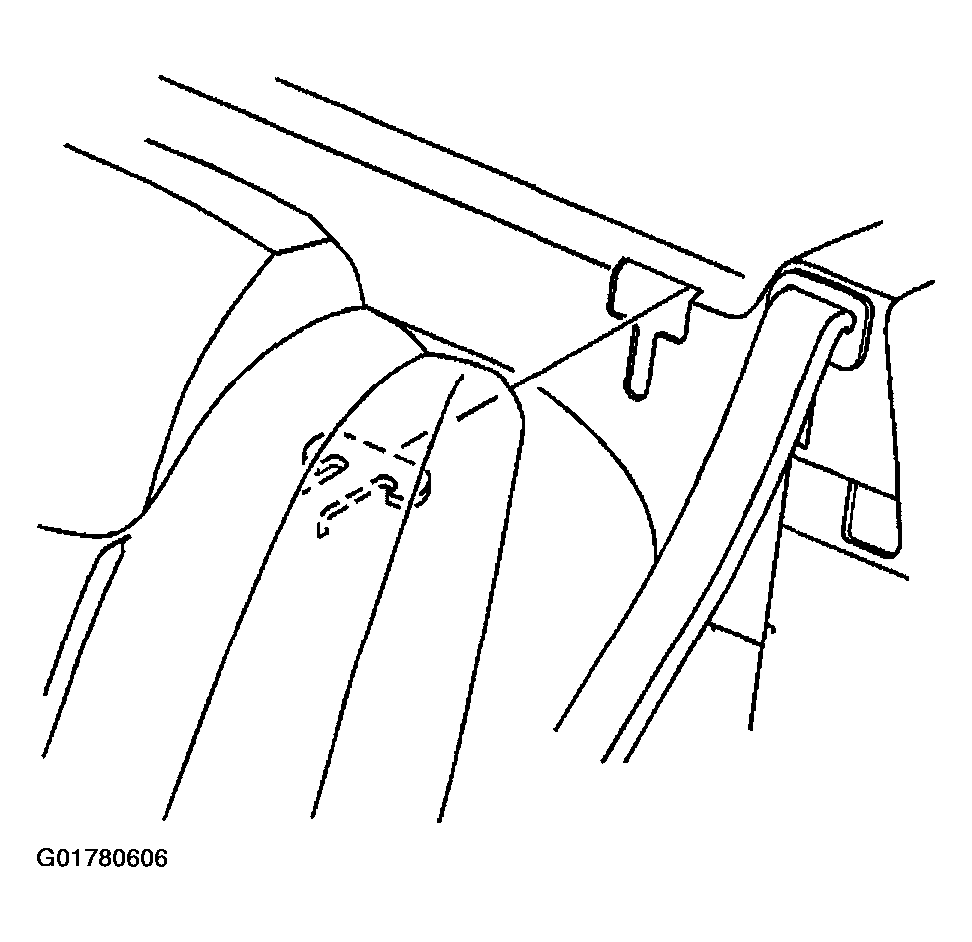

    Fig 2: Locating Attaching Hooks
    G01780606Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the stationary rear seat back bolts (1) into the lower U-brackets.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  6. Install the rear seat cushion into the vehicle. Refer to Seat Cushion Replacement - Rear  .

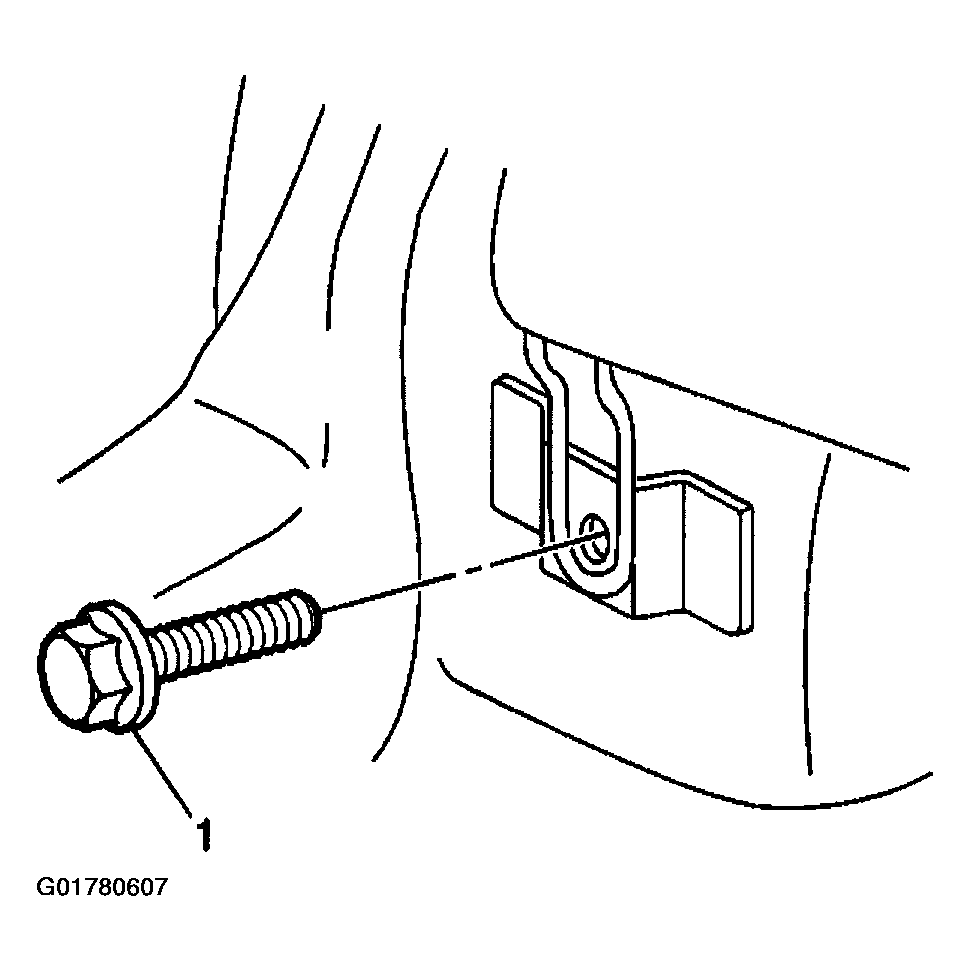

    Fig 3: Installing Stationary Rear Seat Back Bolts
    G01780607Courtesy of GENERAL MOTORS CORP.
