Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Important: The following procedure is for both the right and left rear split folding seat backs.

Open the rear compartment lid.
Pull the release handles for the rear split folding seat backs.
Fold down the split folding seat backs slightly to release the seat back from the seat back latch.
With a flat-bladed tool release the locking mechanism for the inboard pivot bolt at the center pivot support.
Right side shown, left side similar.
Lift up the seat back. This will disconnect the inboard pivot bolt from the center pivot support.

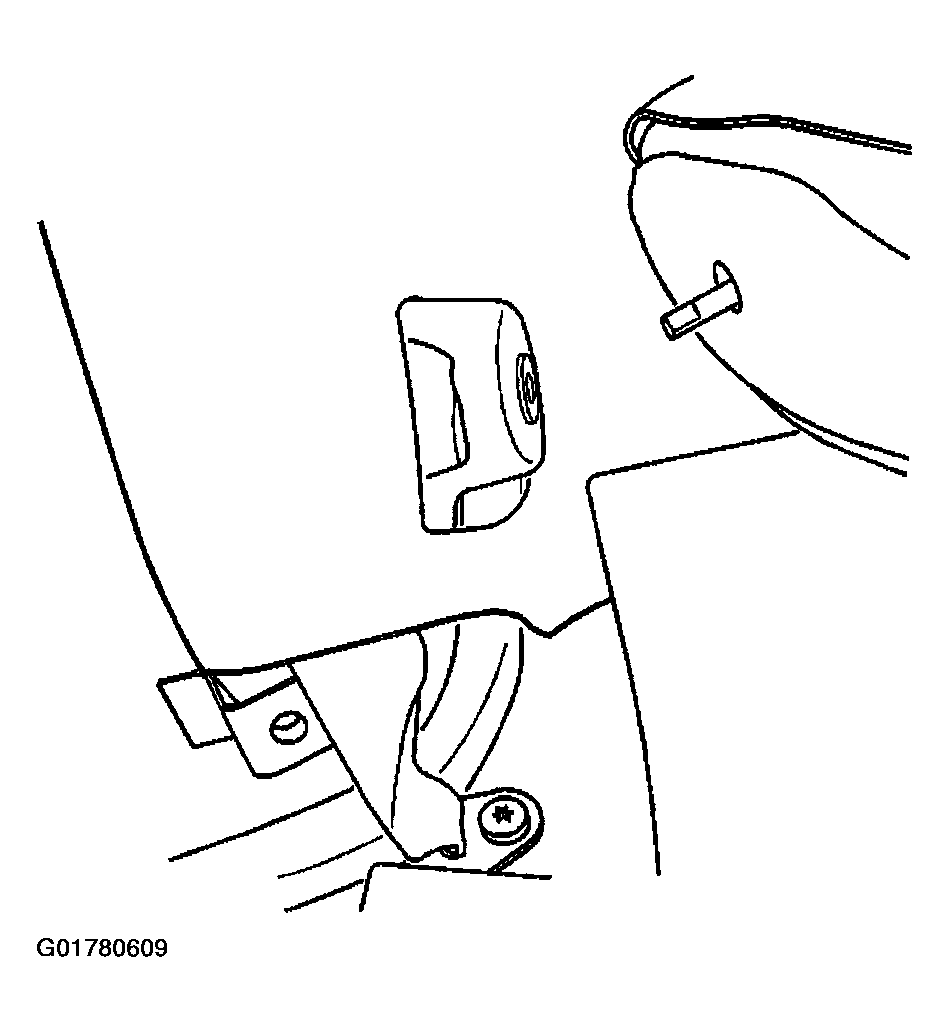

Fig 1: Releasing Inboard Pivot Bolt Locking Mechanism
Courtesy of GENERAL MOTORS CORP.
Slide the seat back towards the center of the vehicle to disconnect the outboard pivot pin from the wheelhouse bracket.
Right side shown, left side similar.
Remove the seat back from the vehicle.

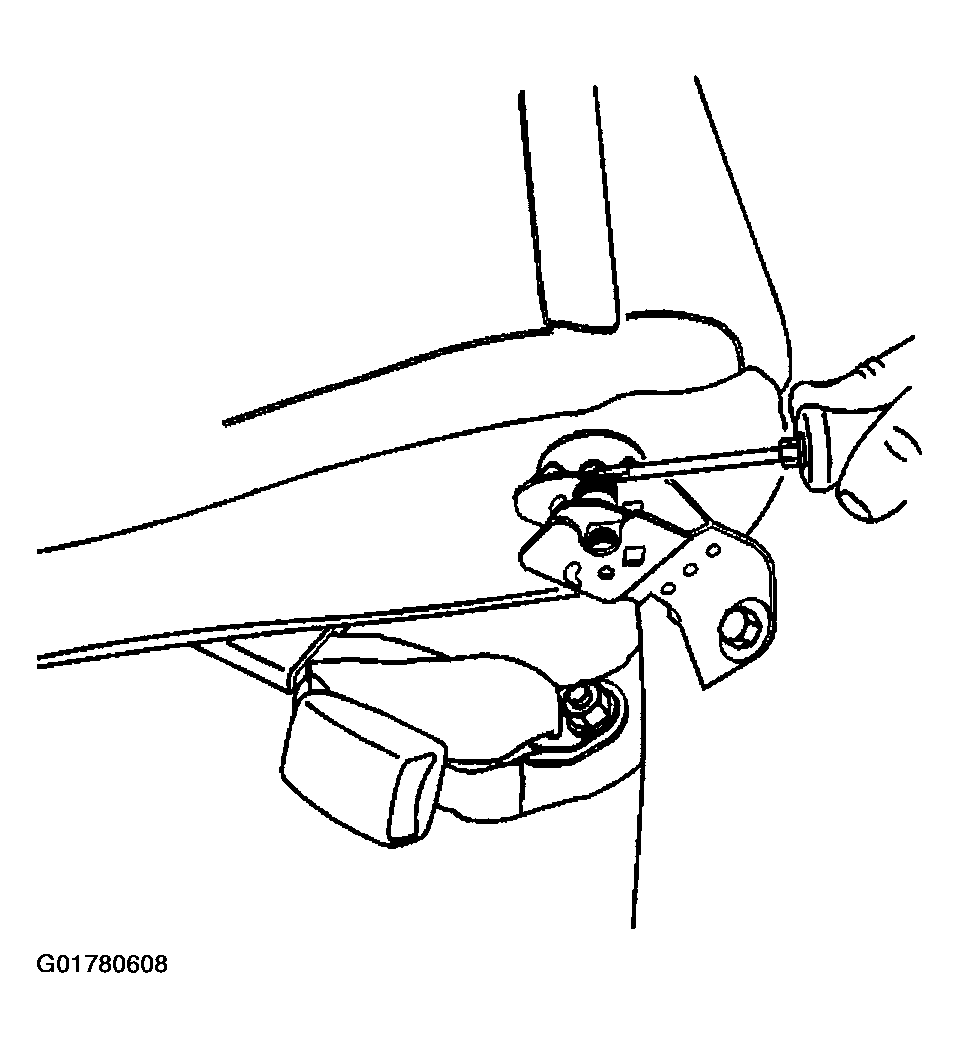

Fig 2: Removing Seat Back
Courtesy of GENERAL MOTORS CORP.
