Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back into the vehicle. Align and insert the outboard pivot pin into the wheelhouse bracket.

    Right side shown, left side similar.

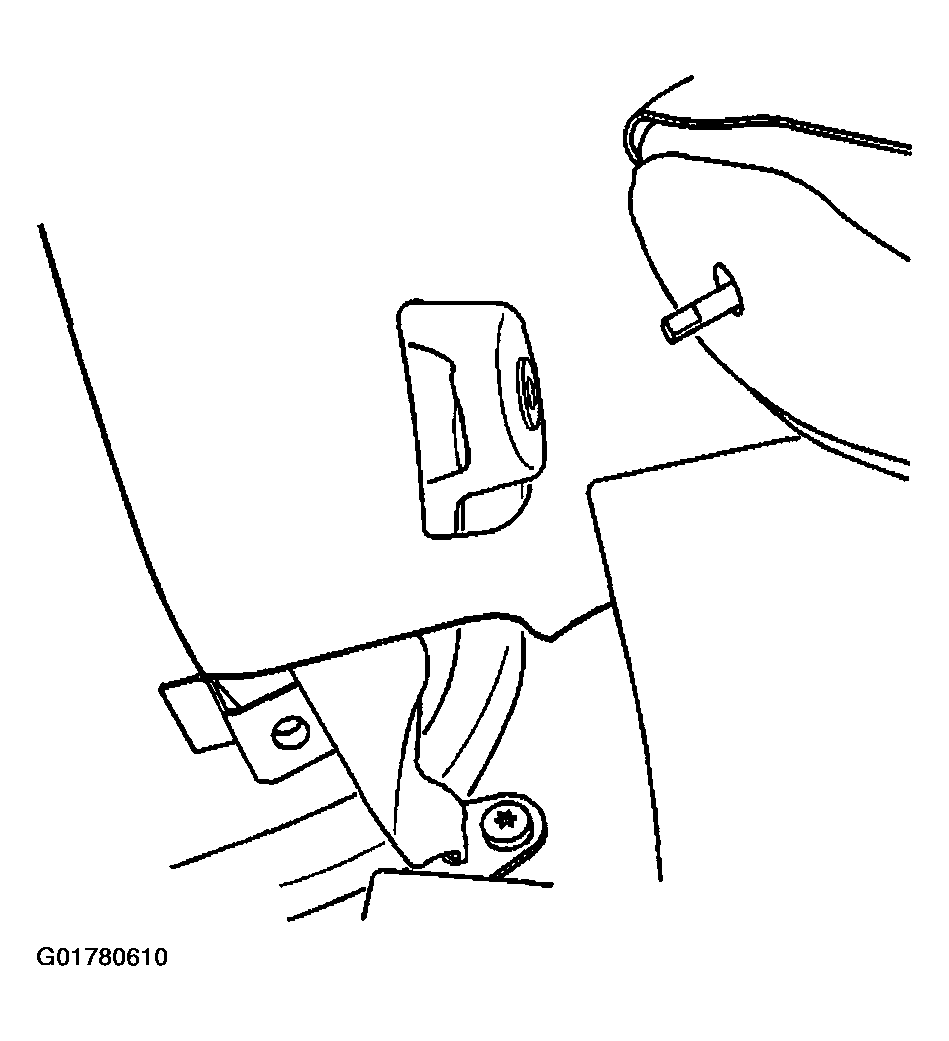

    Fig 1: Installing Seat Back
    G01780610Courtesy of GENERAL MOTORS CORP.
  2. Open the locking mechanism for the center pivot support.

    Right side shown, left side similar.

  3. Install the inboard pivot bolt to the center pivot support
  4. Close the locking mechanism for the center pivot support. This will connect the inboard pivot bolt to the center pivot support.
  5. Check the rear split folding seat backs for proper operation.
  6. Return the seat back to the original position.
  7. Close the rear compartment lid.

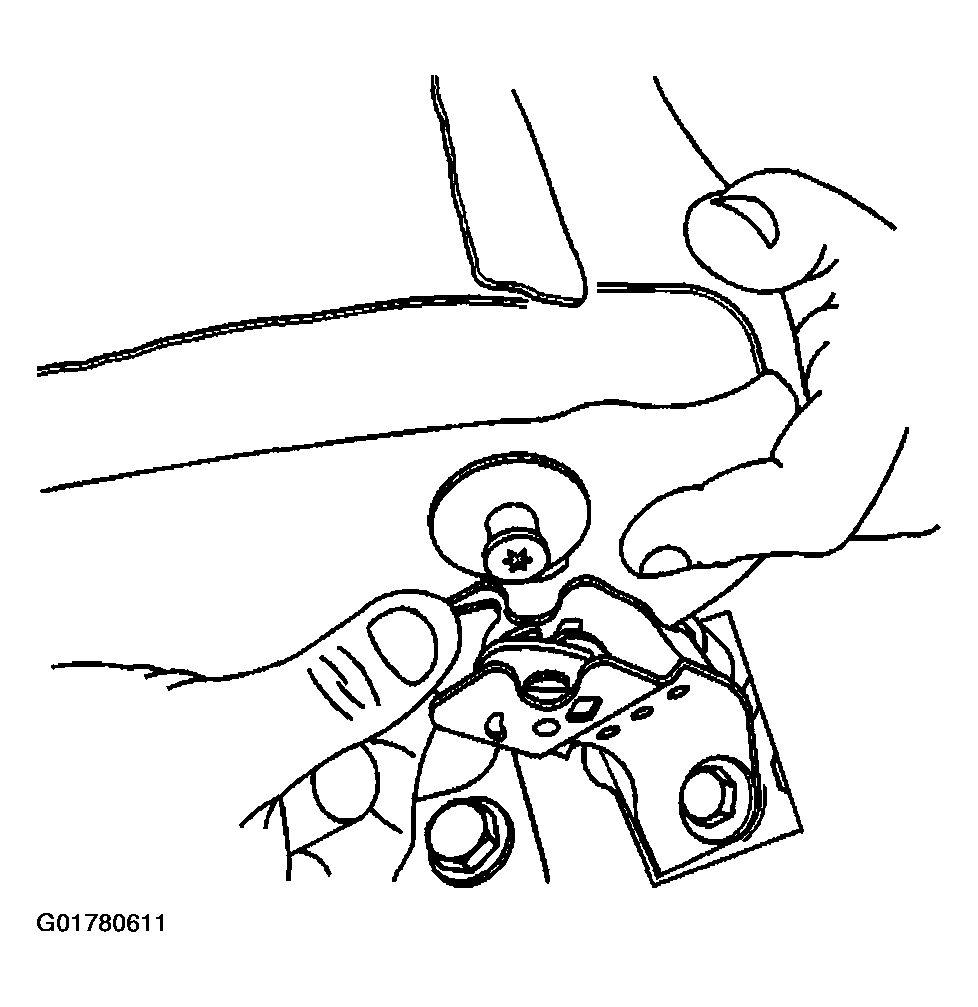

    Fig 2: Installing Inboard Pivot Bolt
    G01780611Courtesy of GENERAL MOTORS CORP.
