Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to Seat Replacement  .
  2. Position the seat back to the most forward position.
  3. Unfasten the J-hook retainer at the bottom of the seat back cover.

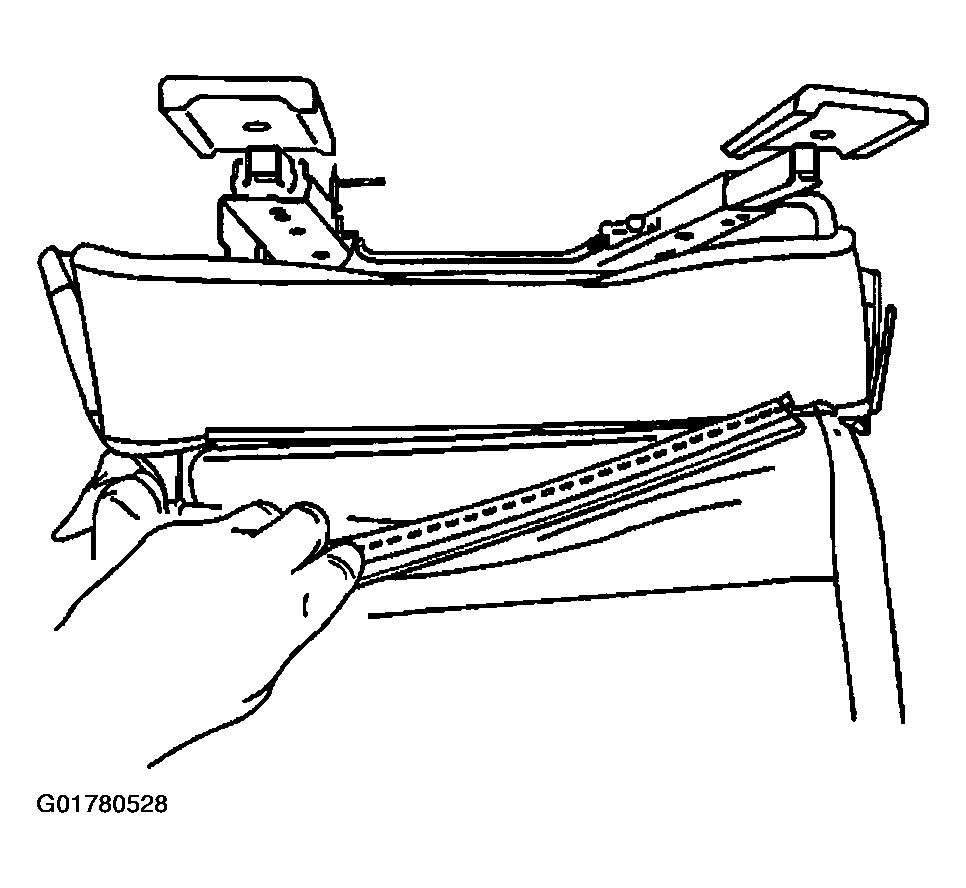

    Fig 1: Unfastening J-Hook Retainer
    G01780528Courtesy of GENERAL MOTORS CORP.
  4. Remove enough of the cover in order to gain access to the seat back bolts.

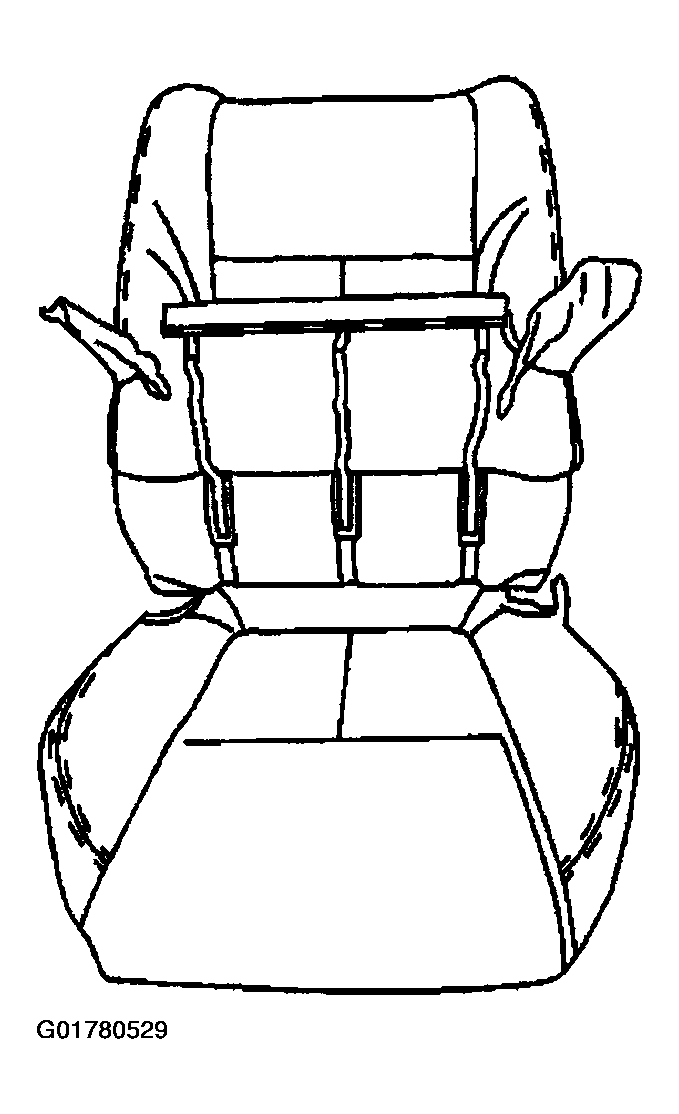

    Fig 2: Identifying Seat Cover
    G01780529Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back bolts from the seat back recliner.

    Remove the seat back from the seat back recliner.

    Fig 3: Removing Seat Back
    G01780530Courtesy of GENERAL MOTORS CORP.
