Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the retainer from the base of the recliner handle using a small flat-bladed tool.
  2. Remove the recliner handle from the seat pulling from the recliner shaft.

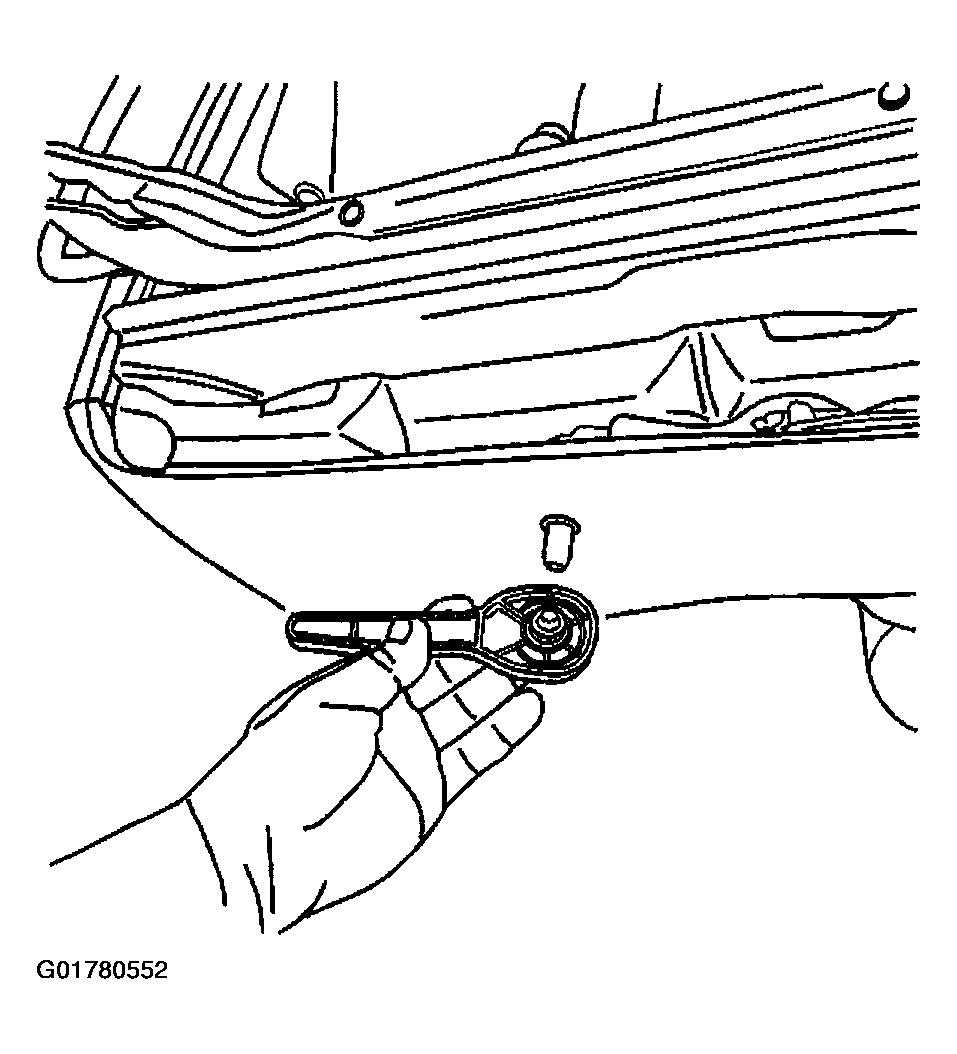

    Fig 1: Removing Recliner Handle
    G01780552Courtesy of GENERAL MOTORS CORP.
