Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new retainer clip to the recliner handle, if required.
  2. Position the recliner handle to the recliner shaft.
  3. Install the retainer handle to the shaft pressing into place until the retainer clip is fully seated.

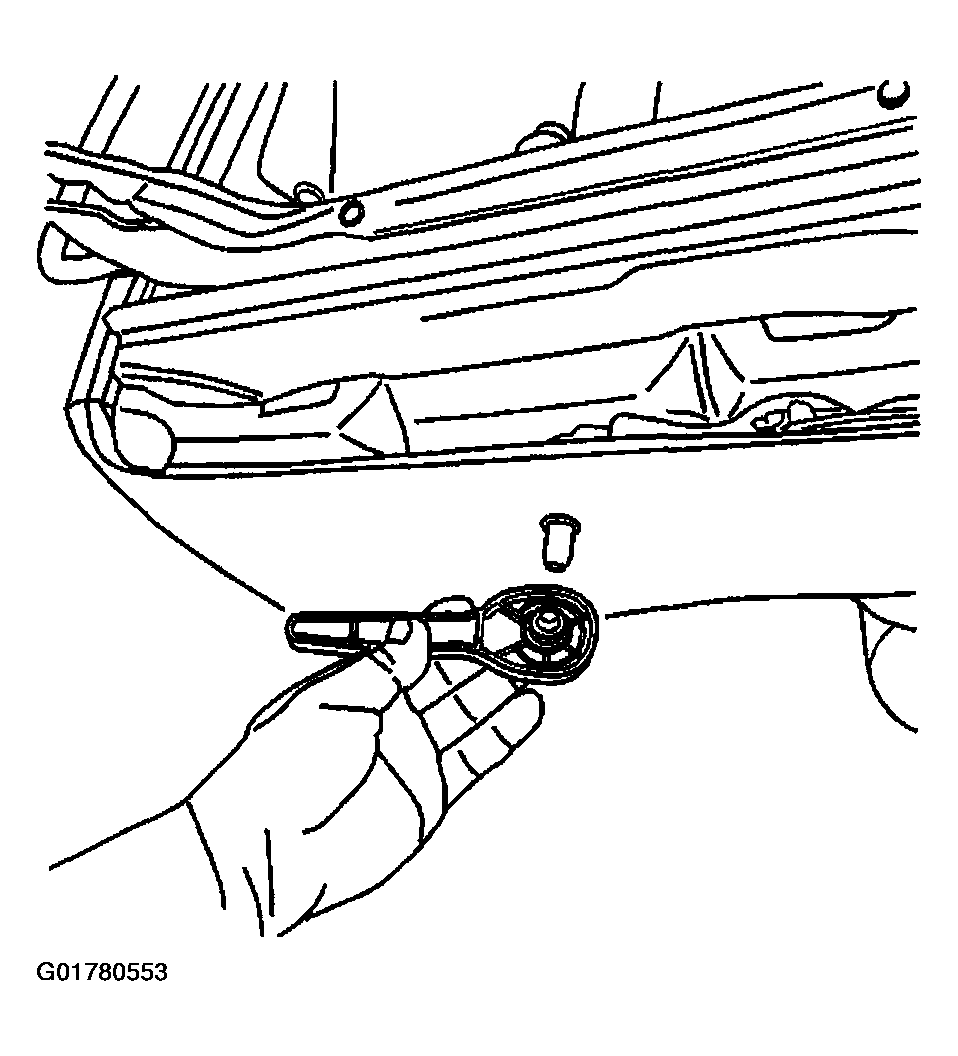

    Fig 1: Installing Recliner Handle
    G01780553Courtesy of GENERAL MOTORS CORP.
