Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to Seat Replacement .
  2. Adjust the seat cushion cover and pad in order to access the seat back recliner cable. Refer to Seat Cushion Cover Replacement - Front .
  3. On the outer recliner perform the following steps:
    1. 3.1. Remove the cable conduit bracket bolt (3).
    2. 3.2. Rotate the cable conduit 90 degrees.
    3. 3.3. Remove the cable end (2) from the recliner (1).

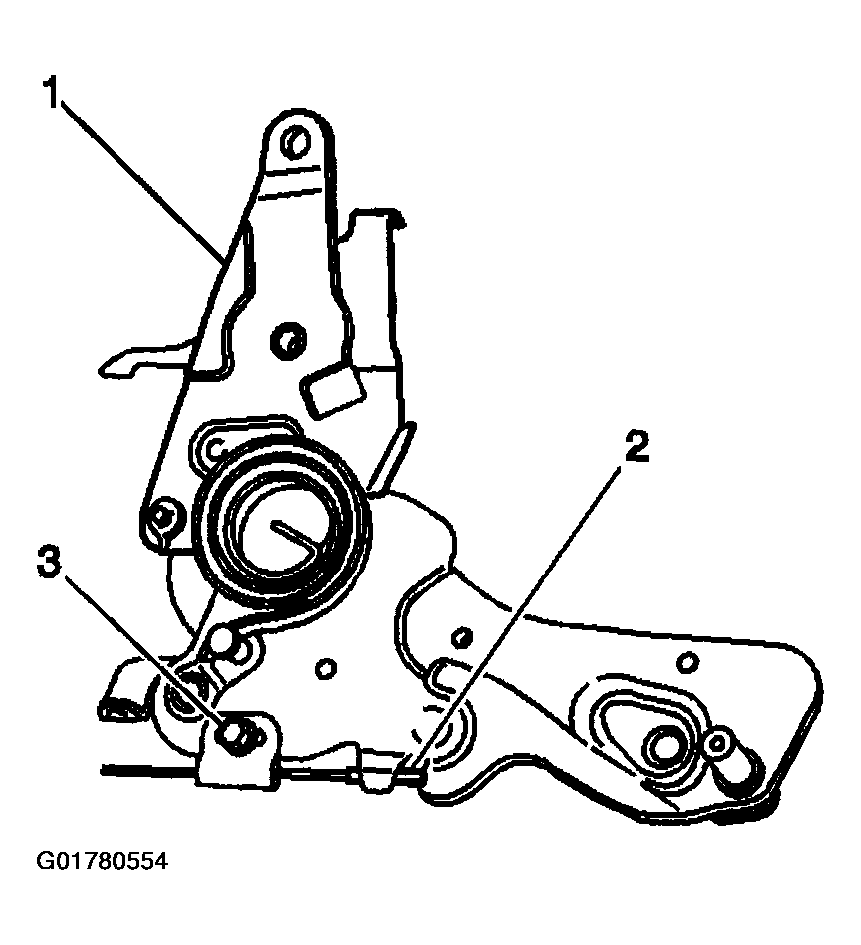

    Fig 1: Removing Outer Recliner Cable
    G01780554Courtesy of GENERAL MOTORS CORP.
  4. On the inner recliner, perform the following steps:
    1. 4.1. Remove the cable conduit (2) from the retainer in the recliner.
    2. 4.2. Rotate the cable 90 degrees.
    3. 4.3. Remove the cable end (1) from the recliner (3).
  5. Remove the seat back recliner cable from the front seat frame.

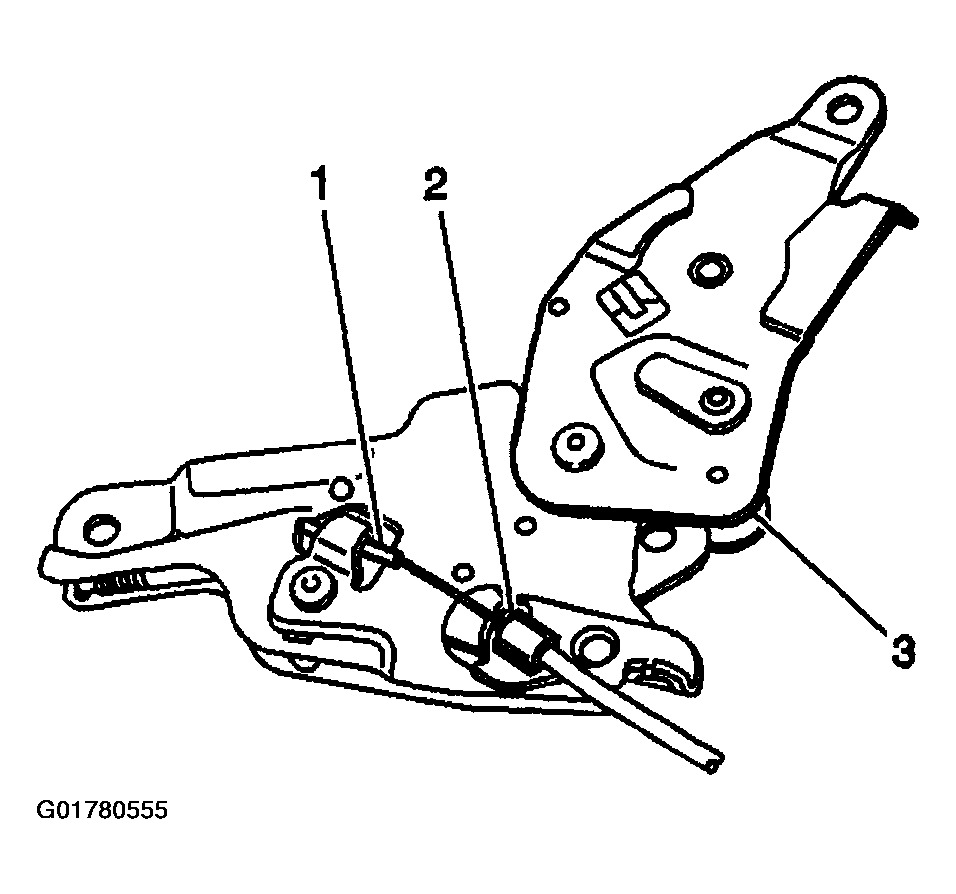

    Fig 2: Removing Seat Back Recliner
    G01780555Courtesy of GENERAL MOTORS CORP.
