Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Position the seat back recliner cable to the seat frame.

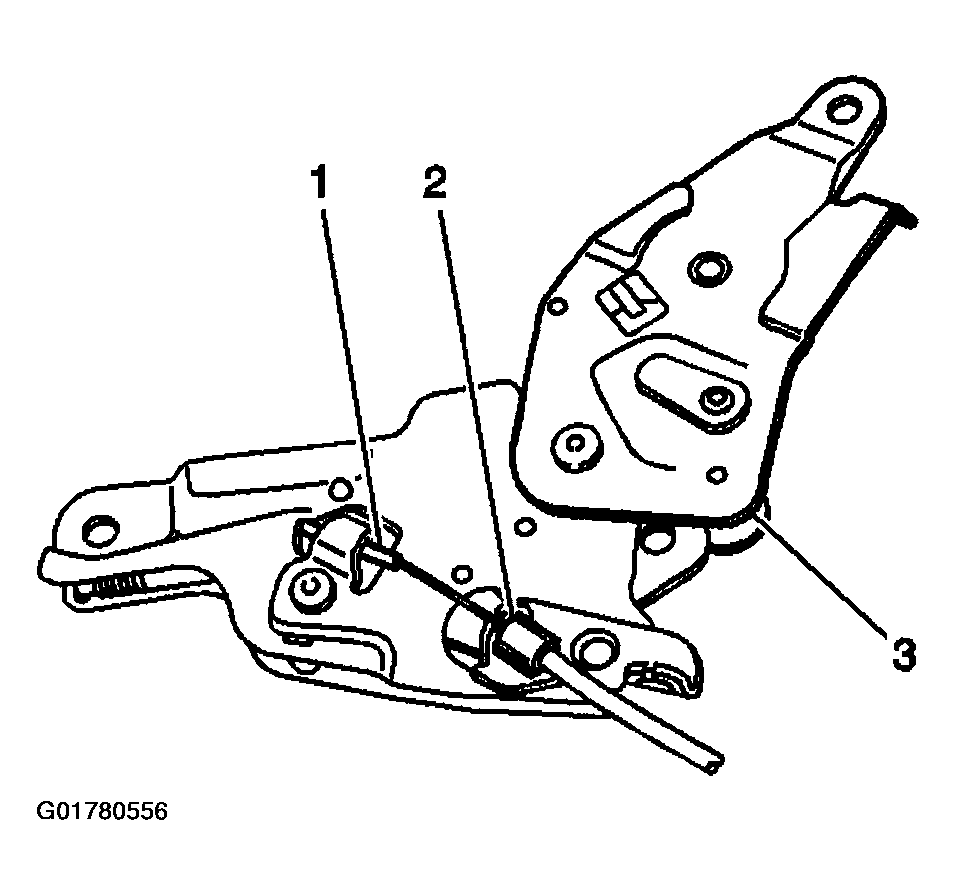

On the inner recliner, perform the following steps:
1. 2.1. Install the cable end (1) to the recliner (3).
2. 2.2. Rotate the cable 90 degrees.
3. 2.3. Install the cable conduit to the retainer in the recliner (3).

  Fig 1: Installing Seat Back Recliner
  Courtesy of GENERAL MOTORS CORP.

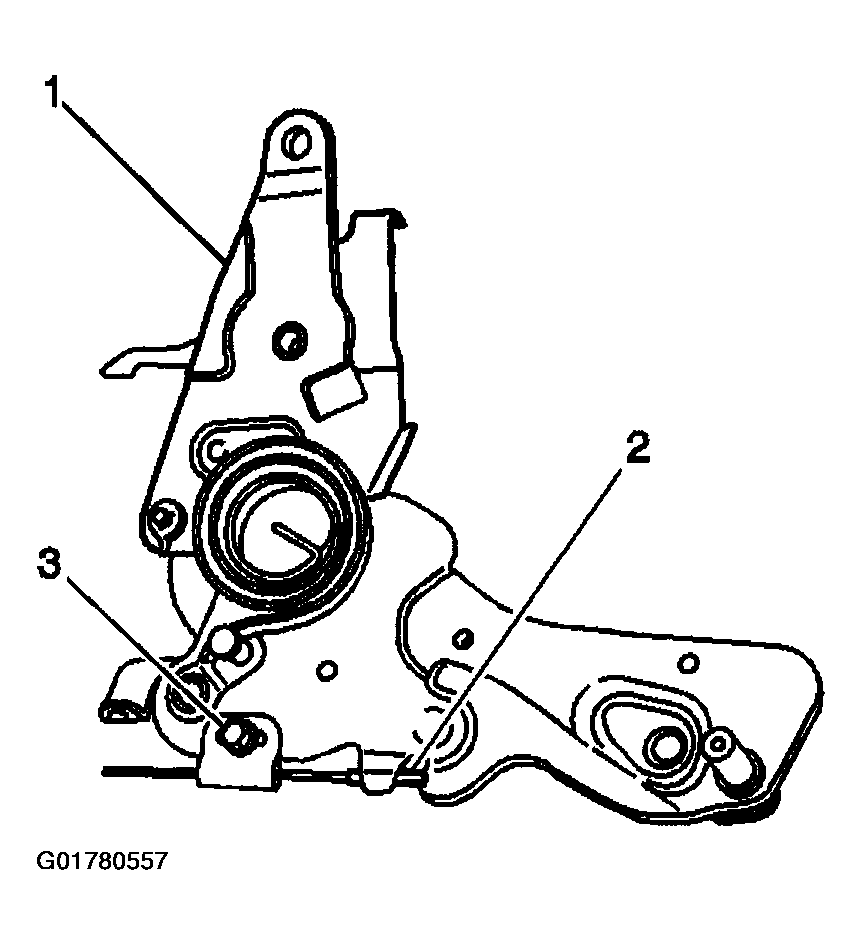

On the outer recliner, perform the following steps:
CAUTION: Refer to FASTENER NOTICE .
1. 3.1. Install the cable end (2) to the recliner.
2. 3.2. Rotate the cable conduit 90 degrees.
3. 3.3. Install the cable conduit bracket bolt (3).
Tighten

Tighten the bolt to 4 N.m (35 lb in).
Adjust the seat cushion cover and pad to a desired appearance. Refer to Seat Cushion Cover Replacement - Front .
Install the front bucket seat. Refer to Seat Replacement .

Fig 2: Installing Outer Recliner Cable
Courtesy of GENERAL MOTORS CORP.
