Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .
  2. Remove the stationary rear seat back. Refer to Seat Back Replacement - Front  .
  3. Remove the hog rings retainer from seat back rear cover carpet.
  4. Remove the seat back rear cover carpet from the rear seat back.
  5. Remove the hog ring retainers from the seat back frame tabs.

    Important:  The hook and loop strips retain the seat back cover to the seat back pad. First remove the cover from the lower edge of the seat back pad. Then roll the cover up and off the upper edge.

  6. Remove the seat back cover from the seat back pad.

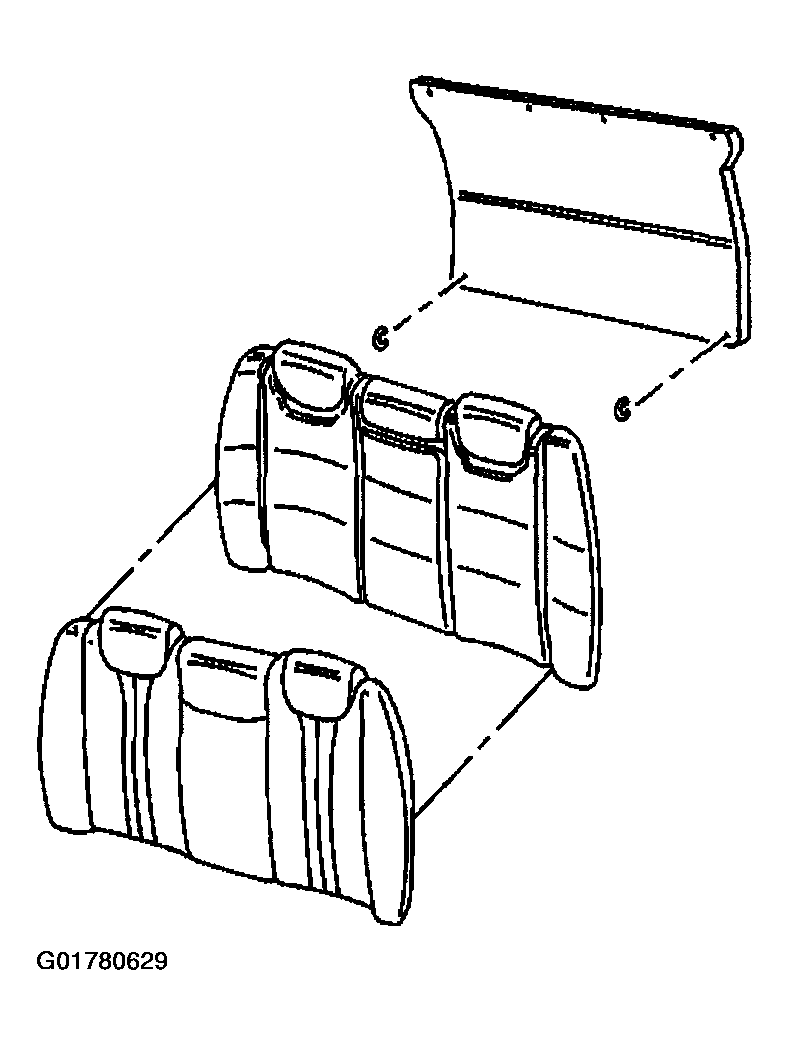

    Fig 1: Removing Seat Back Pad
    G01780629Courtesy of GENERAL MOTORS CORP.
