Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back cover to the seat back pad.
  2. Install the hog ring retainers to the seat back frame tabs.
  3. Use firm hand pressure in order to fasten the hook and loop retainers, securing the rear seat back covers to the pad.
  4. Install the seat back rear cover carpet to the seat back.
  5. Install the hog ring retainers to the seat back rear cover carpet.
  6. Install the stationary rear seat back. Refer to Seat Back Replacement - Front  .
  7. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .

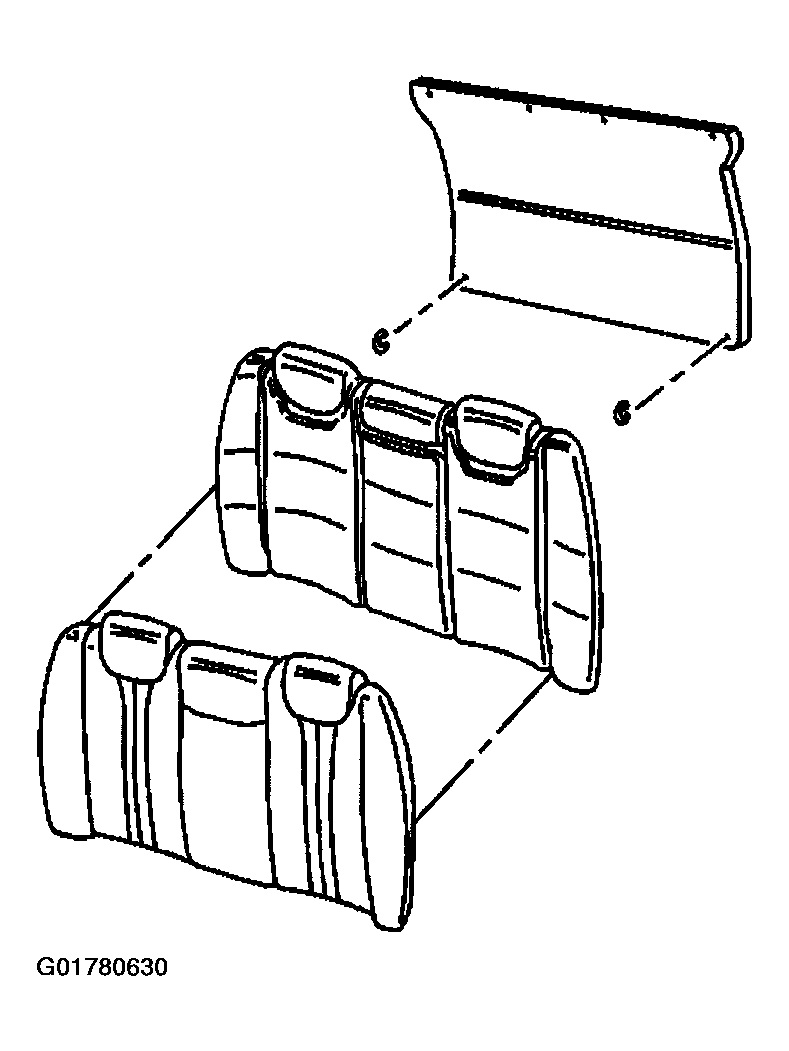

    Fig 1: Installing Seat Back Pad
    G01780630Courtesy of GENERAL MOTORS CORP.
