Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the seat back pad from the seat back frame.

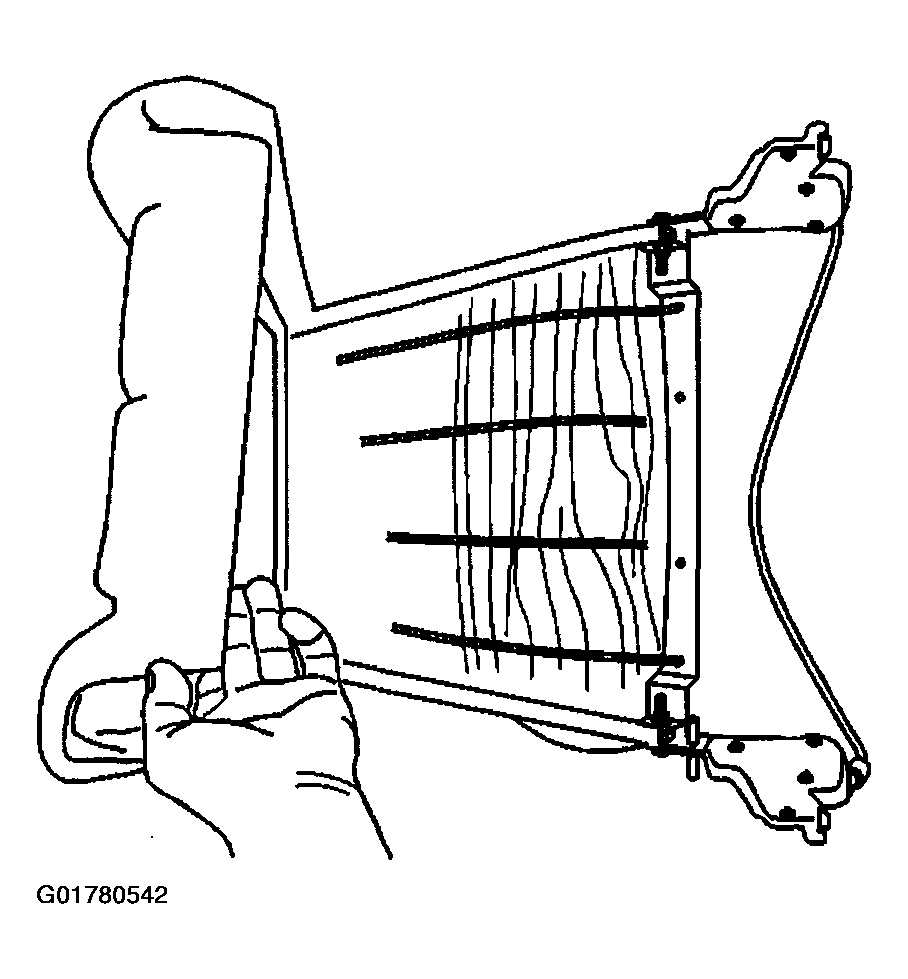

    Fig 1: Removing Front Seat Back Pad
    G01780542Courtesy of GENERAL MOTORS CORP.
