Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. With a small flat-bladed tool release the retaining tabs for the seat back release handles.

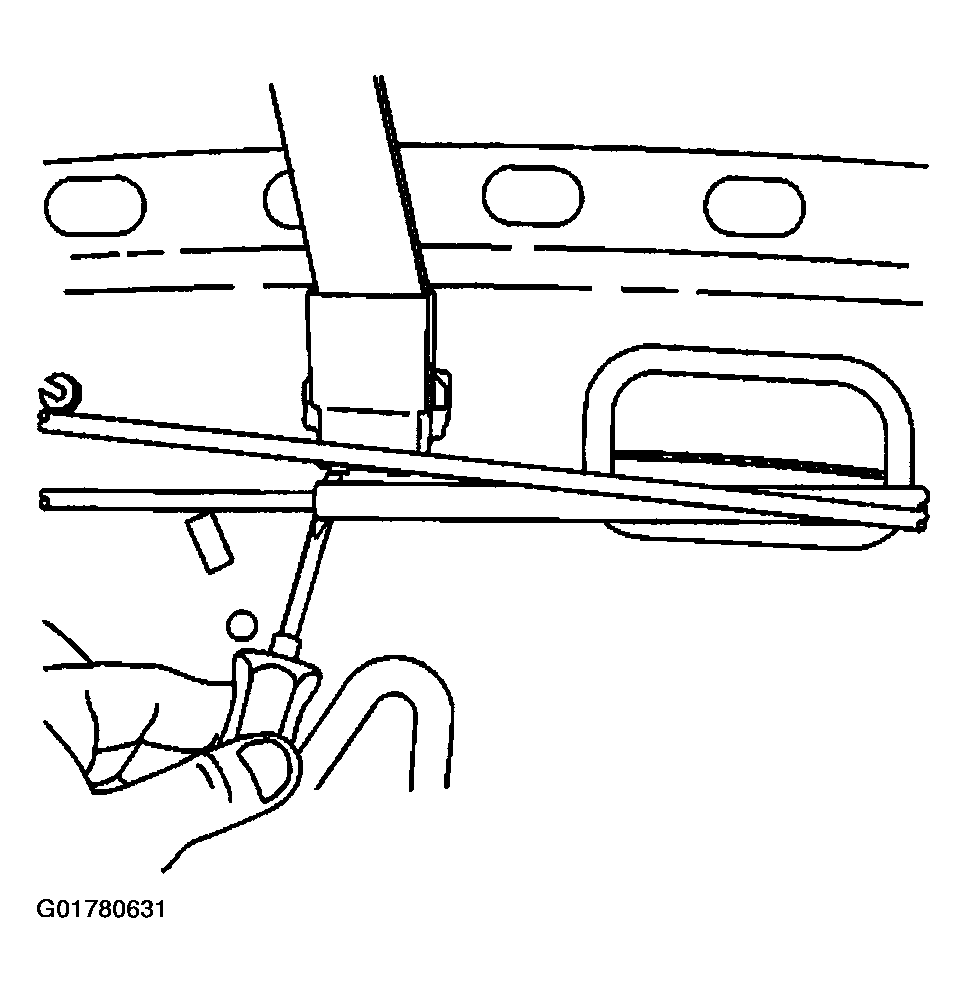

    Fig 1: Releasing Seat Back Release Handles Retaining Tabs
    G01780631Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  4. Remove the seat back release handles from the rear package shelf.

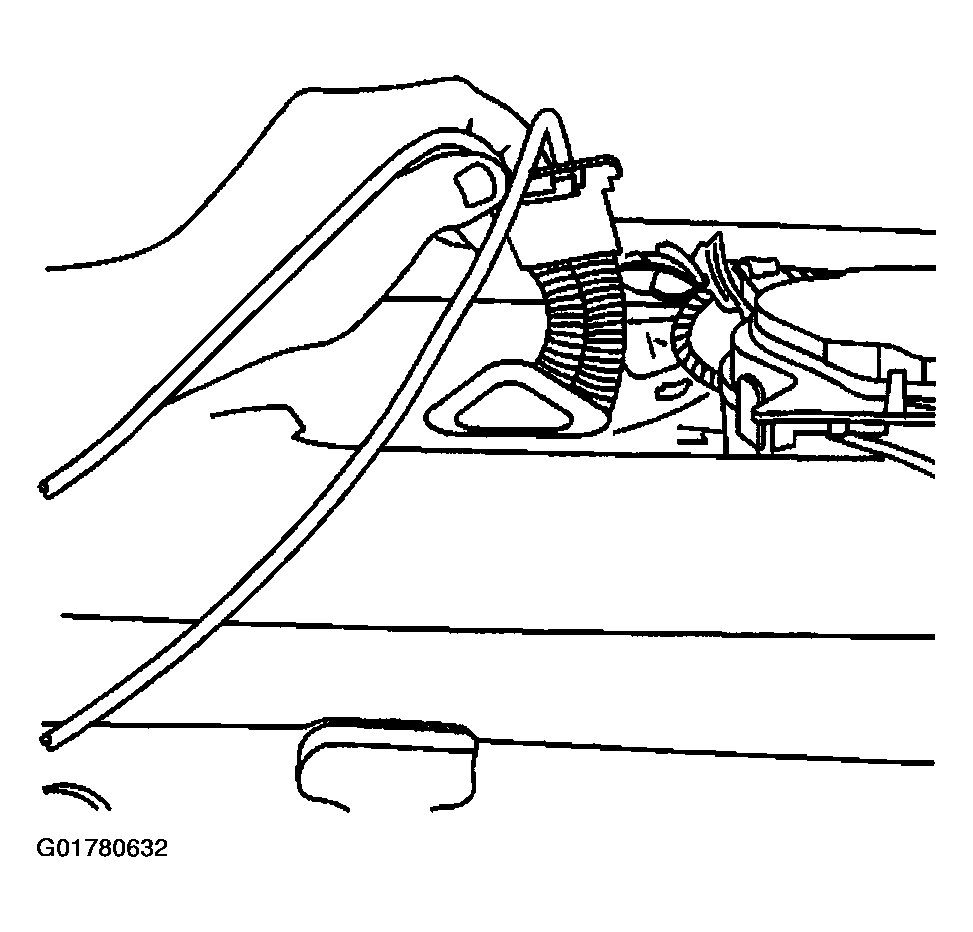

    Fig 2: Removing seat Back Release Handles
    G01780632Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back latch bolts from the latch.
  6. Remove the seat back latch from the rear package shelf.
    Fig 3: Removing Seat Back Latch
    G01780633Courtesy of GENERAL MOTORS CORP.
