Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear .
  2. Remove the stationary rear seat back. Refer to Seat Back Replacement - Rear .
  3. Remove the (stationary) rear seat back from the vehicle.
  4. Remove the hog rings from the rear seat back cover carpet.
  5. Remove the seat back cover carpet from stationary rear seat back.
  6. Remove the hog ring retainers from the seat back frame tabs.

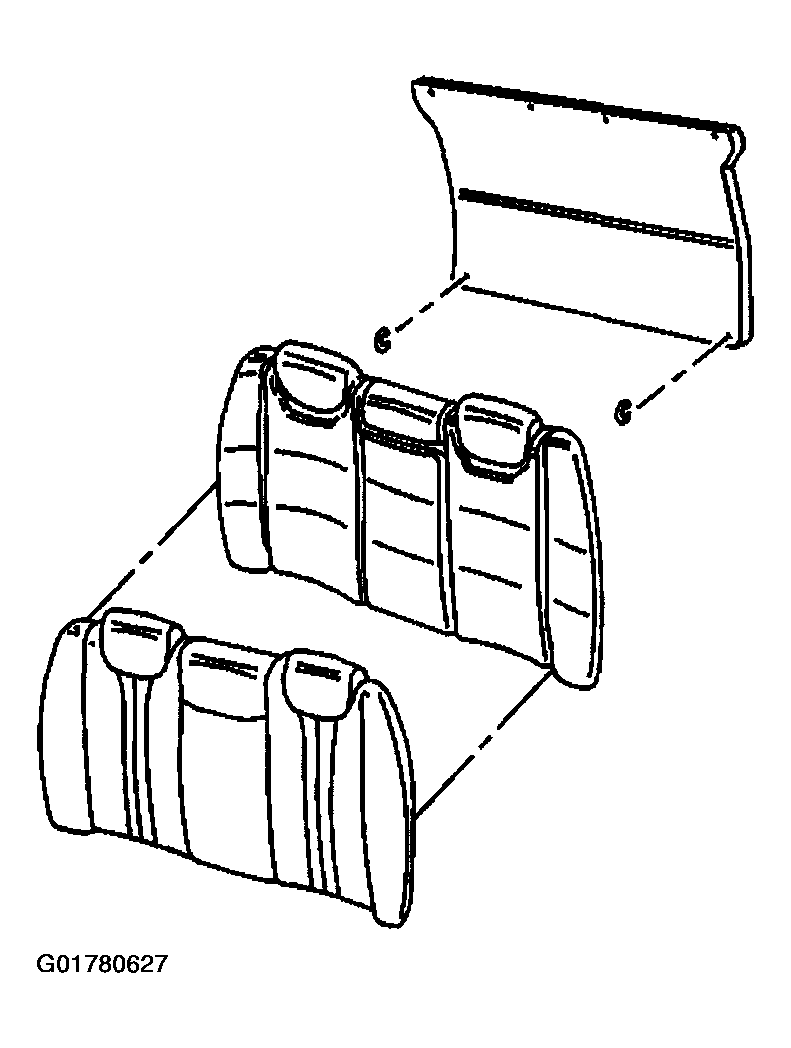

    Fig 1: Removing Seat Back Cover
    G01780627Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear seat back drawstrings from the seat back frame tabs.

    Important:  The hook and loop strips retain the cover to the pad. First, remove the cover from the lower edge of the pad. Then roll the cover up and off the upper edge.

  8. Remove the cover from the pad.
