Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back cover to the seat back pad.
  2. Pull the drawstrings.
  3. Attach the drawstring hooks to the opening in the seat back frame tabs.
  4. Install the hog ring retainers to the seat back frame tabs.
  5. Install the seat back rear cover carpet.
  6. Install the hog ring retainers to the seat back rear cover.
  7. Install the stationary rear seat back. Refer to Seat Back Replacement - Rear  .
  8. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .

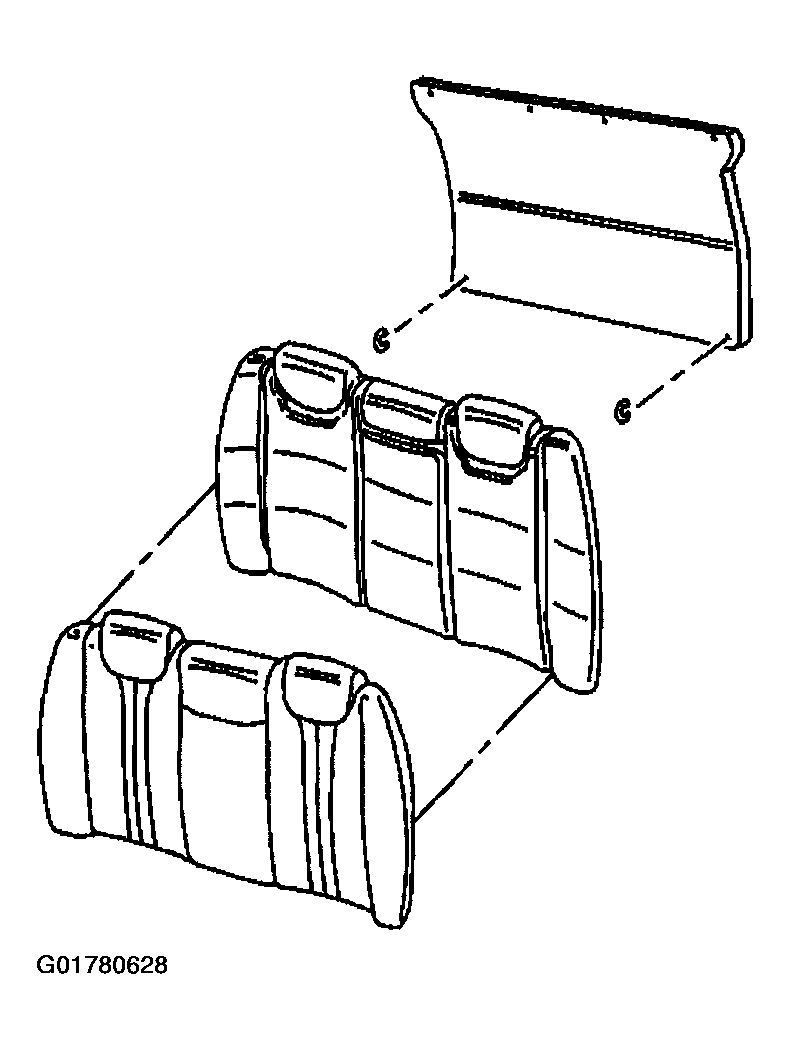

    Fig 1: Installing Seat Back Cover
    G01780628Courtesy of GENERAL MOTORS CORP.
