Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to Seat Replacement .
  2. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  3. Unfasten the J-hook retainer at the bottom of the seat back cover.

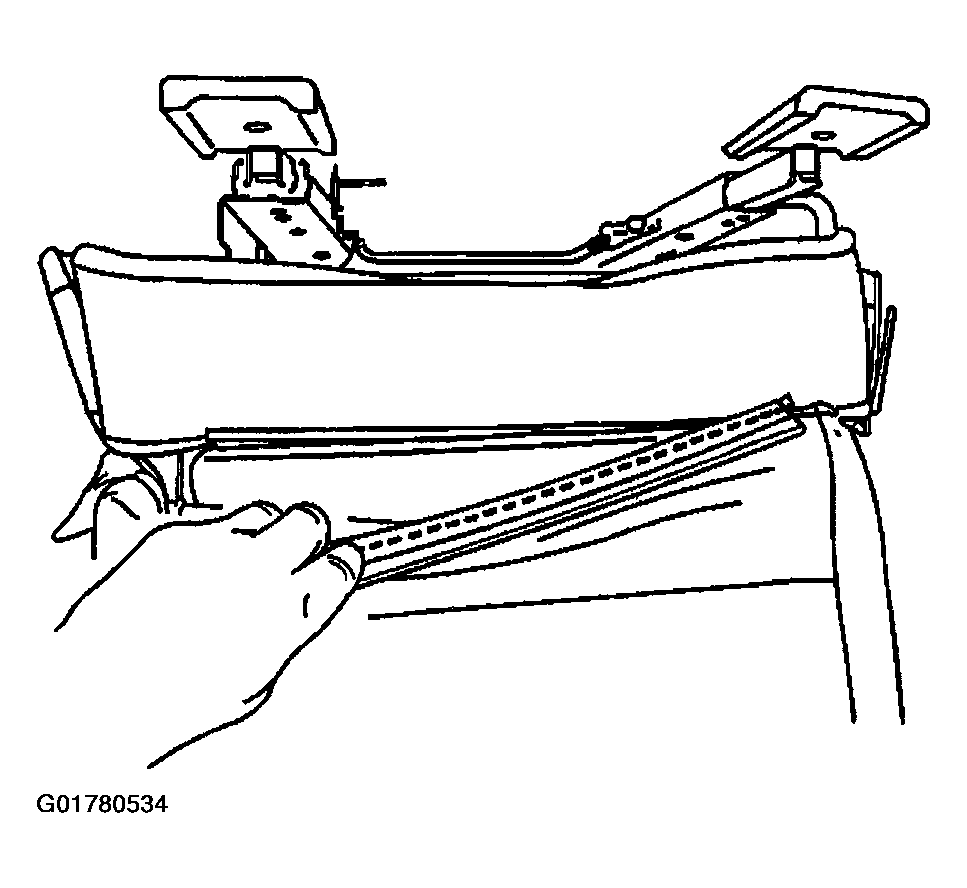

    Fig 1: Unfastening J-Hook Retainer
    G01780534Courtesy of GENERAL MOTORS CORP.
  4. Pull back the rear of the seat cushion cover in order to access the loop tab on the cover.
  5. Remove the loop tab from the seat back recliner bolt.

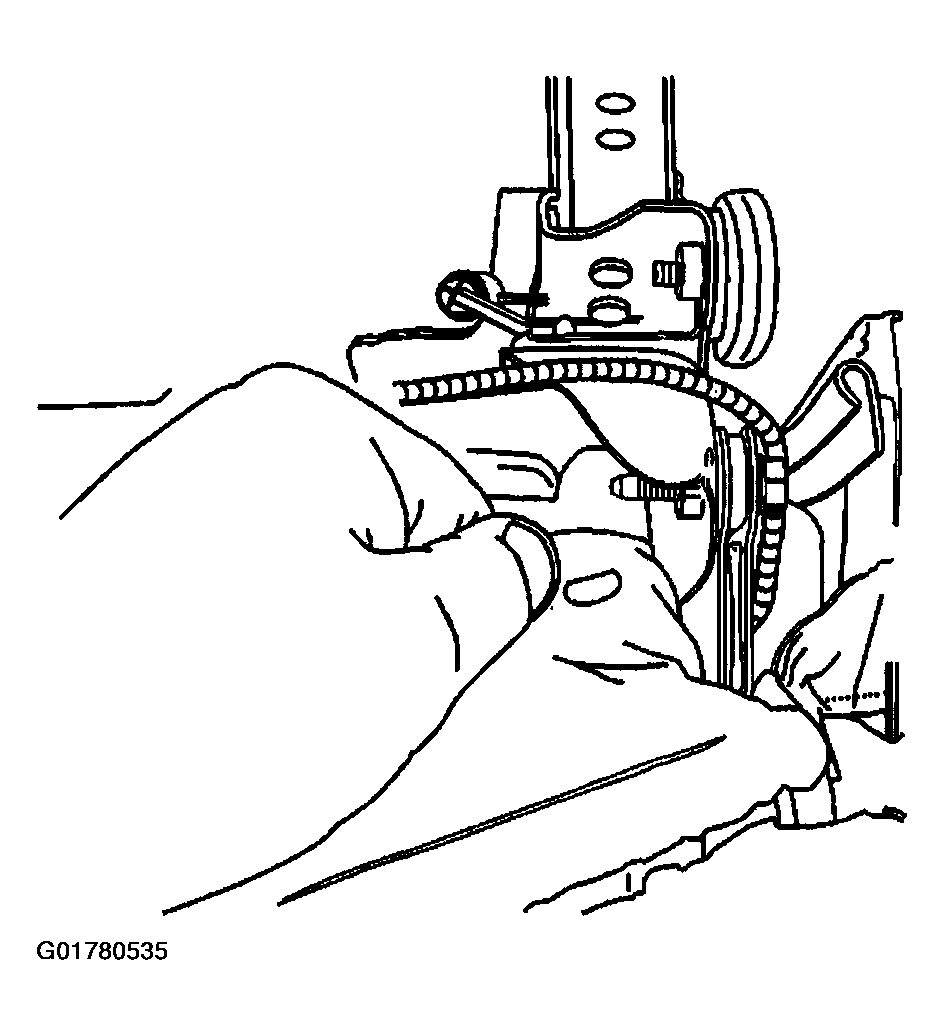

    Fig 2: Removing Loop Tab
    G01780535Courtesy of GENERAL MOTORS CORP.
  6. Pull out the seat back cover end flaps.

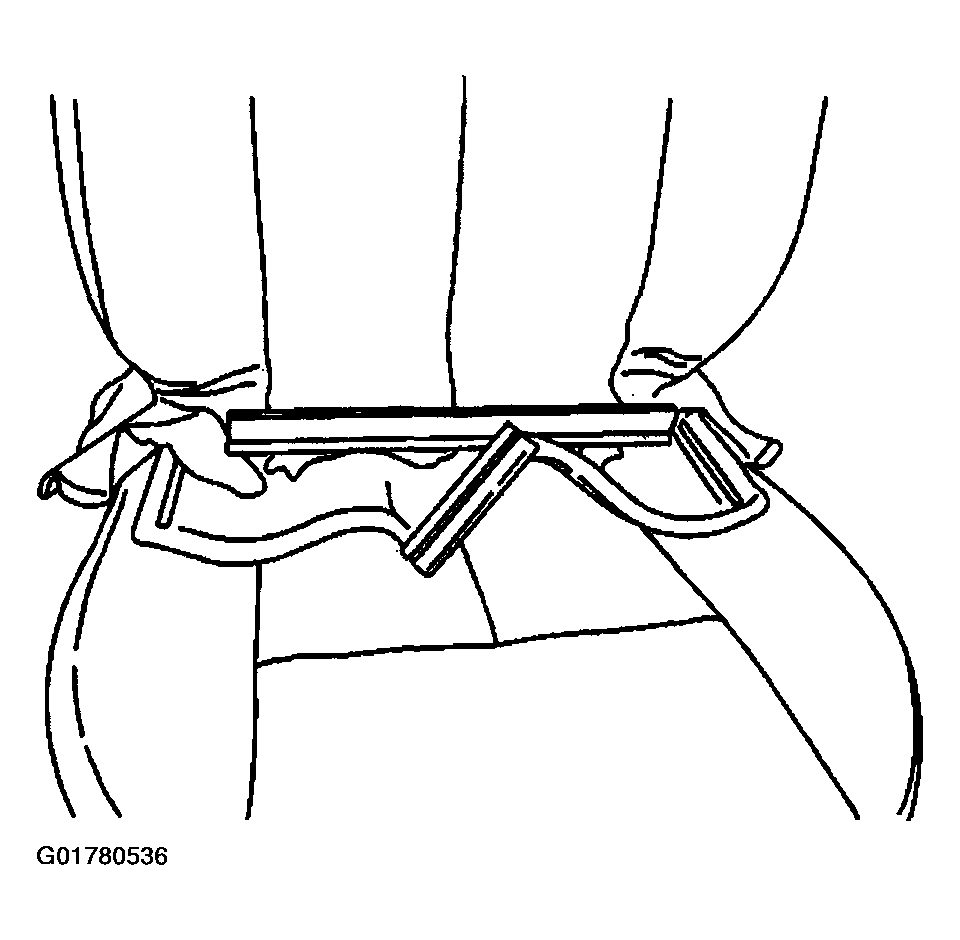

    Fig 3: Identifying Seat Back Cover End Flaps
    G01780536Courtesy of GENERAL MOTORS CORP.
  7. Unfasten the hook and the loop retainers which secure the seat back cover to the pad.
  8. Remove the seat back cover, by pulling the cover up and over the pad.
  9. Remove the head restraint retainers.
  10. Remove the seat back cover from the pad.

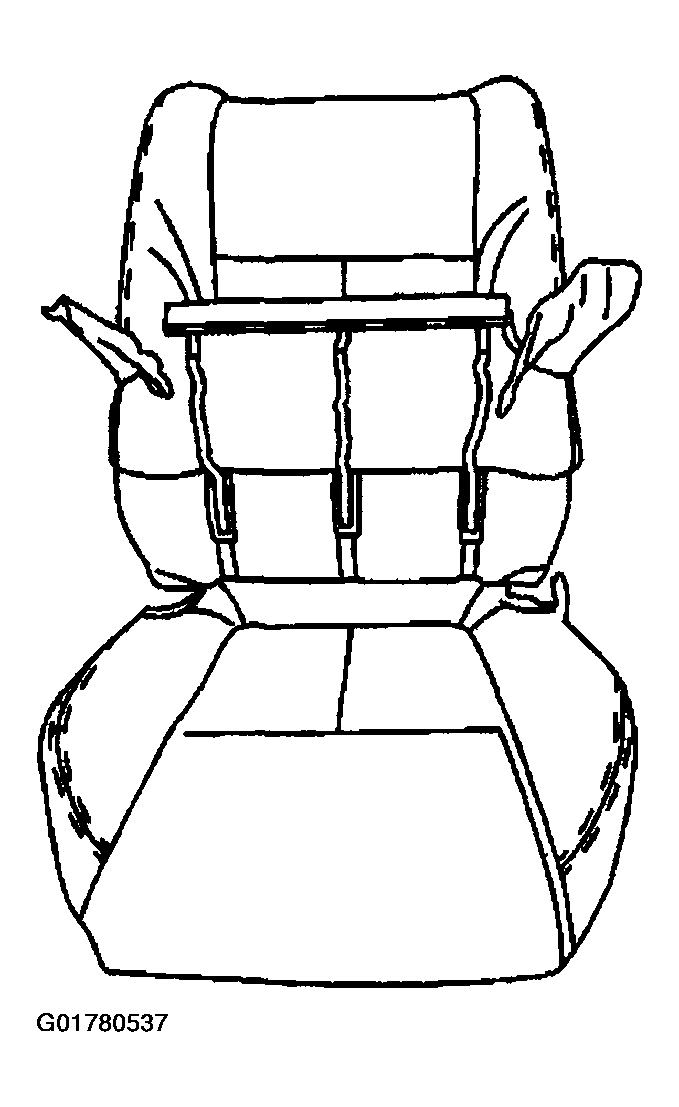

    Fig 4: Identifying Seat Back Cover
    G01780537Courtesy of GENERAL MOTORS CORP.
