Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear folding seat back. Refer to Seat Back Replacement - Rear Split Folding .
  2. Remove the seat back center pivot bolts.
  3. Remove the seat back center pivot from the floor.

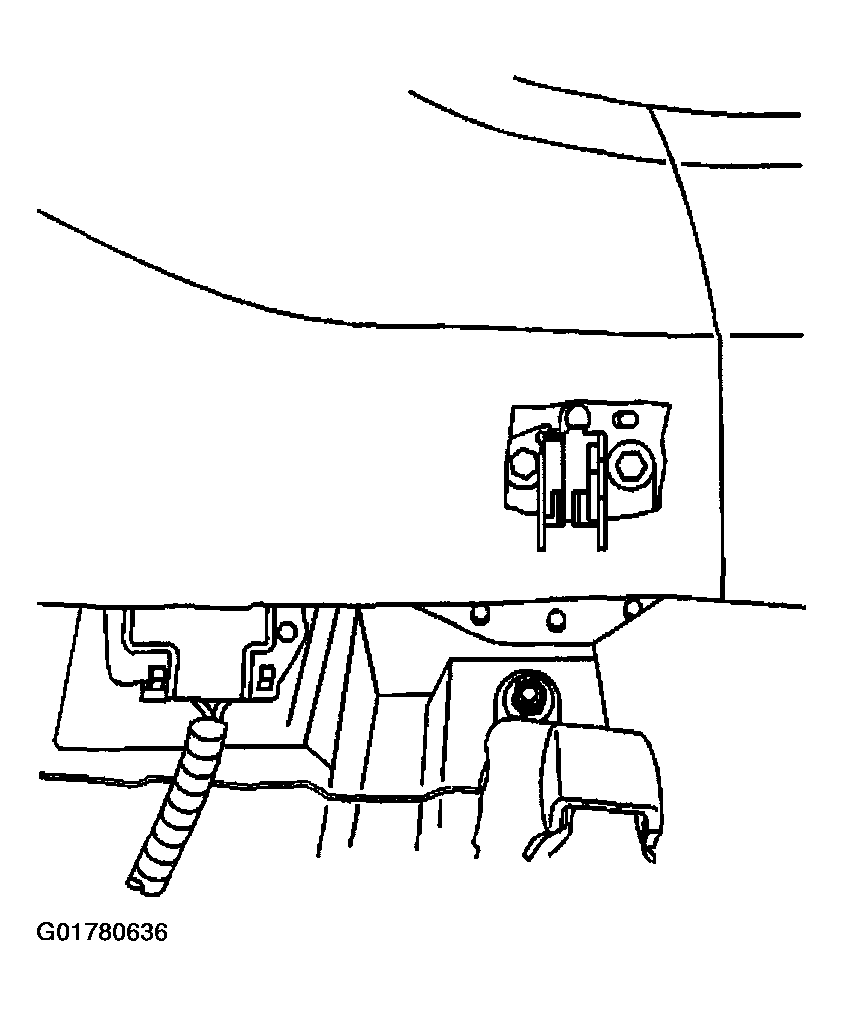

    Fig 1: Removing Seat Back Center Pivot
    G01780636Courtesy of GENERAL MOTORS CORP.
