Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back center pivot to the rear floor.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat back center pivot bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the rear folding seat back. Refer to Seat Back Replacement - Rear Split Folding  .

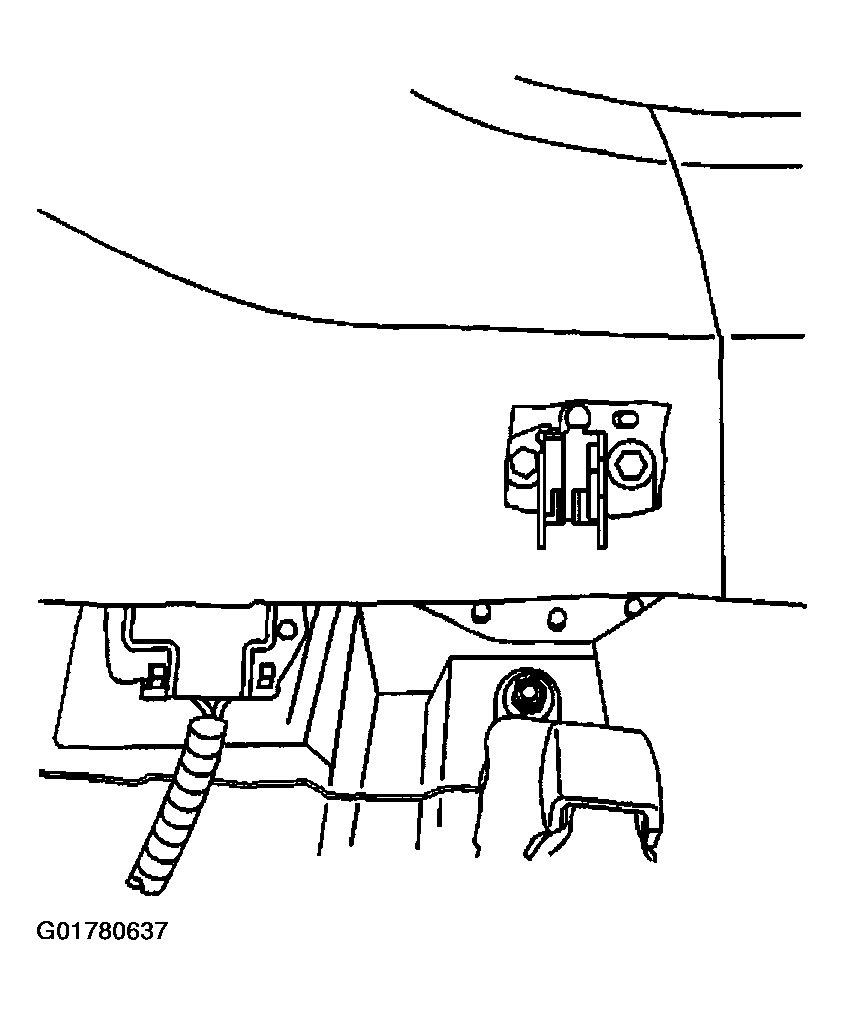

    Fig 1: Installing Seat Back Center Pivot
    G01780637Courtesy of GENERAL MOTORS CORP.
