Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the shoulder belt away from the rear seat back bolster area.
  2. Install the rear seat back bolster (2).
  3. Position and engage the T-hook into the access hole in the rear shelf panel.
  4. Pull forward on the top edge of the rear seat back bolster along the shelf panel in order to ensure that the attaching hook is properly engaged.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the rear seat back bolster bolt (3) into the lower U-bracket.

    Tighten

    Tighten the bolster bolt to 12 N.m (106 lb in).

  6. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear  .

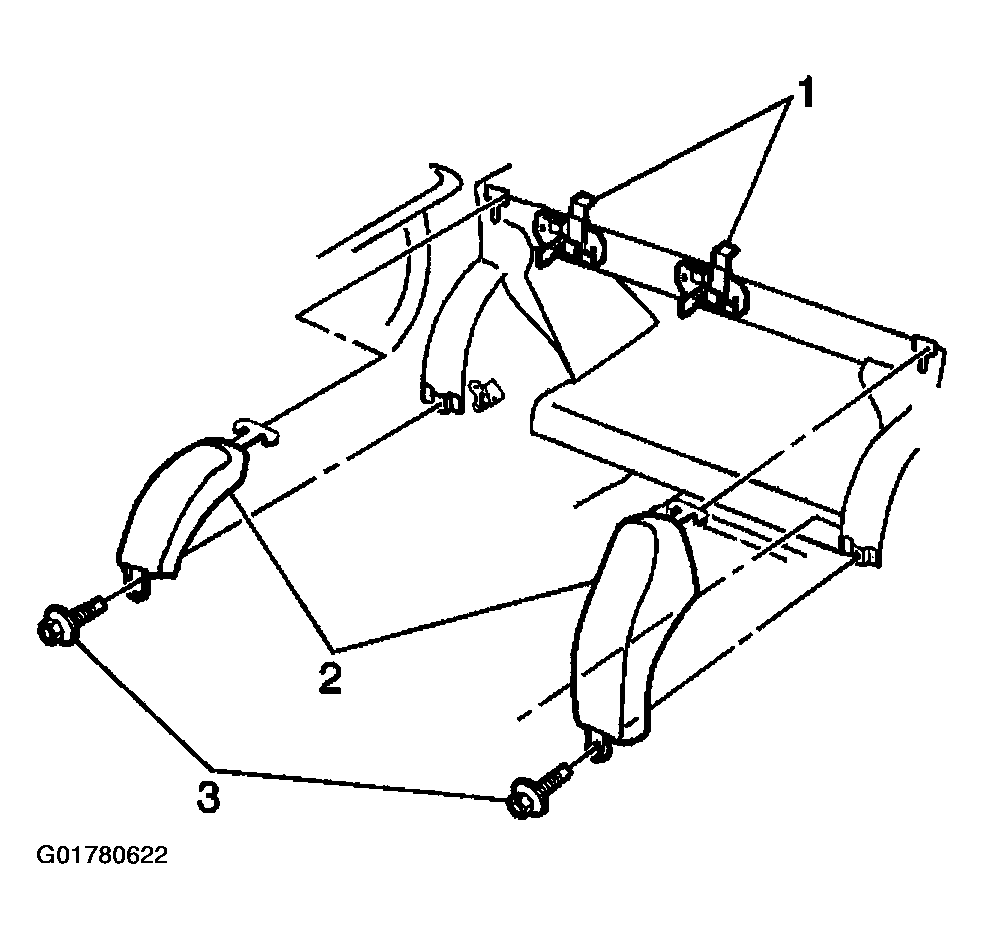

    Fig 1: Installing Rear Split Folding Seat Back Bolster
    G01780622Courtesy of GENERAL MOTORS CORP.
